Decorative Protection Stainless Steel Wire Rope Mesh

Prod Model:	AR-decorative
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Making Ability:	1000 Sqm a Day
Material:	SUS304
Hole Shape:	Diamond
Application:	Cages
Material Type:	Stainless Steel Wire
Wire Mesh Width:	1.5m
Technique:	Woven
Nickels:	8%
Certification:	ISO9001
Type:	Stainless Steel Wire Rope Mesh
Weave Technique:	Weave

Product Description

Product Description

Material: SUS302,304,316,316L,310,310S

 Woven type: plain, twill, dutch,5shaft

Wire diameter: 1/8", 3/32", 1/16", 3/64"

Usage : animal cage; aviary mesh, bird cagebird netting,  build

Advantage:

1. Excellent flexible perforance.

2. Virtually indestructible.

3. Most impacting-resistant and breaking resistantforce, most  resistingrain, snow,hurricane

4. High strength, strong toughness,free angles curving and fold, easy for transportation and installment.
 Anping County Anrun Stainless Steel Hardware Product Co., Ltd.
 Stainless Steel Wire Rope Fence Mesh  details


Stainless Steel Wire Rope Fence Mesh  material is produced by high quality stainless steel wire cable,  the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of Stainless Steel Wire Rope Fence Mesh have 7 x 7 and 7 x 19. All the material for producing Stainless Steel Wire Rope Fence Mesh  was imported form South Korea and Japan which have super quality. The standard Stainless Steel Wire Rope Fence  Mesh diameter includes 1/8", 3/32", 1/16", and 3/64",  the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

The specifications of Stainless Steel Wire Rope Fence Mesh for your reference as follows:

Wire Rope Construction	Min.Breaking Load KN	Wire rope Diam mm	Aperture mm	Grade 304/316
7x19	7.38	3.2	150x260	√
7x19	7.38	3.2	120x208	√
7x19	7.38	3.2	100x173	√
7x19	7.38	3.2	90x156	√
7x7	4.18	2.4	150x260	√
7x7	4.18	2.4	120x208	√
7x7	4.18	2.4	100x173	√
7x7	4.18	2.4	90x156	√
7x7	4.18	2.4	80x139	√
7x7	3.17	2.0	150x260	√
7x7	3.17	2.0	120x208	√
7x7	3.17	2.0	100x173	√
7x7	3.17	2.0	90x156	√
7x7	3.17	2.0	80x139	√
7x7	3.17	2.0	70x121	√
7x7	3.17	2.0	60x104	√
7x7	2.17	1.6	120x208	√
7x7	2.17	1.6	100x173	√
7x7	2.17	1.6	80x139	√
7x7	2.17	1.6	60x104	√
7x7	2.17	1.6	51x87	√
7x7	1.22	1.2	80x139	√
7x7	1.22	1.2	60x104	√
7x7	1.22	1.2	50x87	√
7x7	1.22	1.2	40x69	√

We invite you to consider the Stainless Steel Wire Rope Fence Mesh  as a material to be incorporated in your design scheme. The specification for your reference as follows:


cable diameter		mesh opening size		norninal break
inch	mm	inch	mm	lbs.
1/8	3.2	4.75x4.75	120x120	1600
1/8	3.2	4x4	102x102	1600
1/8	3.2	3.55x3.55	90x90	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3.55x3.55	90x90	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2.4x2.4	60x60	920
3/32	2.4	2x2	51x51	920
5/64	2.0	3x3	76x76	676
5/64	2.0	2.4x2.4	60x60	676
5/64	2.0	2x2	51x51	676
5/64	2.0	1-1/2x 1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x 1-1/2	38x38	480
1/16	1.6	1.2x1.2	30x30	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x 1-1/2	38x38	270
3/64	1.2	1.2x1.2	30x30	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270

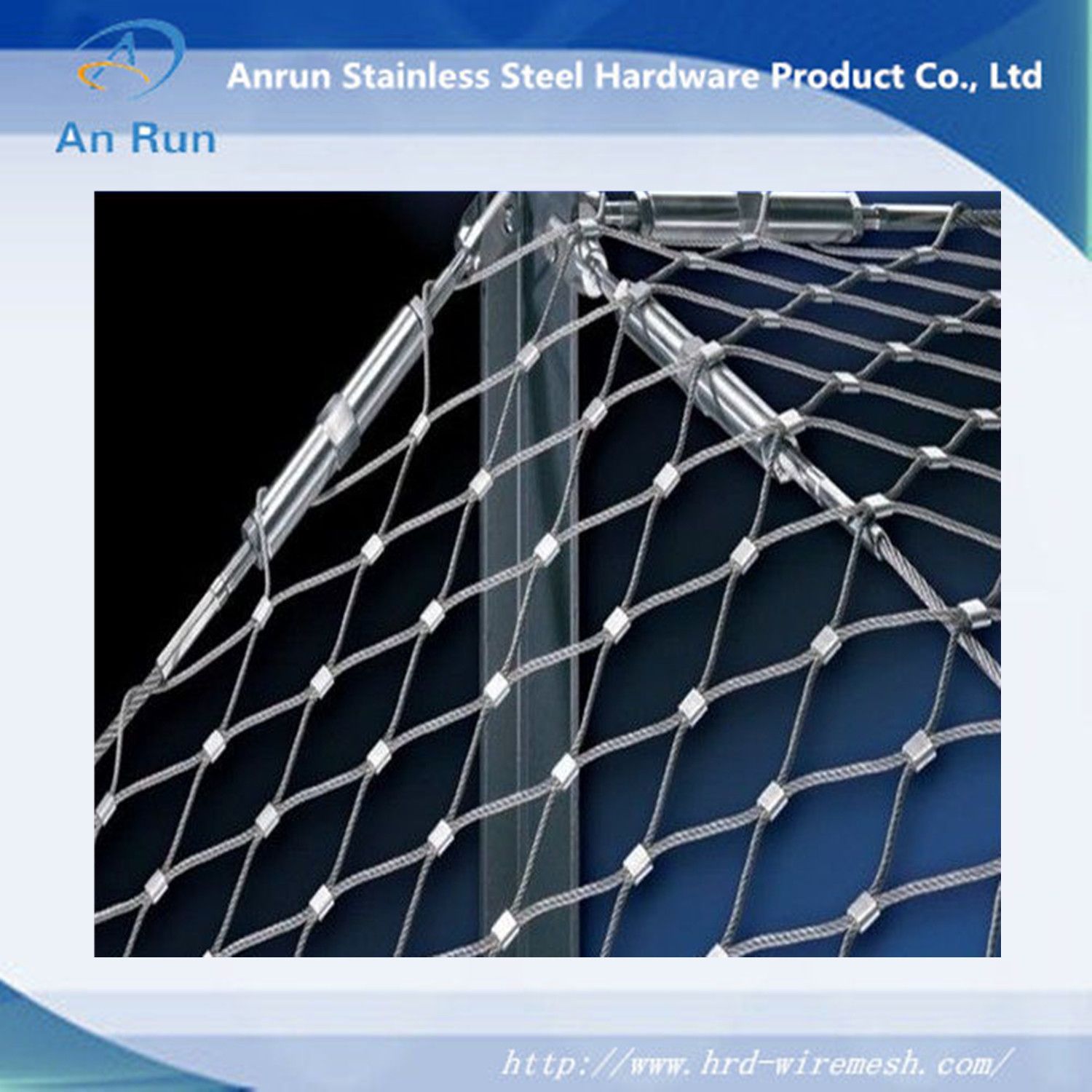

The Stainless Steel Wire Rope Fence Mesh  ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

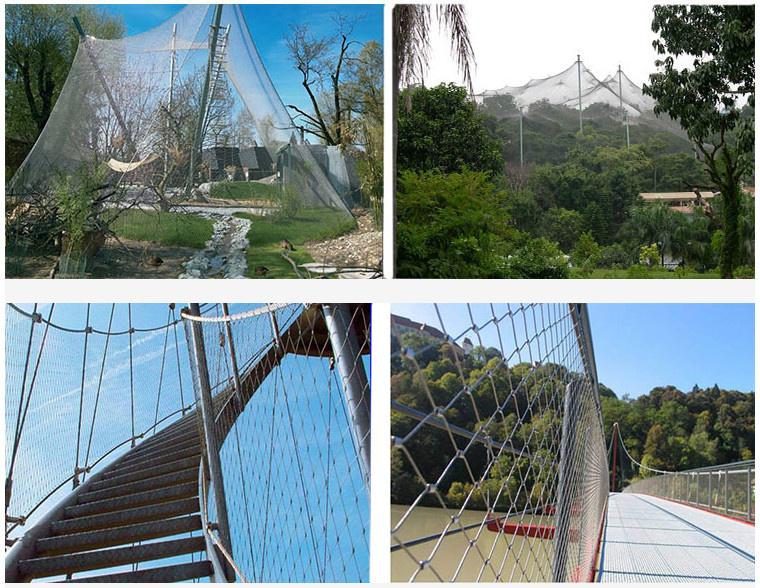

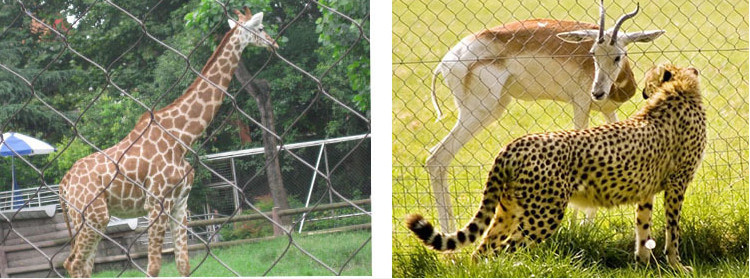

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. For the weave opening, we can infinitely customizable to meet your exhibits exact specifications and we assure their complete security.



Let us begin to communicate immediately , Contact us !!

Our Services
1. Professtional
Over 15 years' experience in wire mesh industry and export more than 70 countries, Anrun Metal Mesh is the real professional manufacture.

2.Product Quality
The quality of products is the key of enterprise survival. Anrun Stainless Steel Hardware Product Co., Ltd is certificated manufacturer by ISO9001:2008.

Each roll of our mesh will be inspected based on ASTM E2016-06 standard and have the Inspection Certificate.

3. Reasonable Price
We'll exact control each producing process to reduce cost for our customers. After clients receive the quotation, we'll show you the rationality of the price and the difference between our products and other supplier's products.

4. Delivery Time
The customer's needs is delivering on time, rather than an excuse. We'll make a production plan before producing, and the sales will regularly inform the production schedule and process to the customer.

5. Communication
English is the basic and other languages can be understand. All customer's e-mail will be replied within 2 hours at working hours and must be replied within 12 hours at non-working hours.

6. Customized
Personalized, professional service: we can provide different programs according to customers' requirement, thus make customers choose the best and most approprite one.
