| Prod Model: |
DGH-49 |
| Engine: |
49cc, Single cylinder, air cooling, 2 stroke |
| Oil Box: |
1.20L |
| Net Weight: |
17.50kg |
| Mixture Ratio: |
25/1 |
| Specific Fuel: |
≤500g/kw.h |
| Max Power And Speed: |
1.25KW/7000r/min |
| Noise: |
less than 104dB(A) |
| Impact Number: |
770-1500min-1 |
| Impact Energy: |
20~55J |
| Speed: |
3000~7000r/min |

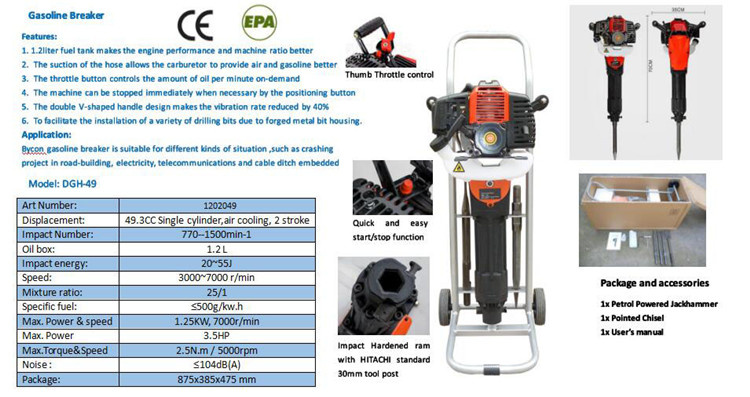

Product Description

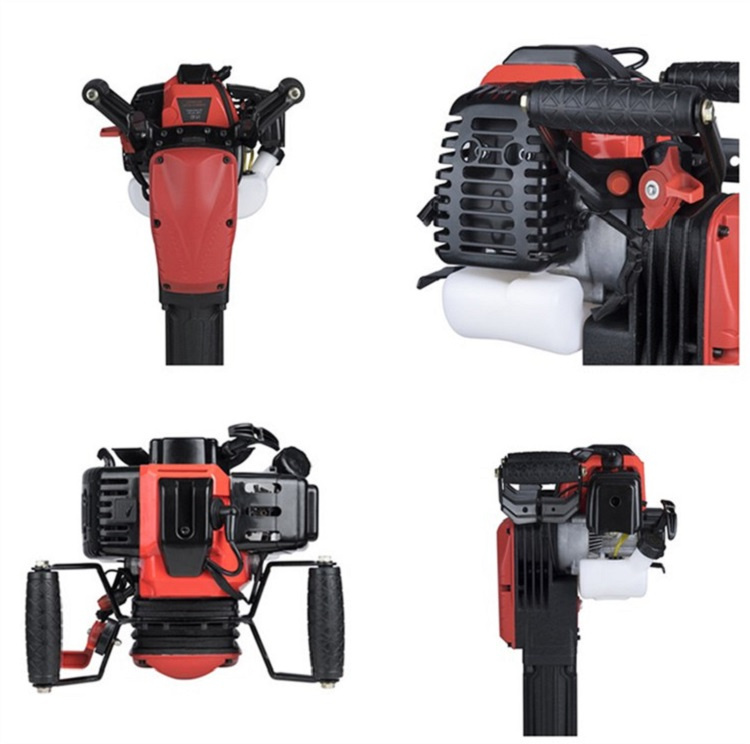

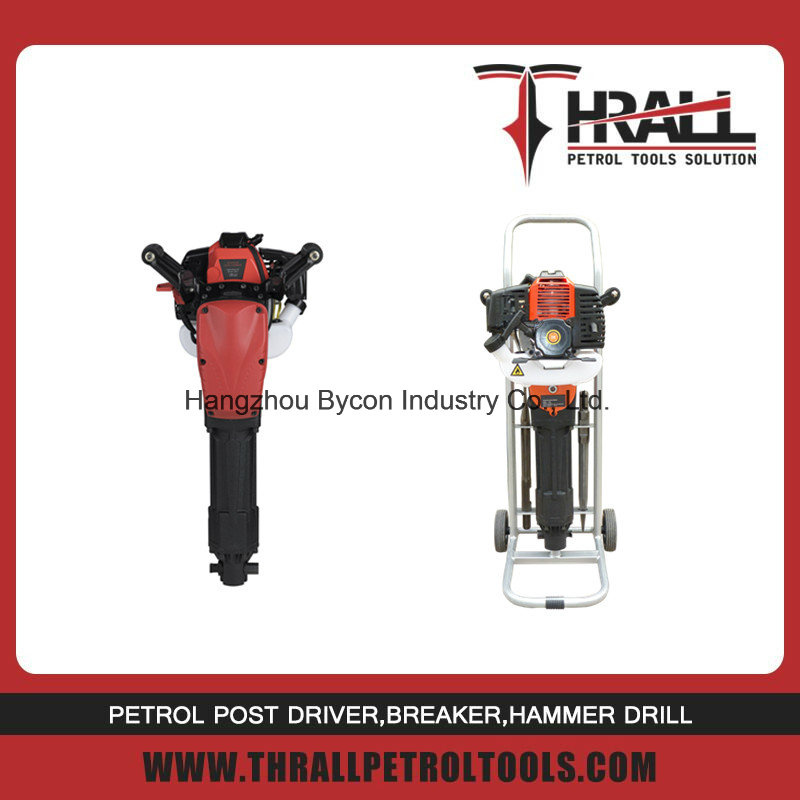

DGH-49 gasoline rock drilling machine gasoline jack hammer
Features: 1. 1.2liter fuel tank makes the engine performance and machine ratio better
2. The suction of the hose allows the carburetor to provide air and gasoline better
3. The throttle button controls the amount of oil per minute on-demand
4.. The machine can be stopped immediately when necessary by the positioning button
5. The double V-shaped handle design makes the vibration rate reduced by 40%
6. To facilitate the installation of a variety of drilling bits due to forged metal bit housing.Application:Bycon gasoline breaker is suitable for different kinds of situation ,such as crashing
project in road-building, electricity, telecommunications and cable ditch embedded.Specification:| Art Number | 1202049 |
| Displacement | 49.3CC Single cylinder,air cooling, 2 stroke |
| Impact Number | 770--1500min-1 |
| Oil box | 1.2 L |
| Impact energy | 20~55J |
| Speed | 3000~7000 r/min |
| Mixture ratio | 25/1 |
| Specific fuel | ≤500g/kw.h |
| Max. Power & speed | 1.25KW, 7000r/min |
| Max. Power | 3.5HP |
| Max.Torque&Speed | 2.5N.m / 5000rpm |
| Noise | ≤104dB(A) |
| Package | 875x385x475 mm |
