| Prod Model: |
DHP |
| Power Source: |
Hydraulic |
| Application: |
Steel Door Forming |
| Material: |
Aluminum, Ss, Ms, etc |
| Safety Protection: |
Photoelectric Protection |
| Electrical: |
Schneider |
| CNC Feeding System: |
Available |
| Worktable: |
Fixed |
| PLC: |
Omron |
Product Description

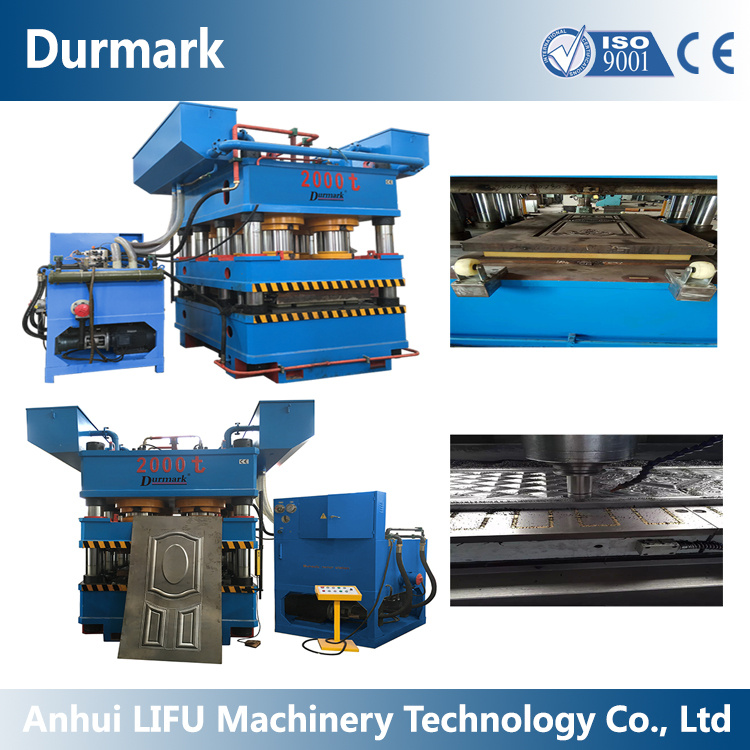

DHP-4000Ton Automatic Steel Door Stamping Machine, Door pattern forming machine

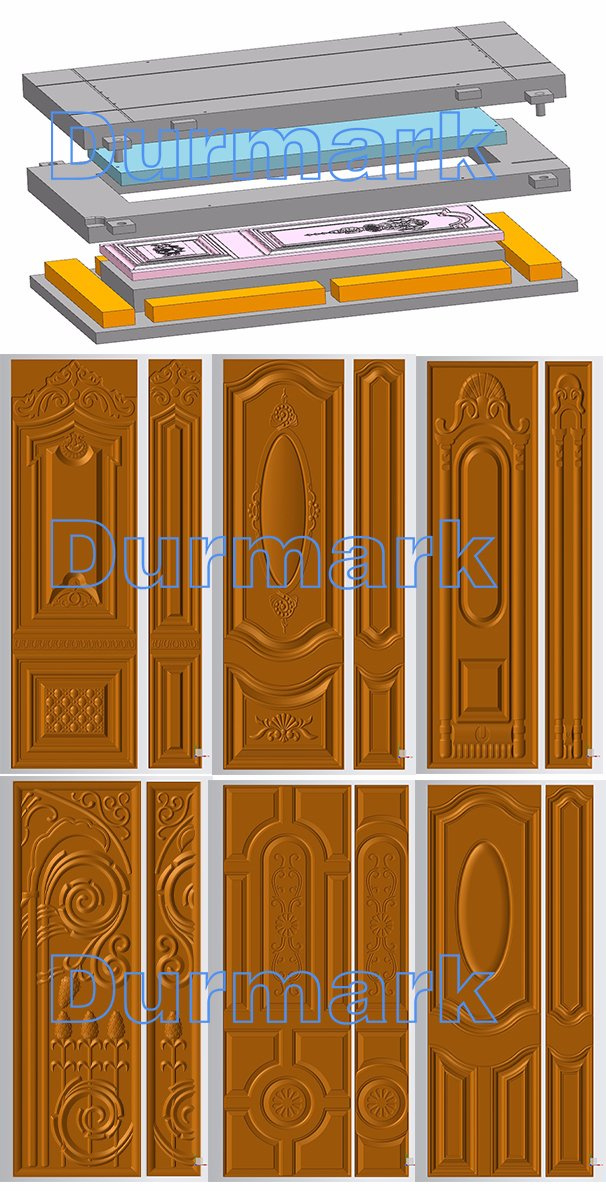

Product DescriptionHydraulic sheet metal forming press is an exclusive machine for pattern making and shape forming of security doors, steel doors, inside doors, stainless steel doors, iron gates, etc.
Welcomed by security door manufacturers, steel wholesale markets, etc.
This machine is characterized as high efficient, convenient and safe operating, energy saving, appearance attracting, and low cost.
Lots of our experienced engineers improved designs to make the machine perfect in simply structure and well perform.
Easy to operate, easy to learn, a few minutes for a person to learn how to operate.
Main Feature1. With PLC control
2. 3 operating ways for choice
3. Integral forged 45# steel, quenching and tempering
4. High efficient, convenient and safe operation
5. Best forming effect, clear 3-dimensional pictorial
6. High quality steel plate welded with accuracy and stability
7. Independent electrical and hydraulic power mechanism
8. Simply structured and well performed for energy saving
9. Available working pressure, speed, and stroke settings
Technical Parameter| NO | Items | Unit | DHP-2000T |
| 1 | Nominal force | kn | 25000 |
| 2 | Max working pressure of liquid | Mpa | 25 |
| 3 | Max opening height | mm | 600 |
| 4 | Oil cylinder max stroke | mm | 500 |
| 5 | Return force | kn | 360 |
| 6 | Slider fast down speed | mm/s | 50-120 |
| 7 | Slider slow down speed | mm/s | 8-12 |
| 8 | Slider return speed | mm/s | 50-120 |
| 9 | Worktable size | mm | 1500*2500 |
| 10 | Motor power | kw | 60 |

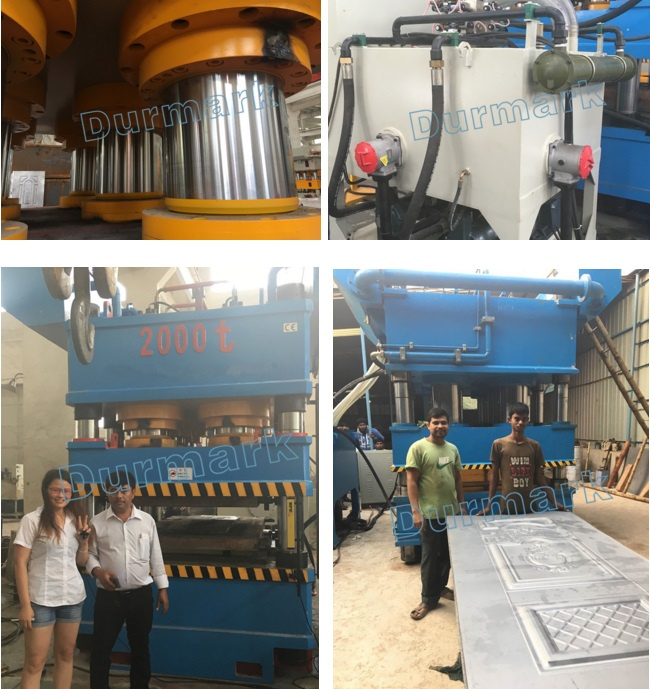

Workshop

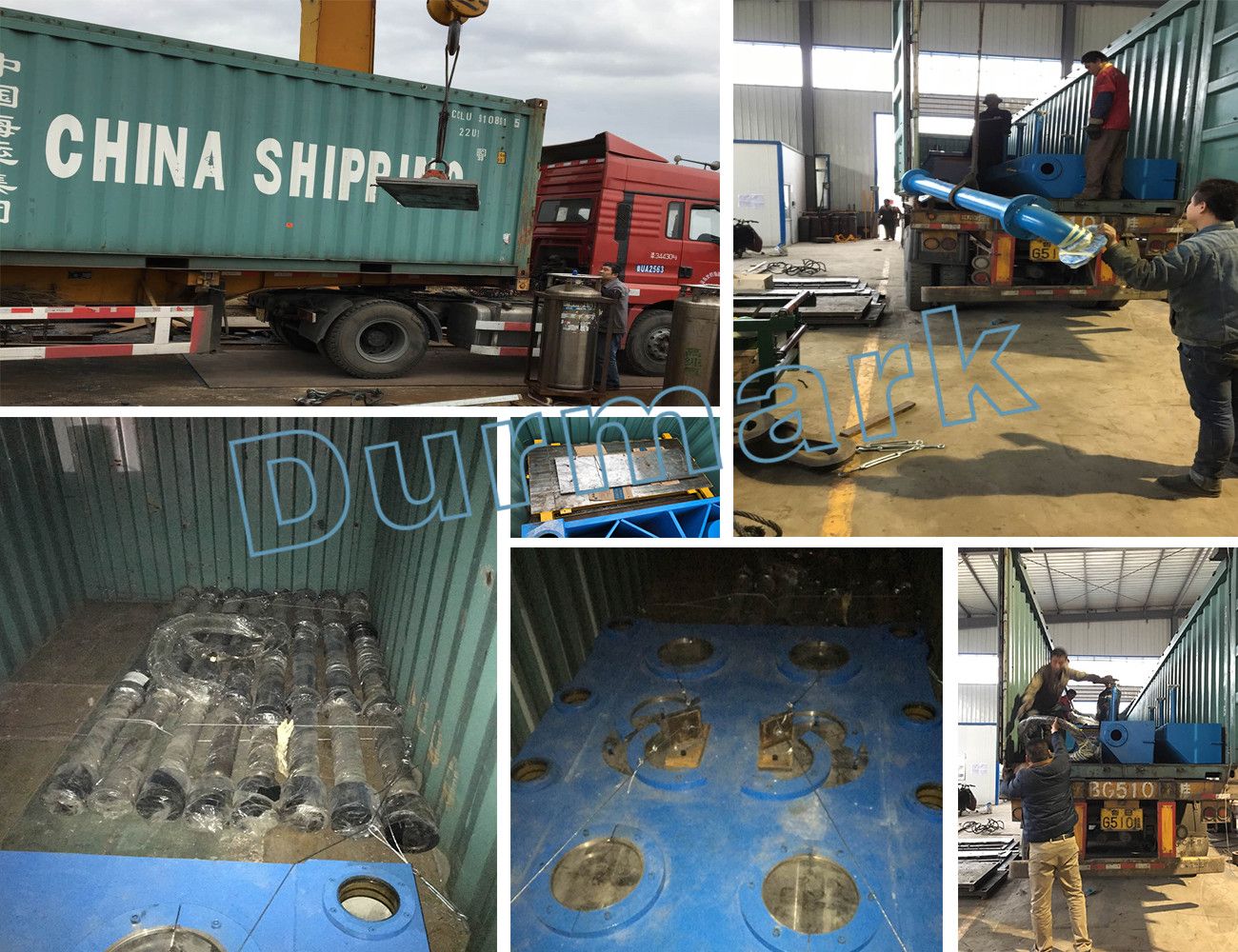

Loading
Certificate
Service Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed
After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea
Contact
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.

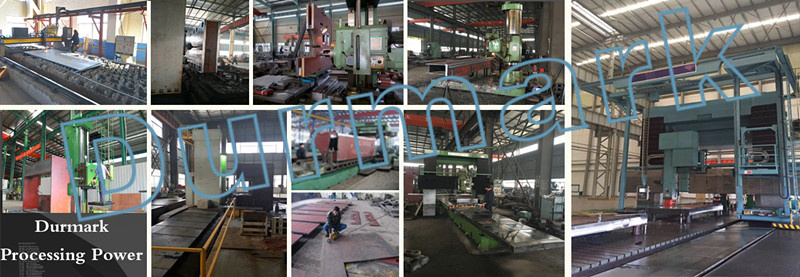

The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
