Dia. 950mm 300W Solar Powered Wall Ventilating Fan for Large-Scale Building with AC/DC Adaptor
| Price: |
US $ 958-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
SN2015022 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Panel: |
24 Volt 300W Brushless Motor |
| Motor: |
24 Volt 300W Brushless Motor |
| Air Flow: |
26000CMH (15200cfm) |
| Fan Host Size: |
1060X1060X400mm |
| DC Motor: |
Brushless |
| Model No.: |
Sn2015022 |
| Electric Current Type: |
DC |
| Mounting: |
Wall Fan |
| Certification: |
CE |
| Blade Material: |
Aluminum Alloy |
Product Description

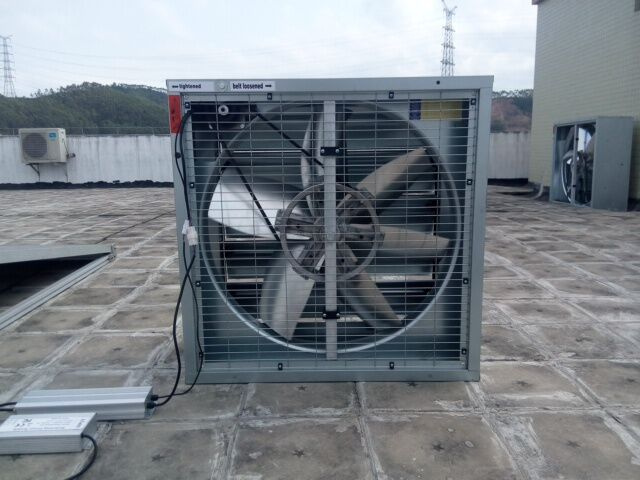

Dia. 950mm 300W Solar Powered Wall Ventilating Fan for large-scale building with AC/DC adaptor
Model No.: SN2013021-dia.950mm bladesSolar Powered Industrial Wall Ventilating Fandia.950mm Aluminum fan blades,
fan host size: 1060x1060x400mm,
24 volt 300W brushless DC motor,
300 watt 24V polycrystalline solar panel (1956x992x50mm),
air flow: 26000CMH (15200CFM),
with 15m cable to connect fan host & solar panel,
solar panel is with angle adjustable mounting bracketModel No.: SN2015022-dia.950mm blades Solar Powered Industrial Wall Ventilating Fan with AC/DC Adapterdia.950mm Aluminum fan blades,
fan host size: 1060x1060x400mm,
24 volt 300W brushless DC motor,
300 watt 24V polycrystalline solar panel (1956x992x50mm),
air flow: 26000CMH (15200CFM),
with 15m cable to connect fan host & solar panel,
solar panel is with angle adjustable mounting bracket,
with 300W 24V AC/DC power adapter to serve as energy backup for fan runs nonstop even in sunless periodsModel No.: SN2015023-dia.950mm blades Solar Powered Industrial Wall Ventilating Fan with Batterydia.950mm Aluminum fan blades,
fan host size: 1060x1060x400mm,
24 volt 300W brushless DC motor,
300 watt 24V polycrystalline solar panel (1956x992x50mm),
air flow: 26000CMH (15200CFM),
with 15m cable to connect fan host & solar panel,
solar panel is with angle adjustable mounting bracket,
with 2*(160Ah 12V) lithium battery kit to serve as energy backup for fan runs nonstop even in sunless periods,
battery is charged by 3pcs 250W 36V solar panel in sunny day time,
(battery can be charged full after 5.5 hours, and backup 8 sunless hours)You can use the inexhaustible solar source freely to support operation of all kinds large scale ventilating fans, the regular commercial electricity bill in old days is no longer a must pay.

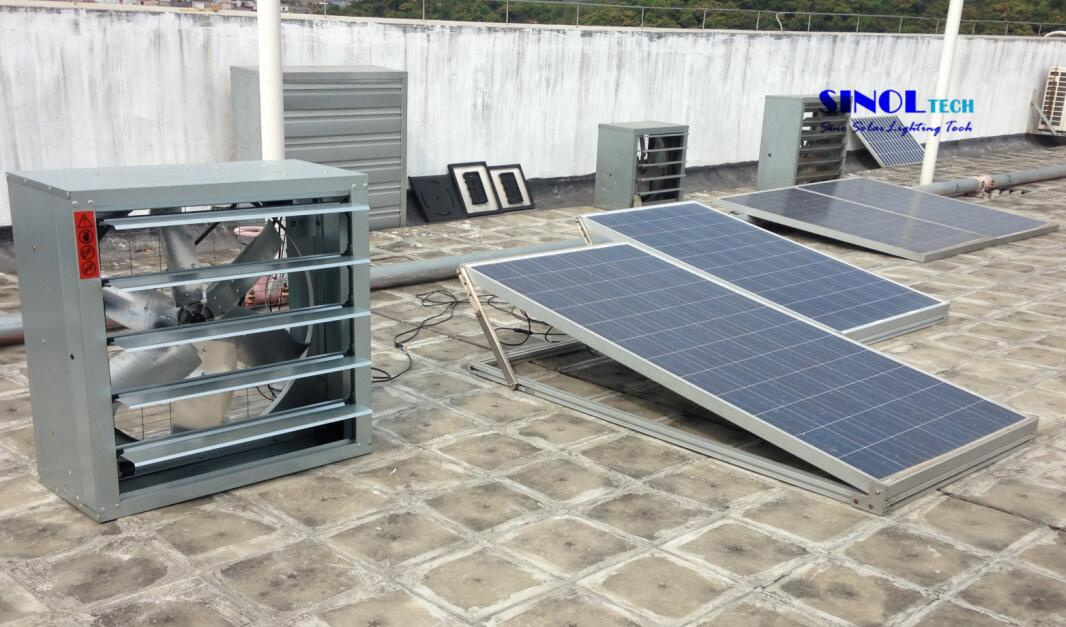

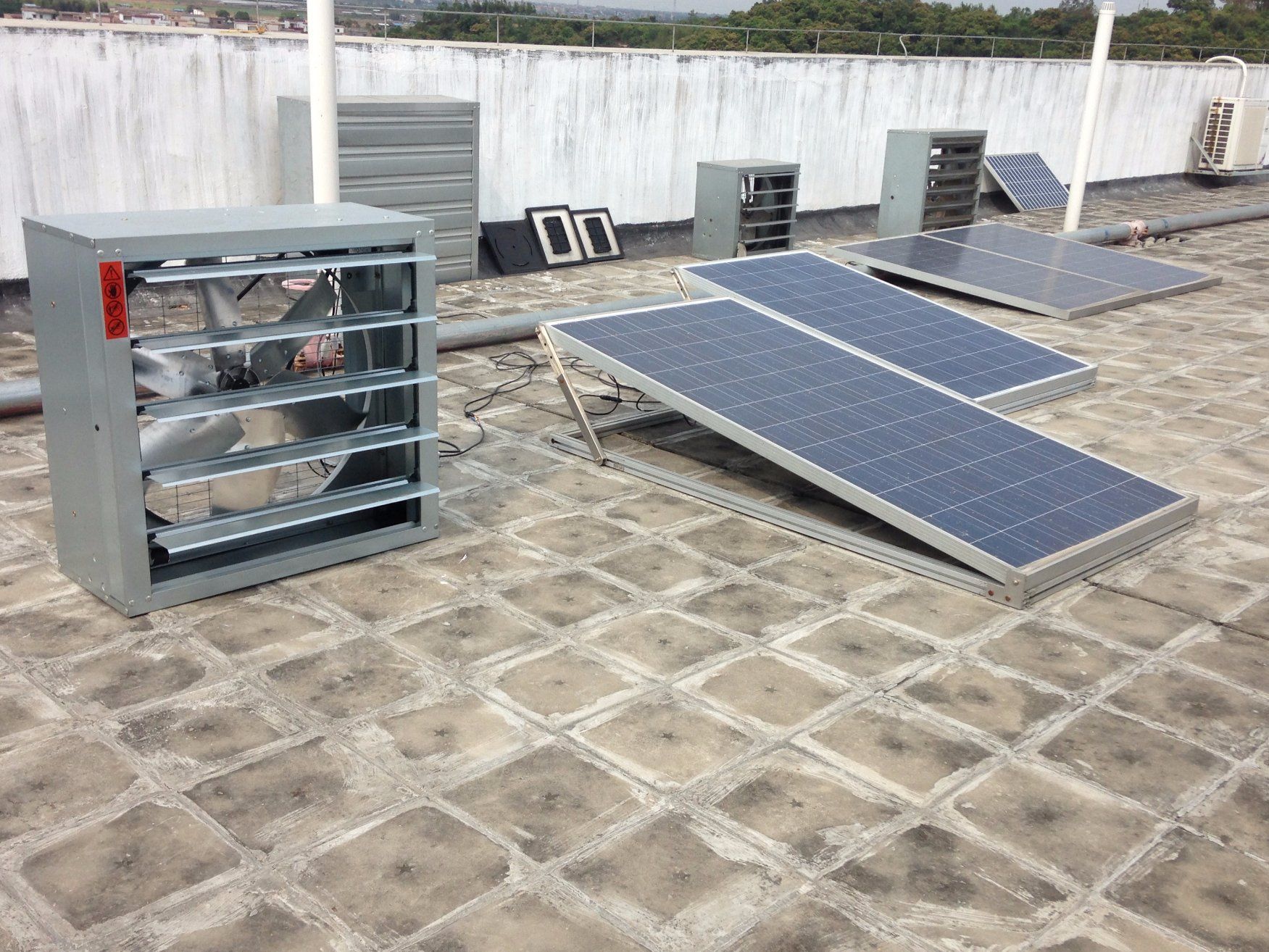

The solar modules mounted on roof-top will generate electricity to support the fans working.
You can add a Mains Switch Controller into product to hybrid use the solar panel supply and public electricity supply to have the ventilating fans work continuously after dark or in cloudy periods.
Fan motor we used is brushless DC motor, so when our products are working under consumption of commercial electricity, their energy costs are still much smaller than those traditional AC motored ventilating fans.The primary power supply for product to work is always from solar panel, only when the sunlight illumination intensity on solar panel is too weak to function fan motor, the Mains Switch Controller will switch-on public electricity supply as support.

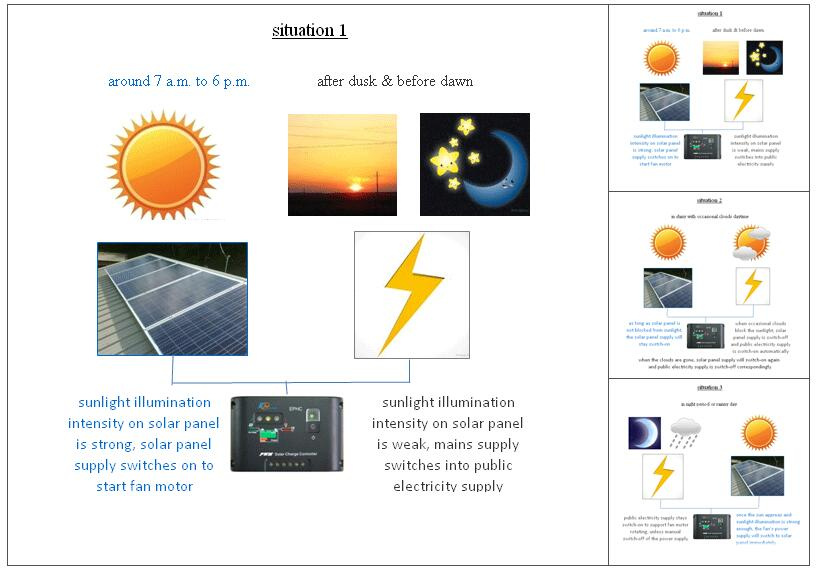

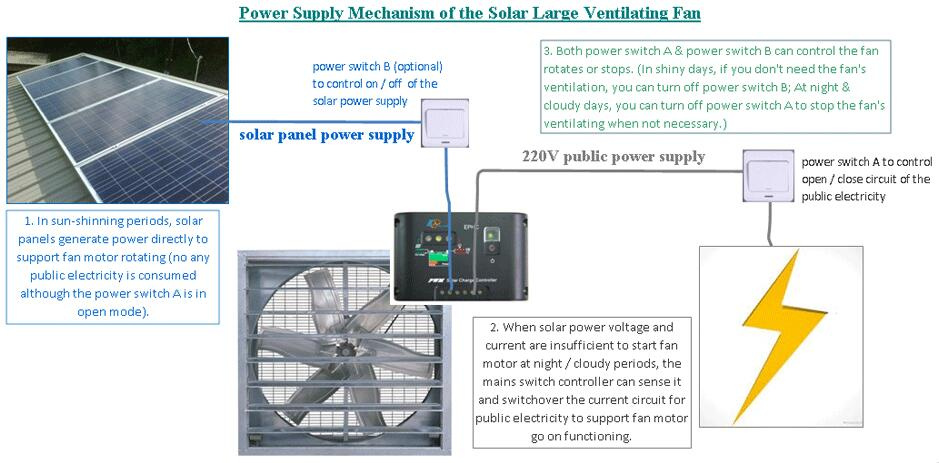

Hereafter illustrates the Mains switch mechanism between solar panel supply and public electricity supply, all switches can be realized automatically intelligently by the Mains Switch Controller.AC electricity as power supply:Situation 1 -

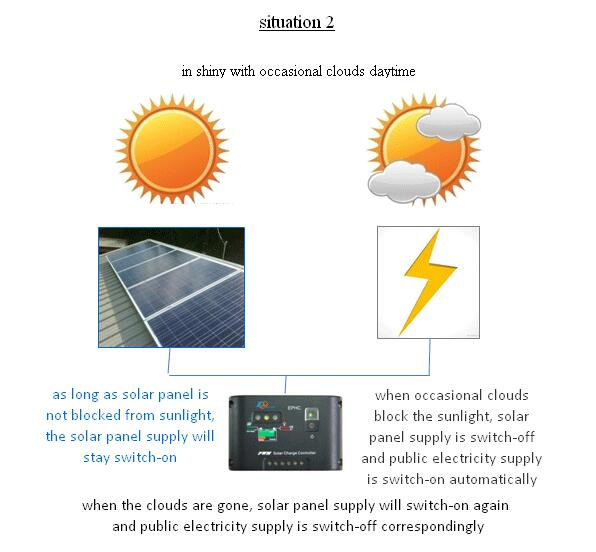

Situation 2-

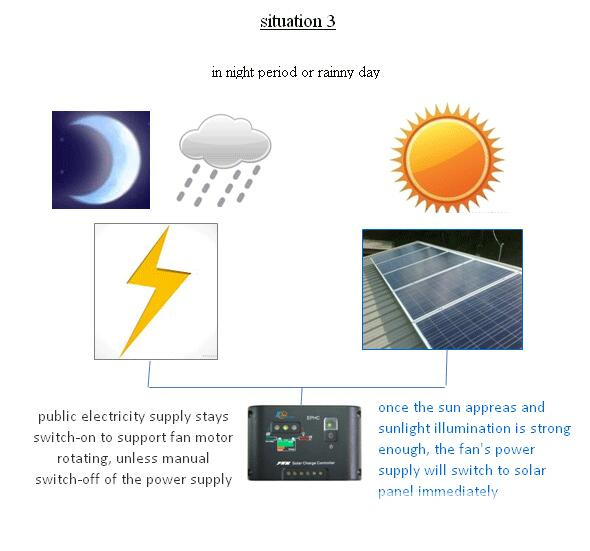

Situation 3-
Product Advantages:1) Clean & Free Solar Energy powered, No commercial electronic consumption.
2) Once Pay, Benefit Long!
3) Cut off conventional monthly boring electricity bills.
4) No manual operation, No maintenance!
5) Value-Added, will pay itself back for you soon after one year.
6) High Quality, Prospective Innovation!
COMPANY PROFILE:
"SINOLTECH" is the solar energy brand name of SINOLTECH ENERGY LIMITED, focusing on providing High quality and Advanced Solar Energy Products and Solution to global users.
Our company was firstly established in year 2005 Hongkong, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy".
SINOLTECH sets up an independent department "SHANDONG SINOLTECH INTERNATIONAL Co., Ltd" in year 2017, specializing in research, development, innovation, production and export for solar lighting and other solar application products.
Our main products include: All-In-One Solar Street Light, Thin Film Flexible Solar Panel, Solar Exhaust Fan, Solar LED Skylight, Folding Solar Charger, Off Grid Solar System, MPPT Solar Controller etc.
SINOLTECH obtains 5 products patents, with production and assembly factories in Shenzhen, Guangzhou and Kunshan, total covering area 10, 000 square meters, total employees over 200, including 18 senior engineers in solar energy system.
SINOLTEC Self Brand products' supply capacity as below:
A-Si flexible solar panel: 200KW/Month
All In One solar street light: 10000 UNITS/Month
Solar exhaust fan: 10000 UNITS/Month
Solar LED skylight: 10000 UNITS/Month
Off grid solar system: 5000 UNITS/Month
SINOLTECH have passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
SINOLTECH have established close cooperation with famous companies in solar energy industry: EPSOLAR and Hanergy, representing their brand and selling high quality MPPT Solar Controller, CIGS Solar Modules to customers worldwide.
Our main exporting markets include: Canada, Australia, Fiji, USA, Malaysia, Singapore, Indonesia, New Zealand, Thailand, Vietnam, Cambodia, Hongkong, UAE, Saudi Arabia, Czech Republic, Romania, Lithuania, Bulgaria, Iceland, Finland, Denmark, Costa Rica, Germany, UK, Columbia, Uruguay, Mexico, Chile, Argentina, Brazil, etc more than 60 countries and areas.
SINOLTECH obtains comprehensive Pre-sales, Sales and After-sales network system, providing professional solution and high quality products in solar energy BIPV system, solar streetlighting, commercial lighting, stadium lighting, area lighting, residential and industrial solar ventilation system, remote area solar system solution etc.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time. Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
