Diameter 20mm Manual Quarry Rock Stone Shims and Wedges

Diameter 20mm Manual Quarry Rock Stone Shims and Wedges
Price: US $ 1.5-25/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 14mm to 38mm
Diameter: 14mm to 38mm
Length: 125-620mm
Material: High Manganese Steel
Processing Type: Forging
Pressure: High Pressure
Transfer: Air/Sea/Express
Color: Request
Advantage: High Performance
Product Name: Shims and Wedges
Inserts Design: Spherical; Ballistic; Parabolic
Certification: API
Condition: New
Type: Splitting Tools
Application: Stone Splitting and Construction

Product Description

Product Description:

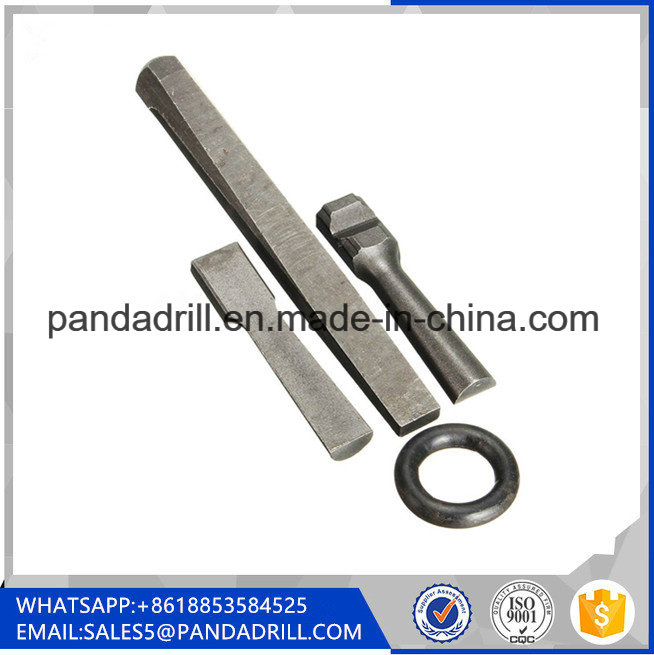

Shims and wedges are Used in conjunction with hammer, (compressor) drilling machine bits for stone blocks billet were split..Used to split the hard stone, rock, granite, marble, concrete.

Instruction for use:

Consists of a Central wedge and 2 wedges, first with quarrying dedicated drill holes in the hole to clear the residual powder, the two big wedge head-down, plane put in the hole, then placed upside the small wedge in the middle of the wedge. Finally, beat with a hammer.

A hole is placed a pair of wedge quarrying, the actual number use according to the workload of the decision. Usually the distance between the two holes about 10cm, depending on the actual use depending on the workload, it can be reused many times.

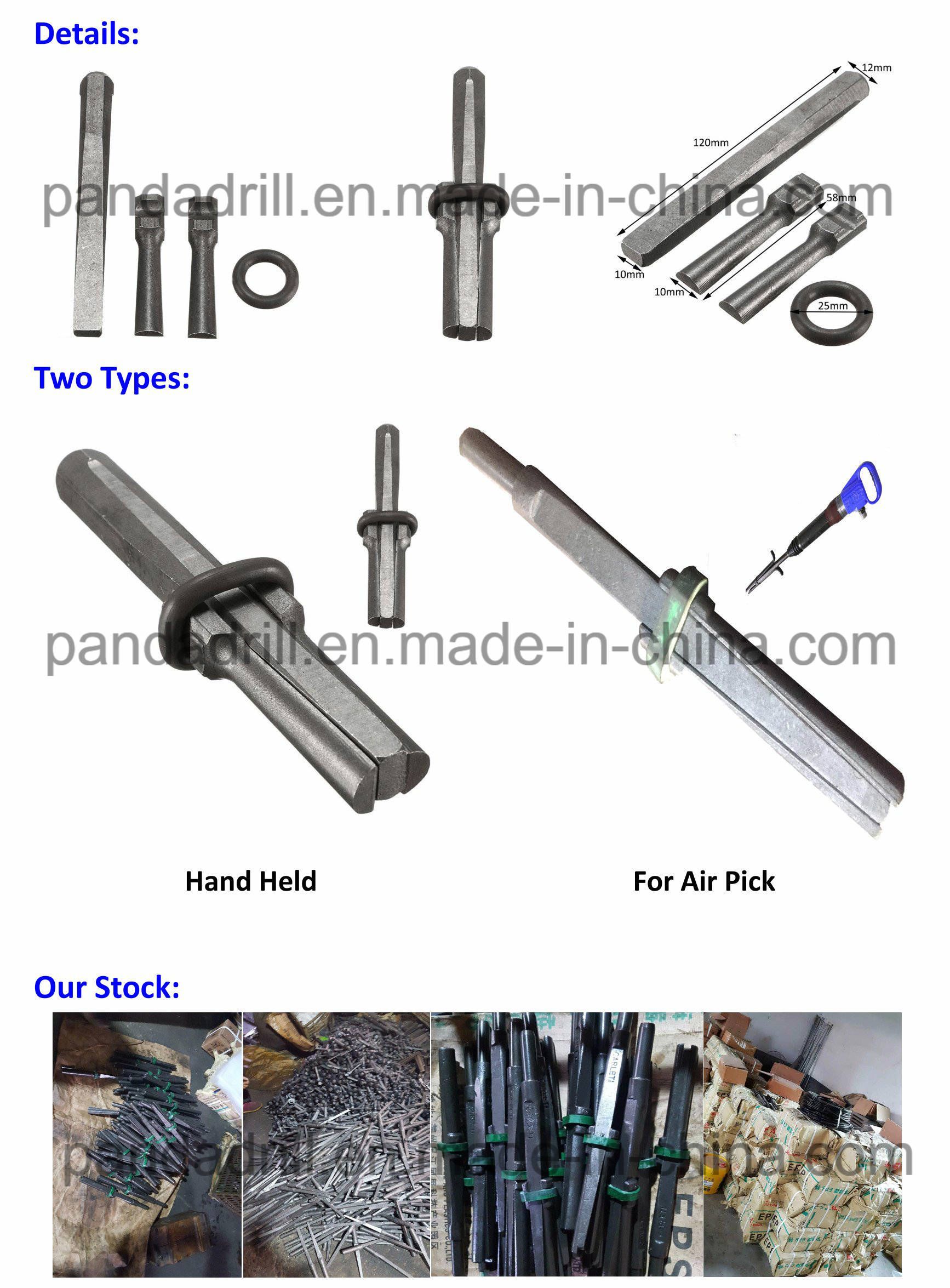

Specification:

Hand Held:
TYPEDIA(MM)LENGTH(MM)
PAH-14-12514125
PAH-16-12516125
PAH-24-19024190
PAH-32-27032270
PAH38-32538325
PAH38-60038600

For Air Pick:
TYPEDIA(MM)LENGTH(MM)
PAG-20-27020270
PAG-30-36530365
PAG-32-36532365
PAG-32-39532395
PAG-34-36534395
PAG-34-39534395
PAG-36-36536365
PAG-36-39536395
PAG-38-36538365
PAG-38-39538395



FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?



A: Sure, welcome, here is our address: Yantai, Shandong.


CONTACT:



Pandadrill, founded on 2008 year, is a specialized manufacturers and supplier of Rock Drilling Tools, Stone and demolition tools and consumables for quarrying, mining and construction with 10 years experiences.

We produces high quality rock drilling products by using high quality raw material, utilizing advanced craft technology and imposing strict quality inspection. The products made by Pandadrill are being adopted by various users from all over China and exported to more than 50 countries including America, France, Australia, Canada, Brazil, South Africa, Malaysian, South Korea and other countries. All of our products are highly-reputed by our customers.

Pandadrill tools always committed to provide low cost Rock Drills, stone tools, rock drilling tools, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.

"Continues to provide you with better products", which keep business purposes, we still make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers. We believe in Fair Quality, Fair Price, Fair Trading, we are aim to provided quality, convenient, quick service to customer and have gained good reputation in the market.

We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.

Main products:

SMALL HOLE DRILLING TOOLS

TOP HAMMER DRILLING TOOLS

HAND HELD DRILLING MACHINE

DTH TOOLS

ROTRAY DRILL TOOLS

BREAKING TOOLS (STONE & CONSTRUCTION)

GRINDING TOOLS

STONE CUTTING TOOLS

MINING EQUIPMENT
