Diamod Wire Saw for Quarry Stone (granite, marble)

Name: Diamod Wire Saw for Quarry Stone (granite, marble)
Brand: tool-buy.com
SKU: 726154022
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	US $ 32/Meter
Min Order:	10/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangxi Xinguang Diamond Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	XG
Weight:	360g/Meter
Linear Speed:	More Than 30m/S
Life Span:	20-40 M2/M
Cutting Speed:	: 10-30 M2/H
Reinforcement:	Rubber, Rubber+Spring
Segment Type:	Round Beads
Type:	Sintered
Application:	Marble and Granite
Certification:	ISO:9001
Beads Nmuber:	40PCS/Meter

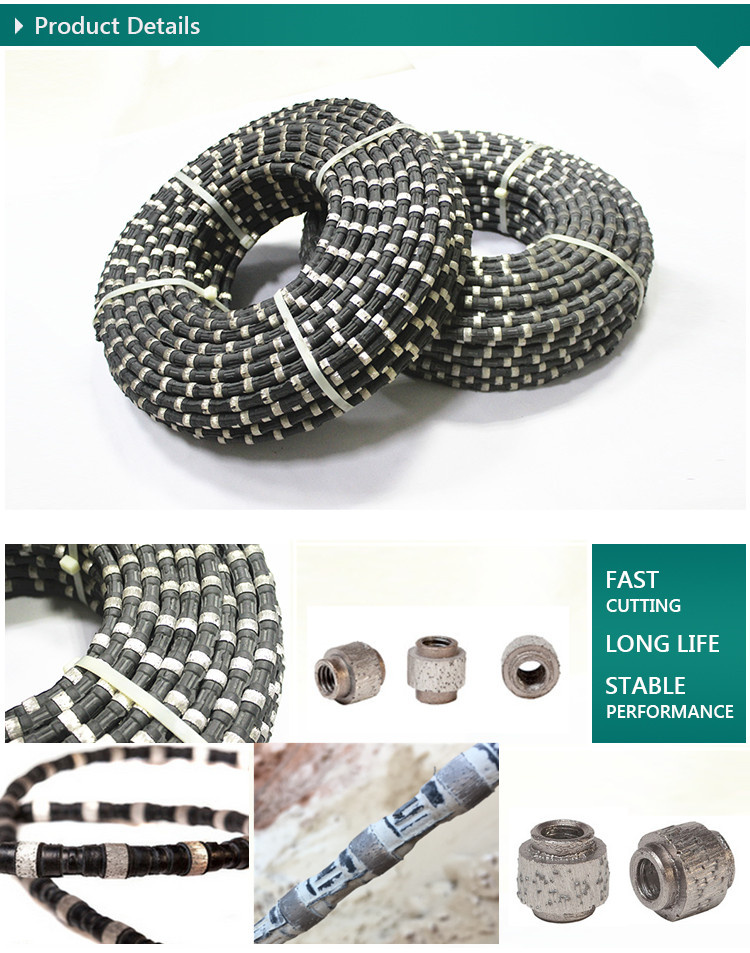

Product Description

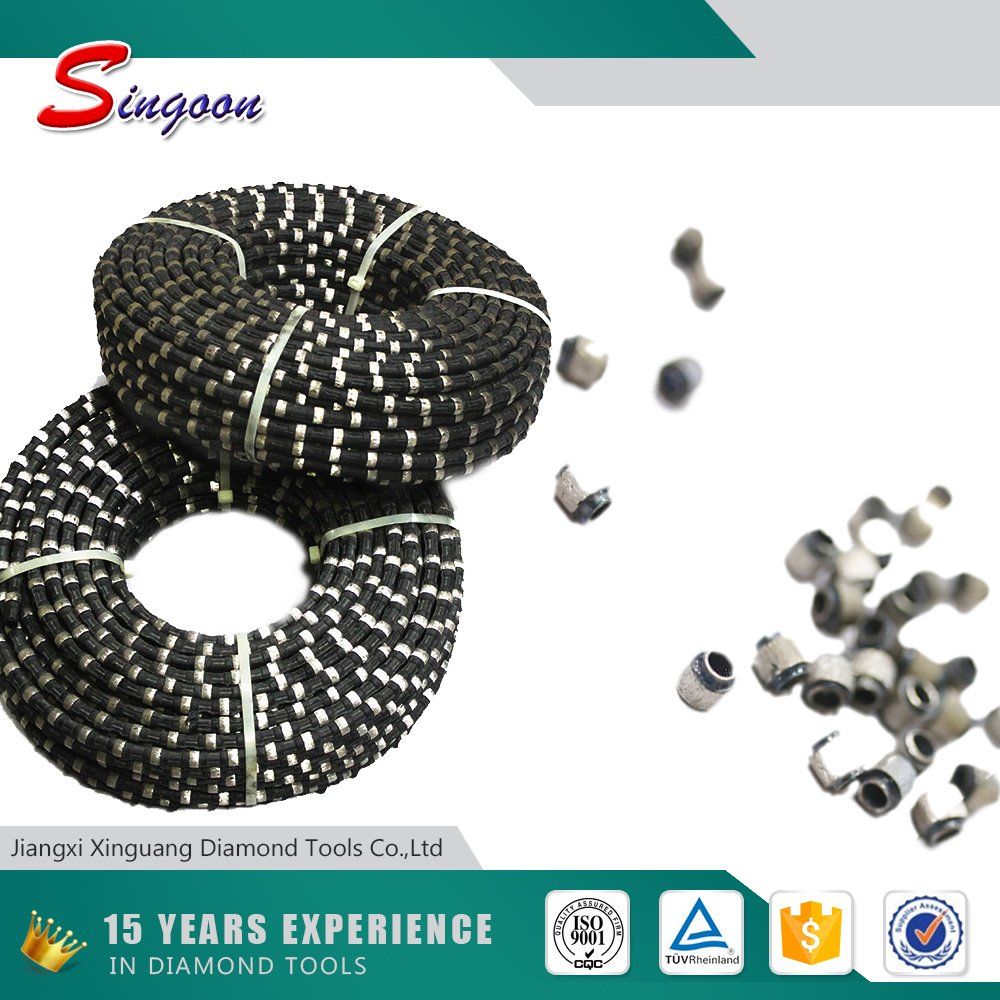

Diamond Cutting Wire Rope Saw for Cutting Marble and Granite Quarry

Description of Diamond Wire Saw

Type: Wire saw machine tool parts
Raw material: Diamond
Application: Quarrying, block squaring, profiling, Concrete
Reinforcement: Rubber,Plastic, Spring
Other name: diamond wire rope, diamond rope saw

Character & advantage of Diamond Wire Saw
High effection, low cost, low waste
Cutting smooth and process accurate
Safe and environmental protection
Can cut a big and regular stock
Factory with more than 15 years experience in diamond tool industry
A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets, product quality has been recognized by overseas customers.
More than 100 sets hot-press, colde-press, wire saw machine and over 300 employees keet the high output and fast delivery time.

Diamond Cutting Wire Rope Saw for Cutting Marble and Granite Quarry

What The Data of your diamond wire saw In Cutting Granite

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	24-28	10-20	15-20
			Medium hard	22-26	8-15	10-15
			Hard	20-24	7-10	8-12
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	25-30	15-25	20-30
			Medium hard	22-25	10-15	15-25
			Hard	18-22	8-12	10-15

What The Data of your diamond wire saw In Cutting Marble

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	30-35	20-30	30-40
			Medium hard	28-32	15-25	25-35
			Hard	26-30	10-20	20-30
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	36-38	25-30	35-40
			Medium hard	34-36	20-25	25-30
			Hard	30-32	15-20	20-25

What The Data of your diamond wire saw In Cutting reinforced concrete

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ10.5mm φ11mm φ11.5mm	40 pcs	Rubber Rubber+Spring	Highly Reinforced Concrete	22-28	2-5	5-7
			Normally Reinforced Concrete	20-22	1.5-3	2-4
			Steel/Metal structure	18-20	0.5-2	1-3

We also can make other diameter like 7.5mm, 8.0mm, 8.5mm,9.5mm, 10mm

Diamond Cutting Wire Rope Saw for Cutting Marble and Granite Quarry

Jiangxi Xinguang Diamond Tools Co., Ltd. Was established in 2003 and is located in Poyang County, enjoying convenient transportation and beautiful environment. Our company covers an area of 13, 000 square meters and has 150 employees. We are specialized in diamond tools and have an annual production capacity of 300, 000 sets. Our company has rich experience in the diamond tools industry. Our main products include diamond tools/segments. Besides, we are making great efforts to develop new products to meet different requirements. Our company has hot pressing machine equipment to strictly control the product quality. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. China is a big country in stone production and consumption. At present our products sell well throughout the provinces in China, with the turnover of nearly one hundred million Yuan, On this basis, we began to open up overseas markets in 2012, including India, Vietnam, Spain, Iran and other countries. Our products have reached the country's request and now our company is striving for more markets.
