| Prod Model: |
micron powder |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color For: |
Black and White |
| Name: |
Synthetic Diamond Powder |
| Certifications: |
ISO9001 |
| Purity: |
99.9% |
| Usage1: |
Polishing Hard Alloy |
| Usage2: |
Making Diamond Paste |
| Usage3: |
Making Diamond Pad |
| Material: |
Diamond |
| Usage: |
Grind |
Product Description

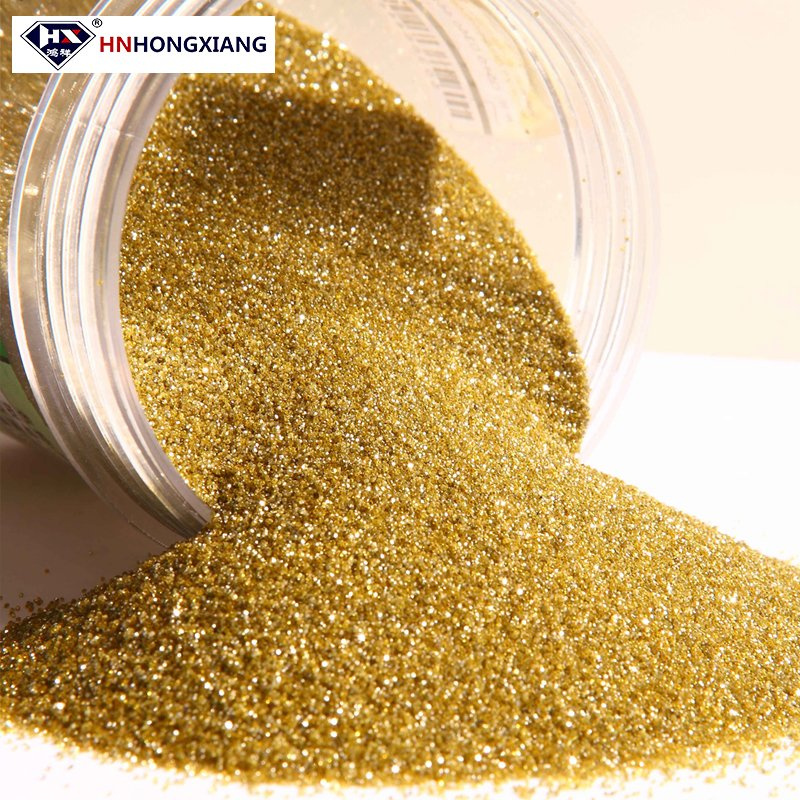

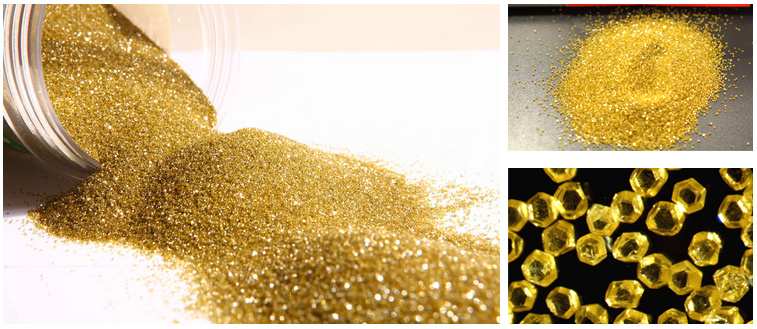

Synthetic Diamond
1.High purity
2.Wear-resisting
3.Girt uniform
4.Stable quality
5.Enough ability to supply
RVD Diamond :
Feature: Most crystals are irregular with rough surface.
Usage: For making resin bond and vitrified bond abrasive tools, electroplated products and drilling tools etc.
Size:30/40,40/45,45/50,50/60,60/70,70/80,80/100,100/120,120/140,140/170,170/200,200/230,230/270,270/325,325/400,400/500.
MBD Diamond
Feature: Well facetted crystals with smooth surface and high compressive strength.
Usage:For making metal bond abrasive tools etc.
Size:30/35,35/40,40/45,45/50,50/60,60/70,70/80,80/100,100/120,120/140,140/170,170/200.
SMD Diamond
Feature: Well facetted and very clear crystals with smooth surface and high compressive strength.
Usage:For making saw blades drilling and dressing tools etc.
Size:20/25,25/30,30/35,35/40,40/45,45/50,50/60,60/70,70/80,80/100,100/120,120/140,140/170.
Dianmond micro powder
Feature: Grit is uniform.Don't contain impurities.High purity.
Usage:For making polishing pads,polishing disc,diamond compound,PCD,diamond wire dies,polishing ceramics,electronic devices etc.
Size:0.25um,0.5um,1um,1.5um,,,,,50um.
Ni & Ti coating synthetic diamond powder
Size:
Micron powder: 0.5um to 50um.
Diamond mesh powder: 30/40,40/50,,,to 400/500
Usage: for making diamond drawing wire, diamond drill bit etc.
Feature: 30% & 56%
Product production process:
Raw Material→ Crusher:Broken Material→ Plastic machine: After many plastic, uniform diamond crystal and crystal relatively intact→ Separator: After many screening, uniform granularity, low impurity.→Pickling Machine: Each particle size have exclusive screen machine, avoid mixing impurities→ Sieve Machine→ The Dryer→ Finished Product
Zhecheng Hongxiang Superhard Material Co.,ltd.,
A professional diamond powder manufacturer in China mainland.
Our main business includes:
synthetic diamond, diamond micron powder and diamond tools,
like diamond drill for drilling glass,stone,tiles,diamond grinding wheel for grinding glass, carbide, diamond saw blade for glass,tiles, granite, marble,concrete,CNC tools, polishing wheel,etc.
All of our business is carried out in full compliance with the ISO9001 Certification.If you wanna more information, please contact us, here, you will get best products with best price!
FAQ:
Q1. Delivery time?
Answer: If the product has store,1 day after payment,if not,3-7 days after payment.
Q2. The packaging is safe?
Answer:Sure,first in bottles or in plastic bags.if in plastic bags,we will package three layers plastic.Second,Plastic bags in white box.Last,bottles or white box in cartons.
Q3. The product is not suitable for our usage,what we can do?
Answer: Just return it back,we will send you suitable one again.
Q4.If my quantity is large,can you meet me?
Answer: High quality, high efficiency, high production is our principle
| Synthetic Diamond |
Standard of
China | Standard of
International | Mesh | Standard of
China | Standard of
International | Mesh |
| 16/18 | D1180 | 18# | 80/100 | D181 | 100# |
| 18/20 | D1001 | 20# | 100/120 | D151 | 120# |
| 20/25 | D851 | 25# | 120/140 | D126 | 140# |
| 25/30 | D711 | 30# | 140/170 | D107 | 170# |
| 30/35 | D601 | 35# | 170/200 | D91 | 200# |
| 35/40 | D501 | 40# | 200/230 | D76 | 230# |
| 40/45 | D425 | 45# | 230/270 | D64 | 270# |
| 45/50 | D356 | 50# | 270/325 | D54 | 325# |
| 50/60 | D301 | 60# | 400/500 | | 400# |
| 60/70 | D251 | 70# | 500/600 | | 500# |
| 70/80 | D213 | 80# | | | |
| Diamond Micron Powder |
Standard of
China | Standard of
International | Mesh | Standard of
China | Standard of
International | Mesh |
| w0.1 | 0-0.1 | | w10 | 5-10 | 2000 |
| w0.25 | 0-0.25 | 60000 | w10 | 6-12 | 1800 |
| w0.5 | 0-0.5 | 30000 | w12 | 8-12 | 1600 |
| w1 | 0-1 | 15000 | w14 | 7-14 | 1500 |
| w1.5- | 0-2 | 13000 | w14 | 8-16 | 1300 |
| w1.5 | 1-2 | 12000 | w20- | 10-20 | 1200 |
| w2.5 | 1-3 | 10000 | w20 | 12-22 | 1000 |
| w3 | 2-3 | 7000 | w20+ | 15-25 | 800 |
| w3.5 | 2-4 | 6500 | w28 | 20-30 | 700 |
| w3.5 | 2-4 | 6000 | w28+ | 22-36 | 600 |
| w4 | 2-5 | 5000 | w40- | 20-40 | 500 |
| w5 | 3-6 | 4000 | w40 | 30-40 | 450 |
| w6 | 4-6 | 3500 | w40+ | 35-45 | 400 |
| w7 | 4-8 | 3000 | w50 | 36-54 | |
| w10 | 4-9 | 2500 | | | |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
