| Prod Model: |
4A6-2-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Can Be Customize According Drawing |
| Delivery Time: |
3 Days |
| Materical: |
Diamond Sliver |
| Package: |
Box |
| Type: |
Stone Taper Carving Bit |
| Material: |
Diamond Sliver |
| Use: |
for Stone,Marble Carving |
Product Description

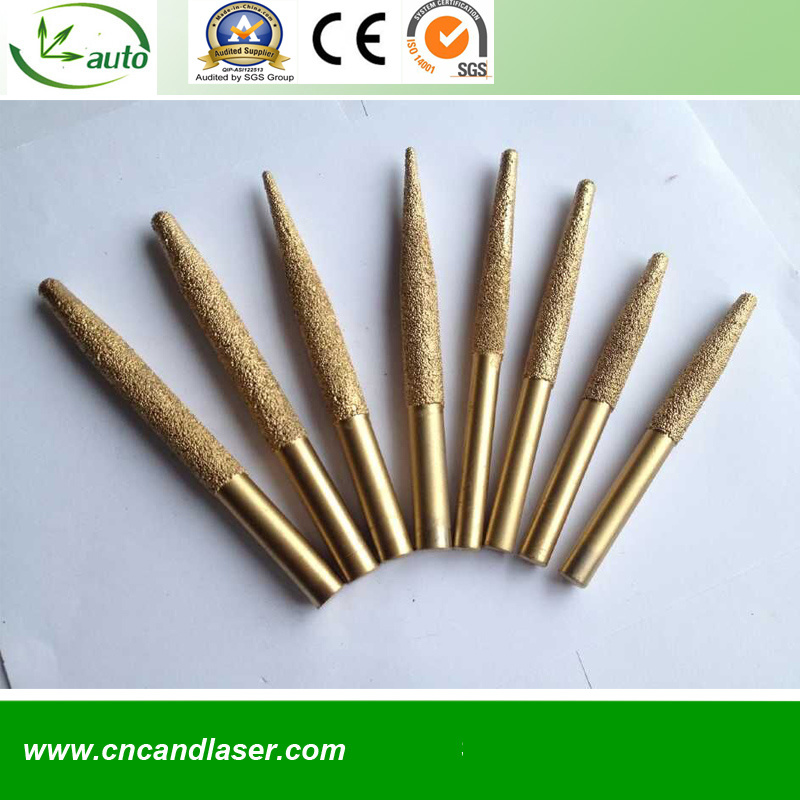

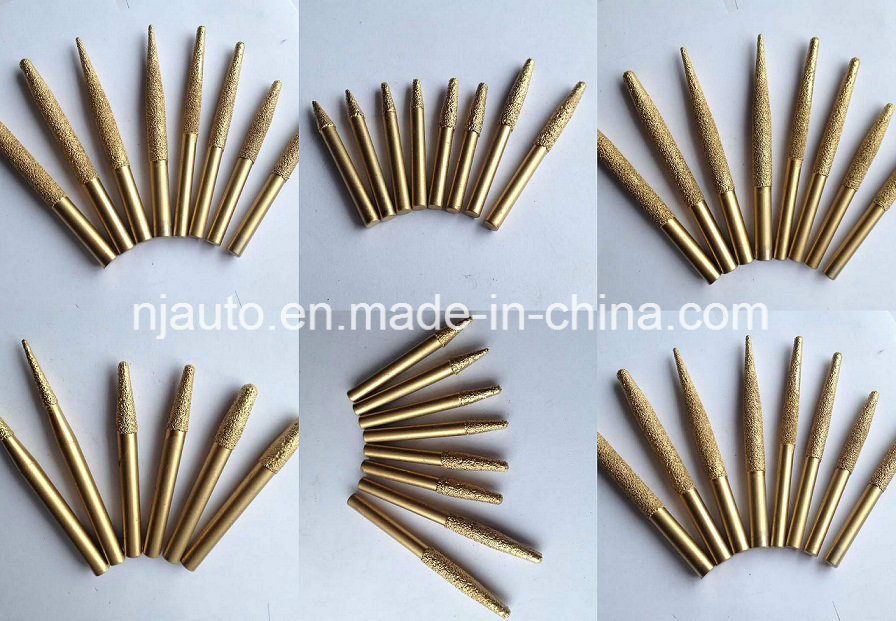

diamond bits cnc Carving Tools
Application:
1. stone monument, tombstone, and so on... carving work.
2. Art glass, emerald, glass decoration processing.
3. Cutting, clearing bottom, drilling, 2D, 3D carving...
Features:
1,longer life, higher speed, more efficiency, lower cost. High precision.
2,Flat head ones is good for clearing bottom of material work.
3,Ball head ones are suitable for carving ball shape bottom. It can makes third dimension effect.
4,V shape ones is used for V shape carving.
| NO. | MODEL | SHK(mm) | CED(mm) | CEL(mm) |
| 1 | 4A6-2-10 | 6 | 2 | 10 |
| 2 | 4A6-3-10 | 6 | 3 | 10 |
| 3 | 4A6-4-10 | 6 | 4 | 10 |
| 4 | 4A6-2-15-10 | 6 | 2 | 15 |
| 5 | 4A6-2-20-10 | 6 | 2 | 20 |
| 6 | 4A6-2-25-10 | 6 | 2 | 25 |
| 7 | 4A6-2-30-10 | 6 | 2 | 30 |
| 8 | 4A8-2-10-10 | 8 | 2 | 10 |
| 9 | 4A8-2-15-10 | 8 | 2 | 15 |
| 10 | 4A8-2-20-10 | 8 | 2 | 20 |
| 11 | 4A8-2-25-10 | 8 | 2 | 25 |
| 12 | 4A8-2-30-10 | 8 | 2 | 30 |
| 13 | 4A8-3-10-10 | 8 | 3 | 10 |
| 14 | 4A8-3-15-10 | 8 | 3 | 15 |
| 15 | 4A8-3-20-10 | 8 | 3 | 20 |
| 16 | 4A8-3-25-10 | 8 | 3 | 25 |
| 17 | 4A8-3-30-10 | 8 | 3 | 30 |
| 18 | 4A8-4-10-10 | 8 | 4 | 10 |
| 19 | 4A8-4-15-10 | 8 | 4 | 15 |
| 20 | 4A8-4-20-10 | 8 | 4 | 20 |
| 21 | 4A8-4-25-10 | 8 | 4 | 25 |
| 22 | 4A8-4-30-10 | 8 | 4 | 30 |
| 23 | 4A8-5-10-10 | 8 | 5 | 10 |
| 24 | 4A8-5-15-10 | 8 | 5 | 15 |
| 25 | 4A8-5-20-10 | 8 | 5 | 20 |
| 26 | 4A8-5-25-10 | 8 | 5 | 25 |
| 27 | 4A8-5-30-10 | 8 | 5 | 30 |
| 28 | 4A8-6-10-10 | 8 | 6 | 10 |
| 29 | 4A8-6-15-10 | 8 | 6 | 15 |
| 30 | 4A8-6-20-10 | 8 | 6 | 20 |
| 31 | 4A8-6-25-10 | 8 | 6 | 25 |
| 32 | 4A8-6-30-10 | 8 | 6 | 30 |
| 33 | 4A10-2-10-10 | 10 | 2 | 10 |
| 34 | 4A10-2-15-10 | 10 | 2 | 15 |
| 35 | 4A10-2-20-10 | 10 | 2 | 20 |
| 36 | 4A10-2-25-10 | 10 | 2 | 25 |
| 37 | 4A10-2-30-10 | 10 | 2 | 30 |
| 38 | 4A10-3-10-10 | 10 | 3 | 10 |
| 39 | 4A10-3-15-10 | 10 | 3 | 15 |
| 40 | 4A10-3-20-10 | 10 | 3 | 20 |
| 41 | 4A10-3-25-10 | 10 | 3 | 25 |
| 42 | 4A10-3-30-10 | 10 | 3 | 30 |
| 43 | 4A10-4-10-10 | 10 | 4 | 10 |
| 44 | 4A10-4-15-10 | 10 | 4 | 15 |
| 45 | 4A10-4-20-10 | 10 | 4 | 20 |
| 46 | 4A10-4-25-10 | 10 | 4 | 25 |
| 47 | 4A10-4-30-10 | 10 | 4 | 30 |
| 48 | 4A10-5-10-10 | 10 | 5 | 10 |
| 49 | 4A10-5-15-10 | 10 | 5 | 15 |
| 50 | 4A10-5-20-10 | 10 | 5 | 20 |
| 51 | 4A10-5-25-10 | 10 | 5 | 25 |
| 52 | 4A10-5-30-10 | 10 | 5 | 30 |
| 53 | 4A10-6-10-10 | 10 | 6 | 10 |
| 54 | 4A10-6-15-10 | 10 | 6 | 15 |
| 55 | 4A10-6-20-10 | 10 | 6 | 20 |
| 56 | 4A10-6-25-10 | 10 | 6 | 25 |
| 57 | 4A10-6-30-10 | 10 | 6 | 30 |
| 58 | 4A10-8-10-10 | 10 | 8 | 10 |
| 59 | 4A10-8-15-10 | 10 | 8 | 15 |
| 60 | 4A10-8-20-10 | 10 | 8 | 20 |
| 61 | 4A10-8-25-10 | 10 | 8 | 25 |
| 62 | 4A10-8-30-10 | 10 | 8 | 30 |
| 63 | 4A12-2-10-10 | 12 | 2 | 10 |
| 64 | 4A12-2-15-10 | 12 | 2 | 15 |
| 65 | 4A12-2-20-10 | 12 | 2 | 20 |
| 66 | 4A12-2-25-10 | 12 | 2 | 25 |
| 67 | 4A12-2-30-10 | 12 | 2 | 30 |
| 68 | 4A12-3-10-10 | 12 | 3 | 10 |
| 69 | 4A12-3-15-10 | 12 | 3 | 15 |
| 70 | 4A12-3-20-10 | 12 | 3 | 20 |
| 71 | 4A12-3-25-10 | 12 | 3 | 25 |
| 72 | 4A12-3-30-10 | 12 | 3 | 30 |
| 73 | 4A12-4-10-10 | 12 | 4 | 10 |
| 74 | 4A12-4-15-10 | 12 | 4 | 15 |
| 75 | 4A12-4-20-10 | 12 | 4 | 20 |
| 76 | 4A12-4-25-10 | 12 | 4 | 25 |
| 77 | 4A12-4-30-10 | 12 | 4 | 30 |
| 78 | 4A12-5-10-10 | 12 | 5 | 10 |
| 79 | 4A12-5-15-10 | 12 | 5 | 15 |
| 80 | 4A12-5-20-10 | 12 | 5 | 20 |
| 81 | 4A12-5-25-10 | 12 | 5 | 25 |
| 82 | 4A12-5-30-10 | 12 | 5 | 30 |
| 83 | 4A12-6-10-10 | 12 | 6 | 10 |
| 84 | 4A12-6-15-10 | 12 | 6 | 15 |
| 85 | 4A12-6-20-10 | 12 | 6 | 20 |
| 86 | 4A12-6-25-10 | 12 | 6 | 25 |
| 87 | 4A12-6-30-10 | 12 | 6 | 30 |
| 88 | 4A12-8-10-10 | 12 | 8 | 10 |
| 89 | 4A12-8-15-10 | 12 | 8 | 15 |
| 90 | 4A12-8-20-10 | 12 | 8 | 20 |
| 91 | 4A12-8-25-10 | 12 | 8 | 25 |
| 92 | 4A12-8-30-10 | 12 | 8 | 30 |
| 93 | 4A12-10-10-10 | 12 | 10 | 10 |
| 94 | 4A12-10-15-10 | 12 | 10 | 15 |
| 95 | 4A12-10-20-10 | 12 | 10 | 20 |
| 96 | 4A12-10-25-10 | 12 | 10 | 25 |
| 97 | 4A12-10-30-10 | 12 | 10 | 30 |
