Diamond Coating Milling Cutter for Graphite
Price: |
US $ 15-100/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
DJ-1014 |
Application: |
High Silicon Aluminum, Graphite Electrode, etc |
Product Description
1. OEM Services Offered 2. Customized Tools Offered3. Free laser marking on tools and boxes OfferedAvailable SpecificationCorner Radius end millsPart No. | Flute dia | Shank Dia | Flute Length | Available Length | Total Length | Flute Num | Corner Radius |
DIR1-4-1.5-10-60R0.05 | 1.0 | 4 | 1.5 | 10 | 60 | 2 | 0.05 |
DIR1-4-1.5-6-60R0.1 | 1.0 | 4 | 1.5 | 6 | 60 | 2 | 0.1 |
DIR1-4-1.5-8-60R0.1 | 1.0 | 4 | 1.5 | 8 | 60 | 2 | 0.1 |
DIR1-4-1.5-10-60R0.1 | 1.0 | 4 | 1.5 | 10 | 60 | 2 | 0.1 |
DIR1-4-1.5-12-60R0.1 | 1.0 | 4 | 1.5 | 12 | 60 | 2 | 0.1 |
DIR1-4-1.5-16-60R0.1 | 1.0 | 4 | 1.5 | 16 | 60 | 2 | 0.1 |
DIR1-4-1.5-20-60R0.1 | 1.0 | 4 | 1.5 | 20 | 60 | 2 | 0.1 |
DIR1.5-4-3-10-60R0.1 | 1.5 | 4 | 3 | 10 | 60 | 2 | 0.1 |
DIR1.5-4-3-10-60R0.15 | 1.5 | 4 | 3 | 10 | 60 | 2 | 0.15 |
DIR1.5-4-3-15-60R0.2 | 1.5 | 4 | 3 | 15 | 60 | 2 | 0.2 |
DIR2-4-4-16-60R0.15 | 2.0 | 4 | 4 | 16 | 60 | 2 | 0.15 |
DIR2-4-4-25-75R0.15 | 2.0 | 4 | 4 | 25 | 75 | 2 | 0.15 |
DIR1.5-4-4-10-60R0.2 | 2.0 | 4 | 4 | 8 | 60 | 2 | 0.2 |
DIR2-4-4-10-60R0.2 | 2.0 | 4 | 4 | 10 | 60 | 2 | 0.2 |
DIR2-4-4-12-60R0.2 | 2.0 | 4 | 4 | 12 | 60 | 2 | 0.2 |
DIR2-4-4-20-60R0.5 | 2.0 | 4 | 4 | 20 | 60 | 2 | 0.5 |
DIR3-4-6-20-60R0.1 | 3.0 | 4 | 6 | 20 | 60 | 2 | 0.1 |
DIR3-3-16-16-75R0.1 | 3.0 | 3 | 16 | 16 | 75 | 4 | 0.1 |
DIR3-3-16-16-60R0.2 | 3.0 | 3 | 16 | 16 | 60 | 4 | 0.2 |
DIR3-3-16-25-75R0.2 | 3.0 | 3 | 16 | 25 | 75 | 4 | 0.2 |
DIR3-3-16-20-60R0.3 | 3.0 | 3 | 16 | 20 | 60 | 4 | 0.3 |
DIR3-3-15-15-60R0.5 | 3.0 | 3 | 15 | 15 | 60 | 4 | 0.5 |
DIR3-3-15-15-75R0.5 | 3.0 | 3 | 15 | 15 | 75 | 4 | 0.5 |
DIR4-4-20-20-60R0.1 | 4.0 | 4 | 20 | 20 | 60 | 4 | 0.1 |
DIR4-4-20-20-60R0.2 | 4.0 | 4 | 20 | 20 | 60 | 4 | 0.2 |
DIR4-4-20-30-75R0.2 | 4.0 | 4 | 20 | 30 | 75 | 4 | 0.2 |
DIR4-4-20-30-75R0.2 | 4.0 | 4 | 20 | 30 | 75 | 4 | 0.2 |
DIR4-4-20-30-100R0.2 | 4.0 | 4 | 20 | 30 | 100 | 4 | 0.2 |
DIR4-4-20-20-60R0.5 | 4.0 | 4 | 20 | 20 | 60 | 4 | 0.5 |
DIR4-4-20-20-75R0.5 | 4.0 | 4 | 20 | 20 | 75 | 4 | 0.5 |
DIR4-4-20-30-100R0.5 | 4.0 | 4 | 20 | 30 | 100 | 4 | 0.5 |
DIR6-6-22-30-60R0.3 | 6.0 | 6 | 22 | 30 | 60 | 4 | 0.3 |
DIR6-6-25-35-75R0.3 | 6.0 | 6 | 25 | 35 | 75 | 4 | 0.3 |
DIR6-6-20-30-60R0.5 | 6.0 | 6 | 20 | 30 | 60 | 4 | 0.5 |
DIR6-6-25-35-60R0.5 | 6.0 | 6 | 25 | 35 | 75 | 4 | 0.5 |
DIR6-6-20-40-100R0.5 | 6.0 | 6 | 25 | 40 | 100 | 4 | 0.5 |
DIR8-8-21-30-60R0.5 | 8.0 | 8 | 21 | 30 | 60 | 4 | 0.5 |
DIR8-8-30-40-80R0.5 | 8.0 | 8 | 30 | 40 | 80 | 4 | 0.5 |
DIR8-8-32-60-110R0.5 | 8.0 | 8 | 32 | 60 | 110 | 4 | 0.5 |
DIR8-8-31-60-150R0.5 | 8.0 | 8 | 31 | 60 | 150 | 4 | 0.5 |
DIR8-8-30-40-110R1 | 8.0 | 8 | 30 | 40 | 80 | 4 | 1 |
DIR8-8-30-60-110R1 | 8.0 | 8 | 30 | 60 | 110 | 4 | 1 |
DIR10-10-30-40-80R0.5 | 10.0 | 10 | 30 | 40 | 80 | 4 | 0.5 |
DIR10-10-35-60-110R0.5 | 10.0 | 10 | 35 | 60 | 110 | 4 | 0.5 |
DIR10-10-35-60-150R0.5 | 10.0 | 10 | 35 | 60 | 150 | 4 | 0.5 |
DIR10-10-35-40-80R1 | 10.0 | 10 | 35 | 40 | 80 | 4 | 1 |
DIR10-10-35-60-110R1 | 10.0 | 10 | 35 | 60 | 110 | 4 | 1 |
DIR10-10-35-60-150R1 | 10.0 | 10 | 35 | 60 | 150 | 4 | 1 |
DIR12-12-30-40-80R0.5 | 12.0 | 12 | 30 | 40 | 80 | 4 | 0.5 |
DIR12-12-40-40-110R0.5 | 12.0 | 12 | 40 | 40 | 110 | 4 | 0.5 |
DIR12-12-40-60-150R0.5 | 12.0 | 12 | 40 | 60 | 150 | 4 | 0.5 |
DIR12-12-40-60-150R1 | 12.0 | 12 | 40 | 60 | 150 | 4 | 1 |
Ball Nose end millsPart No. | Flute dia | Flute Num | Flute Length | Available Length | Total Length | Shank Dia | Corner Radius |
DIB0.3-2-4-0.7-3-50 | 0.3 | 2 | 0.7 | 3 | 50 | 4 | 0.15 |
DIB0.4-2-3-1-4-50 | 0.4 | 2 | 1 | 4 | 50 | 3 | 0.2 |
DIB0.4-2-3-1-6-50 | 0.4 | 2 | 1 | 6 | 50 | 4 | 0.2 |
DIB0.5-2-1.5-6-50 | 0.5 | 2 | 1.5 | 6 | 50 | 4 | 0.25 |
DIB0.5-2-1.5-8-50 | 0.5 | 2 | 1.5 | 8 | 50 | 4 | 0.25 |
DIB0.6-2-1.5-6-50 | 0.6 | 2 | 1.5 | 6 | 50 | 4 | 0.3 |
DIB0.6-2-1.5-8-50 | 0.6 | 2 | 1.5 | 8 | 50 | 4 | 0.3 |
DIB0.8-2-1.8-4-50 | 0.8 | 2 | 1.8 | 4 | 50 | 4 | 0.4 |
DIB0.8-2-1.8-10-60 | 0.8 | 2 | 1.8 | 10 | 60 | 4 | 0.4 |
DIB0.8-2-1.8-12-60 | 0.8 | 2 | 1.8 | 12 | 60 | 3 | 0.4 |
DIB1-2-1.6-8-50 | 1.0 | 2 | 1.6 | 8 | 50 | 4 | 0.5 |
DIB1-2-1.5-12-60 | 1.0 | 2 | 1.5 | 12 | 60 | 4 | 0.5 |
DIB1-2-1.5-15-60 | 1.0 | 2 | 1.5 | 15 | 60 | 4 | 0.5 |
DIB1-2-1.5-25-60 | 1.0 | 2 | 1.5 | 20 | 60 | 4 | 0.5 |
DIB1-2-1.5-25-75 | 1.0 | 2 | 1.5 | 25 | 75 | 4 | 0.5 |
DIB1-2-1.5-30-80 | 1.0 | 2 | 1.5 | 30 | 80 | 4 | 0.5 |
DIB1-2-1.5-40-100 | 1.0 | 2 | 1.5 | 40 | 100 | 4 | 0.5 |
DIB1.5-2-2.4-8-60 | 1.5 | 2 | 2.4 | 8 | 60 | 4 | 0.75 |
DIB1-2-1.5-40-100 | 1.5 | 2 | 2.4 | 10 | 60 | 4 | 0.75 |
DIB1.5-2-2.4-15-60 | 1.5 | 2 | 2.4 | 15 | 60 | 4 | 0.75 |
DIB1.5-2-2.4-20-60 | 1.5 | 2 | 2.4 | 20 | 60 | 4 | 0.75 |
DIB1.5-2-2.4-25-75 | 1.5 | 2 | 2.4 | 25 | 75 | 4 | 0.75 |
DIB2.0-2-6-6-50 | 2.0 | 2 | 6 | 6 | 50 | 4 | 1 |
DIB2.0-2-3-10-60 | 2.0 | 2 | 3 | 10 | 60 | 4 | 1 |
DIB2-2-3-12-60 | 2.0 | 2 | 3 | 12 | 60 | 4 | 1 |
DIB2-2-3-16-60 | 2.0 | 2 | 3 | 16 | 60 | 4 | 1 |
DIB2-2-3-20-60 | 2.0 | 2 | 3 | 20 | 60 | 4 | 1 |
DIB2-2-3-30-75 | 2.0 | 2 | 3 | 30 | 75 | 4 | 1 |
DIB2-2-3-40-100 | 2.0 | 2 | 3 | 40 | 100 | 4 | 1 |
DIB2-2-3-60-100 | 2.0 | 2 | 3 | 60 | 100 | 4 | 1 |
DIB3-2-6-10-60 | 3.0 | 2 | 6 | 10 | 60 | 3 | 1.5 |
DIB3-4-15-15-60 | 3.0 | 4 | 15 | 15 | 60 | 3 | 1.5 |
DIB3-4-20-20-75 | 3.0 | 4 | 20 | 20 | 75 | 3 | 1.5 |
DIB3-2-6-20-100 | 3.0 | 2 | 6 | 20 | 100 | 3 | 1.5 |
DIB3-2-6-35-75 | 3.0 | 2 | 6 | 35 | 75 | 6 | 1.5 |
DIB4-4-15-15-60 | 4.0 | 4 | 15 | 15 | 60 | 4 | 2 |
DIB3-2-6-35-75 | 4.0 | 4 | 8 | 20 | 75 | 4 | 2 |
DIB4-4-15-15-60 | 4.0 | 2 | 8 | 25 | 75 | 4 | 2 |
DIB4-4-8-20-75 | 4.0 | 2 | 8 | 20 | 100 | 4 | 2 |
DIB4-2-8-25-75 | 5.0 | 2 | 9 | 20 | 60 | 6 | 2.5 |
DIB4-2-8-20-100 | 6.0 | 2 | 15 | 15 | 60 | 6 | 3 |
DIB5-2-9-20-60 | 6.0 | 2 | 12 | 35 | 75 | 6 | 3 |
DIB6-2-15-15-60 | 6.0 | 4 | 12 | 40 | 100 | 6 | 3 |
DIB6-2-12-35-75 | 6.0 | 4 | 30 | 60 | 150 | 6 | 3 |
DIB6-4-12-40-100 | 8.0 | 2 | 16 | 40 | 80 | 8 | 4 |
DIB6-4-30-60-150 | 8.0 | 2 | 18 | 60 | 110 | 8 | 4 |
DIB8-2-16-40-80 | 8.0 | 2 | 16 | 60 | 150 | 10 | 4 |
DIB10-2-22-40-80 | 10.0 | 2 | 22 | 40 | 80 | 10 | 5 |
DIB10-2-25-60-110 | 10.0 | 2 | 25 | 60 | 110 | 10 | 5 |
DIB10-2-25-60-150 | 10.0 | 2 | 25 | 60 | 150 | 10 | 5 |
DIB10-2-50-70-180 | 10.0 | 2 | 50 | 70 | 180 | 12 | 5 |
DIB12-2-23-40-80 | 12.0 | 2 | 23 | 40 | 80 | 12 | 6 |
DIB12-2-25-60-110 | 12.0 | 2 | 25 | 60 | 110 | 12 | 6 |
DIB12-2-25-60-150 | 12.0 | 2 | 25 | 60 | 150 | 12 | 6 |
Square end millsPart No. | Flute dia | Flute Num | FLute Length | Available Length | Total Length | Shank Dia |
DIE0.2-2-0.8-2-50 | 0.2 | 2 | 0.8 | 2 | 50 | 4 |
DIE0.3-2-1-3-50 | 0.3 | 2 | 1 | 3 | 50 | 4 |
DIE0.3-2-1-5-50 | 0.3 | 2 | 1 | 5 | 50 | 4 |
DIE0.4-2-1.2-4-50 | 0.4 | 2 | 1.2 | 4 | 50 | 4 |
DIE0.4-2-1.2-6-50 | 0.4 | 2 | 1.2 | 6 | 50 | 4 |
DIE0.5-2-1-4-50 | 0.5 | 2 | 1 | 4 | 50 | 4 |
DIE0.5-2-1-6-50 | 0.5 | 2 | 1 | 6 | 50 | 4 |
DIE0.5-2-1-8-50 | 0.5 | 2 | 1 | 8 | 50 | 4 |
DIE0.5-2-1-10-50 | 0.5 | 2 | 1 | 10 | 50 | 4 |
DIE0.6-2-1.5-4-50 | 0.6 | 2 | 1.5 | 4 | 50 | 4 |
DIE0.6-2-1.5-12-50 | 0.6 | 2 | 1.5 | 12 | 50 | 4 |
DIE0.8-2-1.6-4-50 | 0.8 | 2 | 1.6 | 4 | 50 | 4 |
DIE0.8-2-1.6-8-50 | 0.8 | 2 | 1.6 | 8 | 50 | 4 |
DIE0.8-2-1.6-10-60 | 0.8 | 2 | 1.6 | 10 | 60 | 4 |
DIE0.8-2-1.6-12-60 | 0.8 | 2 | 1.6 | 12 | 60 | 4 |
DIE1.0-2-2.5-3-50 | 1.0 | 2 | 2.5 | 3 | 50 | 4 |
DIE1.0-2-2.5-6-50 | 1.0 | 2 | 2.5 | 6 | 50 | 4 |
DIE1.0-2-2.5-8-60 | 1.0 | 2 | 2.5 | 8 | 60 | 4 |
DIE1.0-4-2.5-10-60 | 1.0 | 4 | 2.5 | 10 | 60 | 4 |
DIE1.0-2-2.5-10-60 | 1.0 | 2 | 2.5 | 10 | 60 | 4 |
DIE1.0-2-2.5-12-60 | 1.0 | 2 | 2.5 | 12 | 60 | 4 |
DIE1.0-2-2.5-15-60 | 1.0 | 2 | 2.5 | 15 | 60 | 4 |
DIE1.0-2-2.5-20-60 | 1.0 | 2 | 2.5 | 20 | 60 | 4 |
DIE1.0-2-2.5-20-75 | 1.0 | 2 | 2.5 | 20 | 75 | 4 |
DIE1.5-2-3-5-60 | 1.5 | 2 | 3 | 5 | 60 | 4 |
DIE1.5-2-3-10-60 | 1.5 | 2 | 3 | 10 | 60 | 4 |
DIE1.5-2-3-15-60 | 1.5 | 2 | 3 | 15 | 60 | 4 |
DIE1.5-4-3-10-60 | 1.5 | 4 | 3 | 10 | 60 | 4 |
DIE1.5-4-3-15-60 | 1.5 | 4 | 3 | 15 | 60 | 4 |
DIE1.5-2-3-20-60 | 1.5 | 2 | 3 | 20 | 60 | 4 |
DIE1.5-2-3-25-75 | 1.5 | 2 | 3 | 25 | 75 | 4 |
DIE2-2-6-6-50 | 2.0 | 2 | 6 | 6 | 50 | 4 |
DIE2-4-5-10-60 | 2.0 | 4 | 5 | 10 | 60 | 4 |
DIE2-2-5-12-60 | 2.0 | 2 | 5 | 12 | 60 | 4 |
DIE2-2-5-16-60 | 2.0 | 2 | 5 | 16 | 60 | 4 |
DIE2-2-5-20-60 | 2.0 | 2 | 5 | 20 | 60 | 4 |
DIE2-2-5-25-75 | 2.0 | 2 | 5 | 25 | 75 | 4 |
DIE2-4-5-40-100 | 2.0 | 4 | 5 | 40 | 100 | 4 |
DIE3-4-9-9-50 | 3.0 | 4 | 9 | 9 | 50 | 3 |
DIE3-4-12-12-60 | 3.0 | 4 | 12 | 12 | 60 | 3 |
DIE3-4-15-15-75 | 3.0 | 4 | 15 | 15 | 75 | 3 |
DIE3-4-15-15-100 | 3.0 | 4 | 15 | 15 | 100 | 3 |
DIE4-4-20-20-60 | 4.0 | 4 | 20 | 20 | 60 | 4 |
DIE4-4-20-20-75 | 4.0 | 4 | 20 | 20 | 75 | 4 |
DIE4-4-20-30-75 | 4.0 | 4 | 20 | 30 | 75 | 4 |
DIE4-4-20-30-100 | 4.0 | 4 | 20 | 30 | 100 | 4 |
DIE5-4-20-20-60 | 5.0 | 4 | 20 | 20 | 60 | 6 |
DIE6-4-20-30-60 | 6.0 | 4 | 20 | 30 | 60 | 6 |
DIE6-4-25-35-75 | 6.0 | 4 | 25 | 35 | 75 | 6 |
DIE6-4-25-40-100 | 6.0 | 4 | 25 | 40 | 100 | 6 |
DIE6-4-25-60-150 | 6.0 | 4 | 25 | 60 | 150 | 6 |
DIE8-4-23-23-60 | 8.0 | 4 | 23 | 23 | 60 | 8 |
DIE8-4-30-40-80 | 8.0 | 4 | 30 | 40 | 80 | 8 |
DIE8-4-30-60-110 | 8.0 | 4 | 30 | 60 | 110 | 8 |
DIE8-4-30-60-150 | 8.0 | 4 | 30 | 60 | 150 | 8 |
DIE10-4-25-40-80 | 10.0 | 4 | 25 | 40 | 80 | 10 |
DIE10-4-25-40-100 | 10.0 | 4 | 25 | 40 | 100 | 10 |
DIE10-4-35-60-110 | 10.0 | 4 | 35 | 60 | 110 | 10 |
DIE10-4-35-60-150 | 10.0 | 4 | 35 | 60 | 150 | 10 |
DIE12-4-30-40-80 | 12.0 | 4 | 30 | 40 | 80 | 12 |
DIE12-4-40-60-110 | 12.0 | 4 | 40 | 60 | 110 | 12 |
DIE12-4-40-60-150 | 12.0 | 4 | 40 | 60 | 150 | 12 |
DIE12-4-40-60-200 | 12.0 | 4 | 40 | 60 | 200 | 12 |
DIE16-4-40-100-150 | 16.0 | 4 | 40 | 100 | 150 | 16 |
DIE16-4-40-110-180 | 16.0 | 4 | 40 | 110 | 180 | 16 |
| | | | | | | | | |
Technique ParameterSuggested process parameterRough cut(mm) | Line Speed(m/min) | Cutting depth of each Flute | Rotating speed(rpm) |
1.0 | 94 | 0.012 | 30000 |
1.2 | 113 | 0.015 | 30000 |
1.5 | 141 | 0.020 | 30000 |
2.0 | 188 | 0.029 | 30000 |
3.0 | 226 | 0.037 | 24000 |
4.0 | 276 | 0.052 | 22000 |
5.0 | 346 | 0.069 | 22000 |
6.0 | 405 | 0.078 | 21500 |
8.0 | 402 | 0.112 | 16000 |
10.0 | 408 | 0.115 | 13000 |
12.0 | 396 | 0.112 | 10500 |
Finishing cut(mm) | Line Speed(m/min) | Cutting depth of each Flute | Rotating speed(rpm) |
1.0 | 94 | 0.010 | 30000 |
1.2 | 113 | 0.013 | 30000 |
1.5 | 141 | 0.018 | 30000 |
2.0 | 188 | 0.026 | 30000 |
3.0 | 272 | 0.034 | 29000 |
4.0 | 335 | 0.047 | 26500 |
5.0 | 351 | 0.062 | 22000 |
6.0 | 367 | 0.071 | 19500 |
8.0 | 284 | 0.100 | 11500 |
10.0 | 340 | 0.103 | 10500 |
12.0 | 378 | 0.110 | 10000 |
Note: If not compressed air, the amount of per blade and cutting line speed will be reduced by 40%Highlights1. 100% pure diamond crystal coating thickness range of 3 ~ 30μm, the service life is 10 times the untreated tool, diamond-like coating tool is 3 times.- Adopting Nanoscale diamond coating. With features as high hardness, good wear resistance, low friction coefficient, at this stage diamond coating is the best choice for graphite processing tools, also it best embodies the superior performance of graphite cutting tools; diamond coated carbide tool has the advantage of combined with the hardness of natural diamond and carbide strength and fracture toughness; can improve the service life of nearly 10-20 times the tool
- Diamond Purity and nonoscale Particle and NPT processing technology can assure high hardness, Adhesive force of coating and high precision.
Application Range:- High precision graphite electrode parts
- Denture, zirconium dioxide and ceramic processing
- Carbon fiber new composite material
- High silicon aluminum material

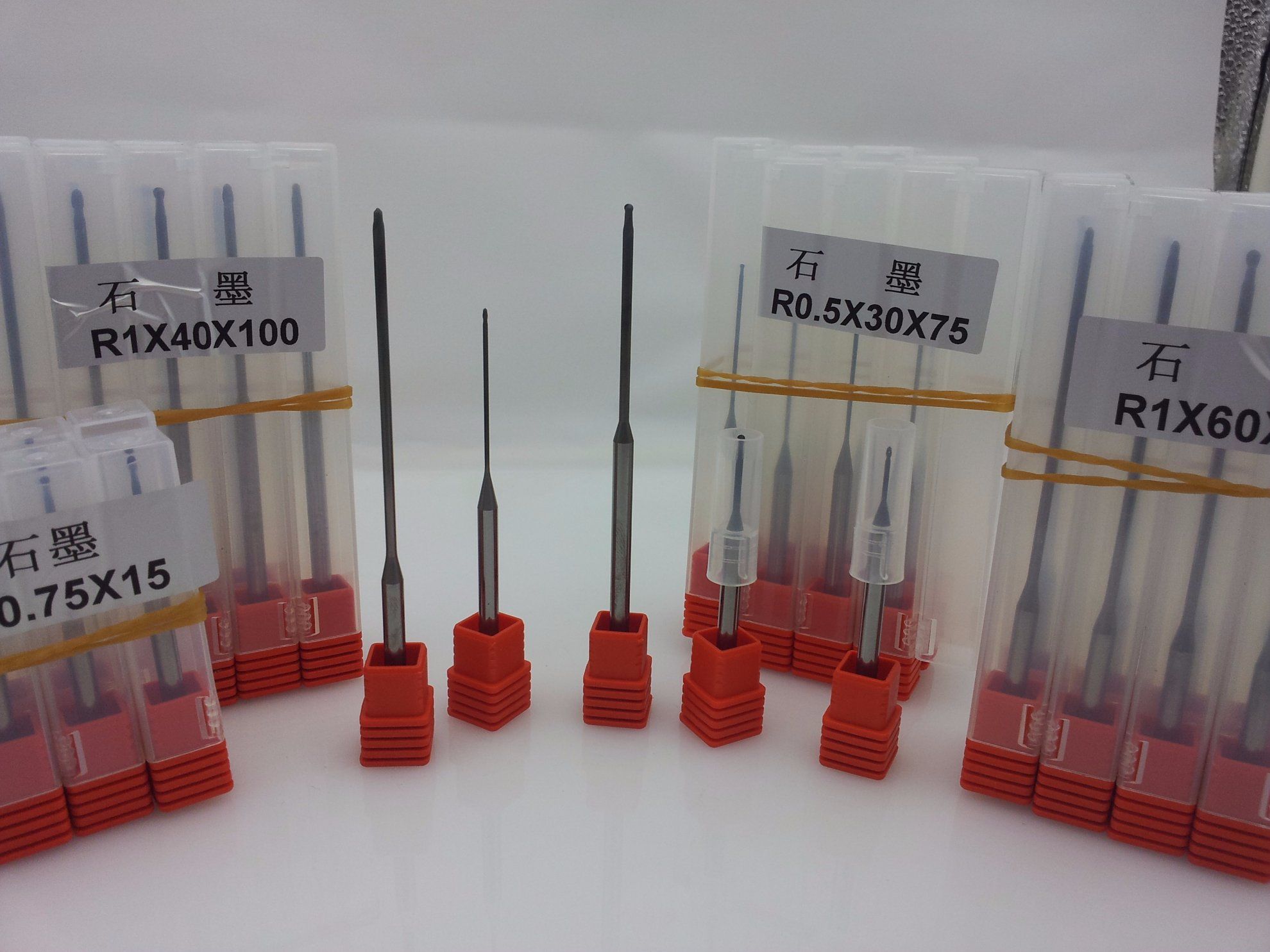

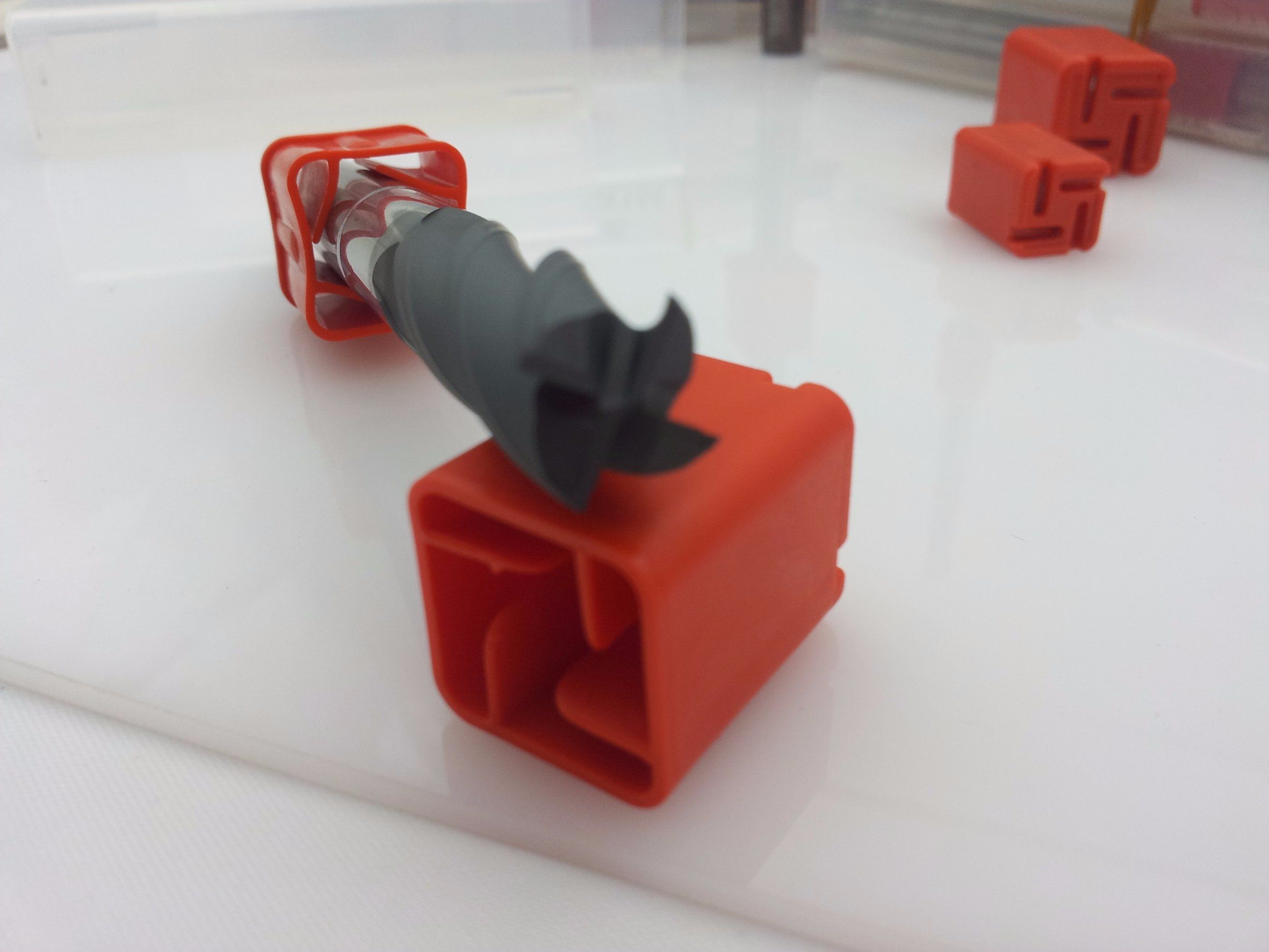

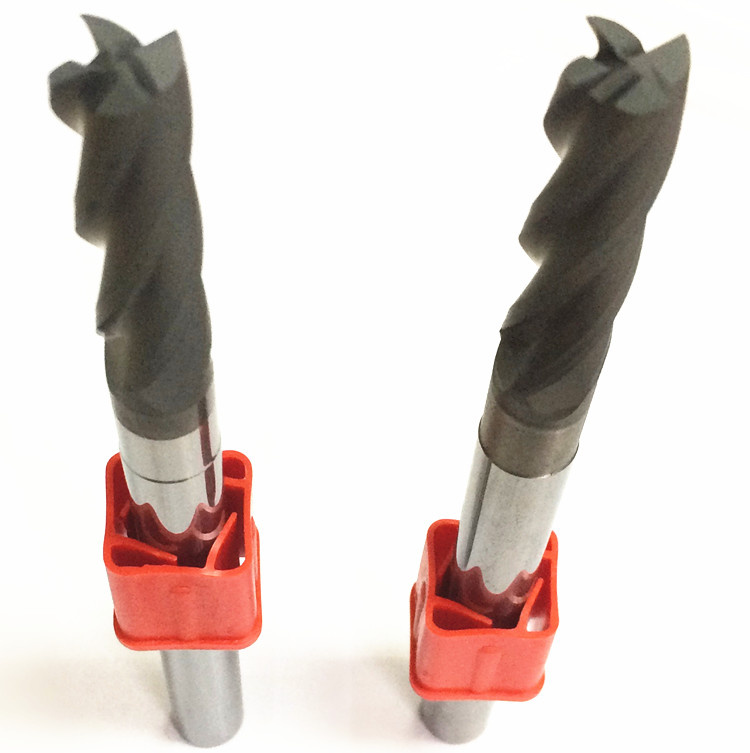

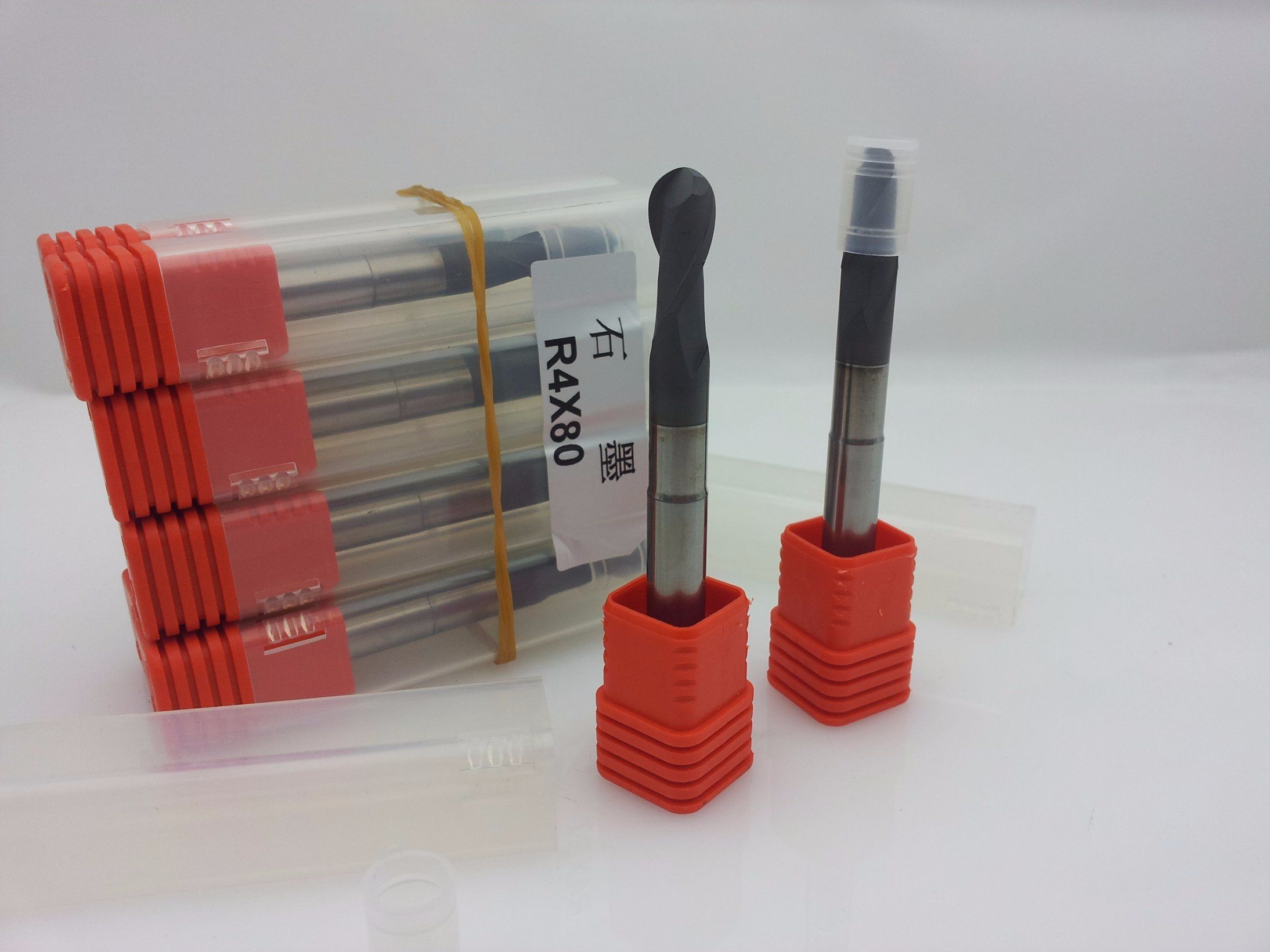

Product Picture
