| Prod Model: |
HZ337 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
105-230mm |
| Inner Hole Size: |
16/20/22.23mm |
| Material: |
Diamond |
| Customized: |
Customized |
Product Description

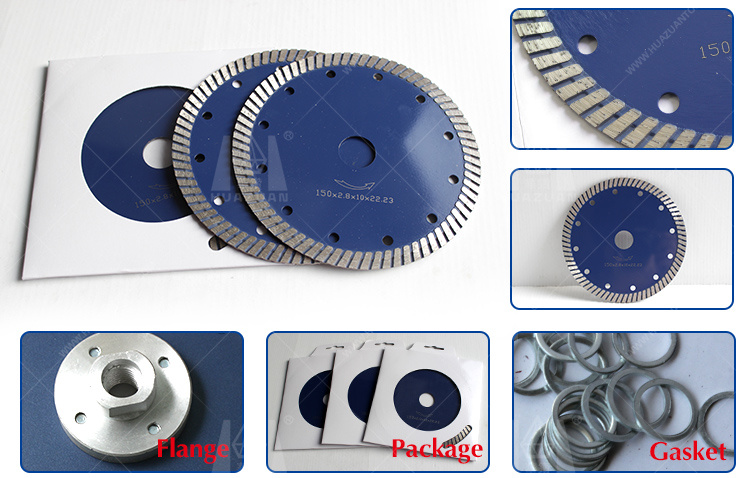

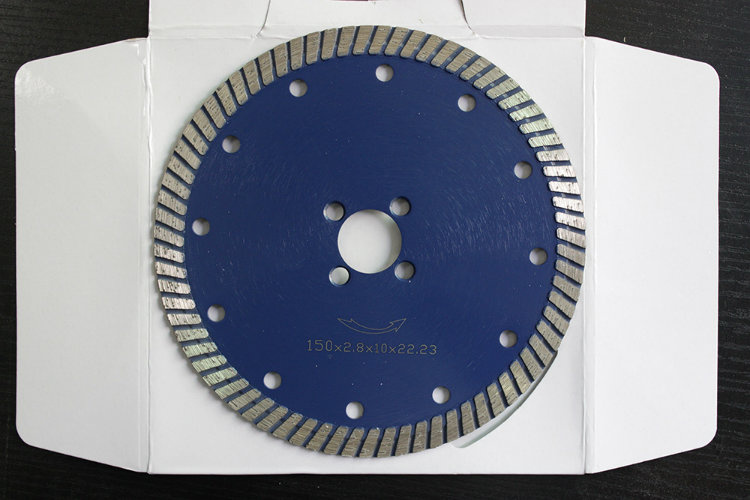

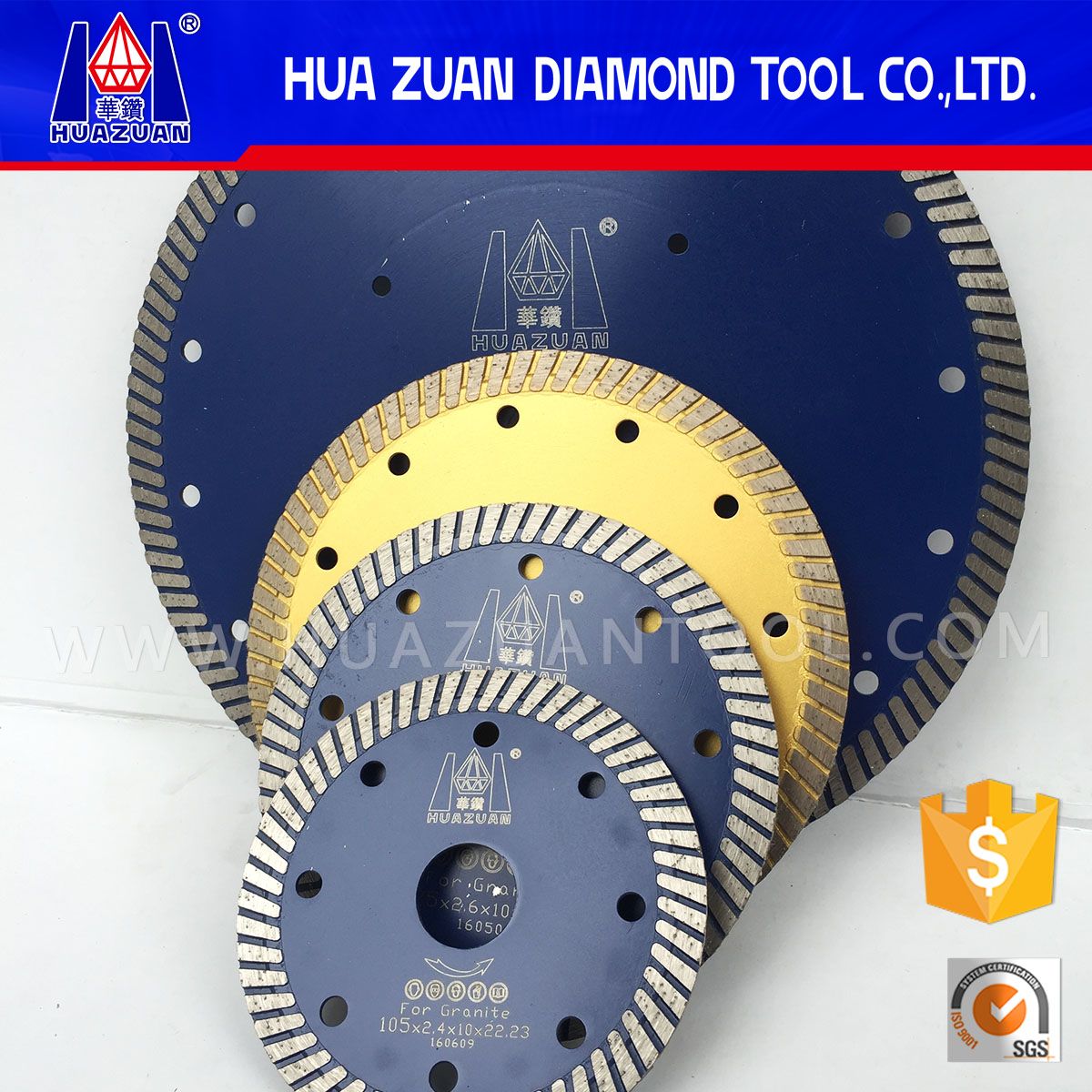

Diamond continuous rim Turbo Granite BladesManufacturing process: Sintered
1. Stable performance
2. Good Cutting effect
| Product description |
| Product name: | Turbo Granite Blade |
| Brand: | Huazuan or OEM |
Specification: |
1.Size:4"-9"(105mm-230mm)
2.Segment height:8/10/12mm
3.Inner hole:16mm/20mm/22.23mm/25.4mm |
Features: |
Multi-application saw blades suitable for fast ,free,smooth cutting. |
Application: |
Tile,bricks,brick blocks,concrete,marble,granite,stone and many other materials |
Machinery: |
Angle grinder,circular saw,masonry saw,table saw |
| Technology: | Cold pressing and hot pressing |
Quality Control: |
1. Strict Raw material inspection
2. Professional formula
3. Production process control(PDCA+7S Principle)
4. Do some cutting testing to sure the using function
5. Products pass SGS inspection |
| MOQ: | 100PCS for each size |
| Payment term: | TT,western union,PAYPAL etc |
| Package: | Plastic bag/paper bag+wooden bag or custom made |
The specification of Turbo Granite BladesOther specifications and sizes are available upon request
| Diameter | Bore | Segment | Segment |
| mm | inch | Size(mm/inch) | Thickness(mm) | Height(mm) |
| 105 | 4" | 20/0.787" | 1.8 | 8/10/12 |
| 110 | 4.3" | 20/0.787" | 1.8 | 8/10/12 |
| 115 | 4.5" | 22.23/0.875" | 1.8 | 8/10/12 |
| 125 | 5" | 22.23/0.875" | 2.0 | 8/10/12 |
| 150 | 6" | 22.23/0.875" | 2.2 | 8/10/12 |
| 180 | 7" | 22.23/0.875" | 2.4 | 8/10/12 |
| 200 | 8" | 22.23/0.875" | 2.4 | 8/10/12 |
| 230 | 9" | 22.23/0.875" | 2.6 | 8/10/12 |
| 250 | 10" | 22.23/0.875" | 2.8 | 8/10/12 |
Attention when use:
1. Before saw blade installed, pollutions adhering between saw blade and flange shall be removed,
when installing saw blade, the marked direction shall be kept consistent with the rotating
direction of electric tools, and flange shall be fastened by spanner attached to electric tools
2. Do not use any saw blade that has been deformed for being pressed of crashed
3. When operating, operator must wear safety helmet, safety footwear and goggles, protective glove,additionally, if necessary operator must use earplug, mask and so on
4. Electric tools shall have protective cover

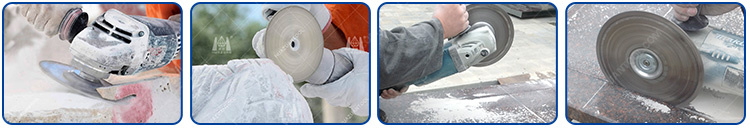

The application of Turbo Granite Blades
Why Choose us?1.We are reliable Alibaba Gold Supplier,Support Trade Assurance
2.We are leading manufacturer in diamond tools, more than 20 years experience
3.Rich experience in Global market, export to more than 60 countries.
4.100% QC inspection Before Shipment
5.Keep researching and developing the latest technology
6.Reply within 24 hours.
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
