| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Welding |
| Connector: |
Shank, M14, M16, 5/8"-11, Gas1/2"for CNC Machine |
Product Description

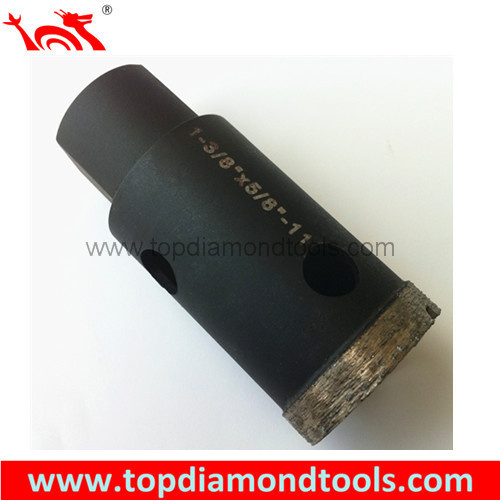

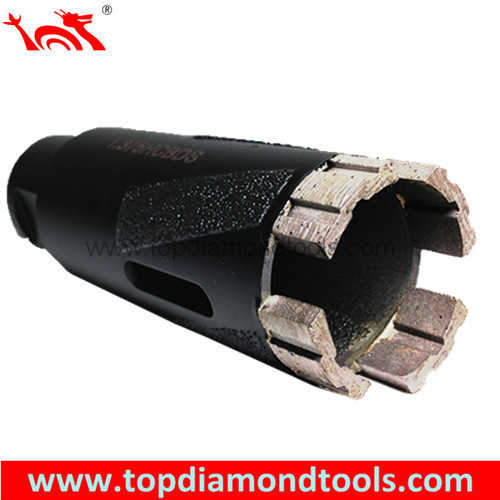

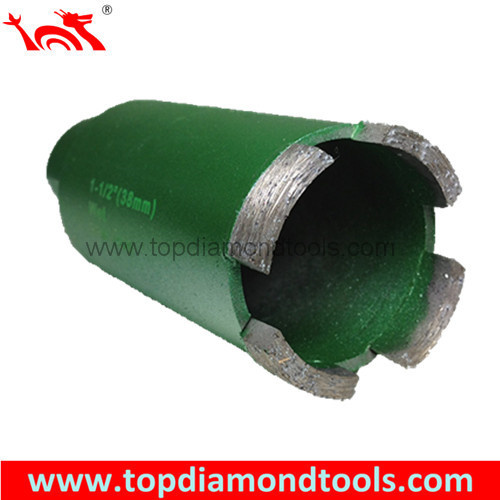

Diamond Core Drill Bits with Turbo segments and pipe diamond vacuum brazed for dry drilling granite or hard stone, common uses would be small projects such as drilling out sink holes for faucets or small holes on slabs.
Welding Type: Silver Welding
Applications: Kinds of granite or hard stone.
Machinery: Suitable for stand drilling machines or Electrical hand-held drillers or CNC machines.
Wet or dry use, this type drill bit is specially designed for dry use.
Remarks:
1. Turbo Shape Diamond Segments provide faster drilling speed than normal drill bits.
(Special material for Segments brazing)

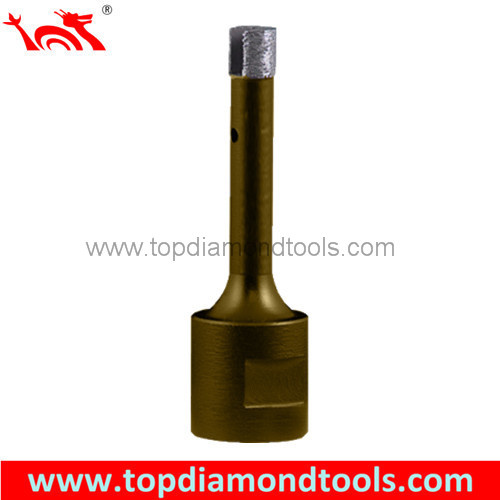

2. Diamond vacuum brazed on the surface of steel pipe.
|
Iten |
Diameter |
Segment Size |
Use |
Pipe Length |
Welding Method |
Adaptor |
|
Diamond Core Drill Bits With Turbo Segment For Dry Drilling |
29mm (1-1/8") |
16x2.5x10 |
Wet
or
Dry |
4"
(100mm) |
Silver Welding
or
Laser Welding |
5/8"-11
M14
1/2 Gas |
|
32mm (1-1/4") |
16x3x10 |
|
35mm (1-3/8") |
16x3x10 |
|
38mm (1-1/2") |
16x3x10 |
|
42mm (1-5/8") |
16x3x10 |
|
45mm (1-3/4") |
16x3x10 |
|
50/51mm (2") |
16x3x10 |
|
57mm (2-1/4") |
22x3.5x10 |
|
60mm (2-3/8") |
22x3.5x10 |
|
63mm (2-1/2") |
22x3.5x10 |
|
70mm (2-3/4") |
22x3.5x10 |
|
76mm (3") |
22x3.5x10 |
|
80mm (3-1/8" |
22x3.5x10 |
|
89mm (3-1/2") |
22x3.5x10 |
|
102mm (4") |
22x3.5x10 |
|
110mm (4-3/8") |
22x3.5x10 |
|
127mm (5") |
24x4x10 |
