| Prod Model: |
ZIZ- Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Shaft: |
3 |
| Certification: |
CE, ISO 9001 |
| Controlling Mode: |
CNC |
| Precision: |
High Precision |
| Automatic Grade: |
Semiautomatic |
| Structure: |
Vertical Drilling Machine |
| Hole Diameter: |
130mm-350mm |
| Layout: |
Vertical & Horizontal |
| Material: |
Diamond |
| Condition: |
New |
Product Description

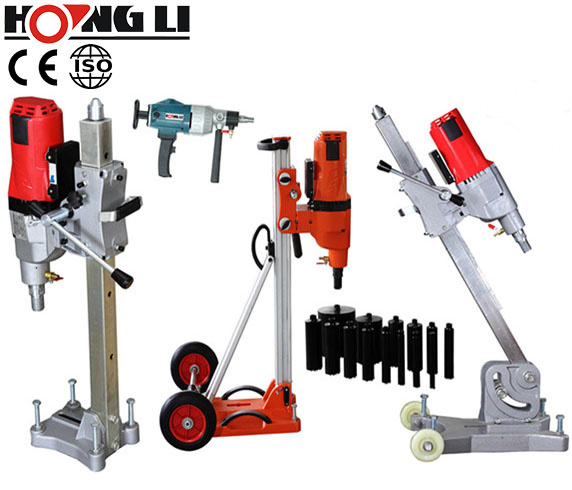

Diamond Core Drill Machines (ZIZ- Series)
Featuring
1. Universal drive machine for dry or wet drilling .
2. Versatile and efficient, drilling in steel-reinforced concrete, masonry and other materials
3. For pipeline and cable ducting, ventilation channels, test core drilling.
4. Adjustable drilling, suitable in use of special required situations.
5. Max drill capacity up to 350mm in diameter
6. Suitable for kinds of diamond drill bits, heavy-duty and multi-purpose
Specifications
1.Core drill ZIZ 130
Motor: 1350w,universal type
No-load speed: 2300rpm
Max drill capacity: 130mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
2.Core drill ZIZ 160
Motor: 2000w, universal type
No-load speed: 2000rpm
Max drill capacity: 160mm in diameter
Net weight: 9 KG
3.Core drill ZIZ 200
Motor: 3000w, universal type
No-load speed: 630rpm
Max drill capacity: 200mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1 1/4"-7 UNC
4.Core drill ZIZ 200
Motor: 3000w, universal type
No-load speed: 360/720rpm
Max drill capacity: 200mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
5.Core drill ZIZ 250
Motor: 3500w, universal type
No-load speed: 600rpm
Max drill capacity: 250mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
6.Core drill ZIZ 250
Motor: 3500w, universal type
No-load speed: 360/720rpm
Max drill capacity: 250mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
7.Core drill ZIZ 250A
Motor: 3500w, universal type
No-load speed: 600rpm
Max drill capacity: 250mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
Adjustable angle:0-90 degree
8.Core drill ZIZ 250A
Motor: 3500w, universal type
No-load speed: 360/720rpm
Max drill capacity: 250mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
Adjustable angle:0-90 degree

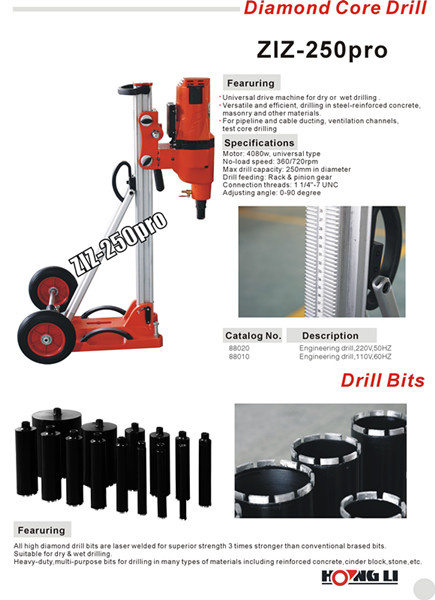

9.Core drill ZIZ 250pro
Cast alluminum stand, light-weight
Motor: 4080w, universal type
No-load speed: 360/720rpm
Max drill capacity: 250mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC
Adjusting angle: 0-90 degree
10.Core drill ZIZ 350
Motor: 3500w, universal type
No-load speed: 600rpm
Max drill capacity: 350mm in diameter
Drill feeding: Rack & pinion gear
Connection threads: 1/4"-7 UNC

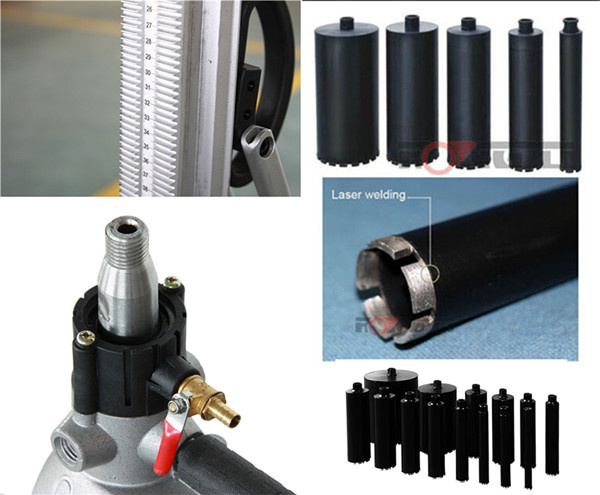

Detail Parts of the Diamond Core Drill Machines
Hongli Pipe Machinery will always advance with
the times in the Machinery World!
Since the foundation of Huaxing Machinery Factory (our initial company) in 1988, R&D is one of our main focuses. It's our belief that creativity and innovation is the key to success. In the past 20+ years, our engineers and technicians contributed lots of intelligence and efforts to many products. With these innovative products, we enjoy a high reputation in the range of pipe machinery.
You can surely trust us!!!
| Ordering Information |
|
| Cat no. | Model no. | Description | Weight |
| 85020 | ZIZ-130 | Diamond core drill,220V,50HZ | 12kg |
| 85010 | ZIZ-130 | Diamond core drill,110V,60HZ | 12kg |
| ZIZ-160 | Diamond core drill,220V,50HZ | 9kg |
| ZIZ-160 | Diamond core drill,110V,60HZ | 9kg |
| 87020 | ZIZ-200 | Diamond core drill,220V,50HZ | 25kg |
| 87010 | ZIZ-200 | Diamond core drill,110V,60HZ | 25kg |
| 88020 | ZIZ-250 | Diamond core drill,220V,50HZ | 25kg |
| 88010 | ZIZ-250 | Diamond core drill,110V,60HZ | 25kg |
| 88025 | ZIZ-250A | Diamond core drill,220V,50HZ | 25kg |
| 88015 | ZIZ-250A | Diamond core drill,110V,60HZ | 25kg |
| 89020 | ZIZ-350 | Diamond core drill,220V,50HZ | 27kg |
| 89010 | ZIZ-350 | Diamond core drill,110V,60HZ | 27kg
|
