| Prod Model: |
28mm~318mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Graininess: |
100# |
| Shape: |
Round |
| Brand: |
SATA |
Product Description

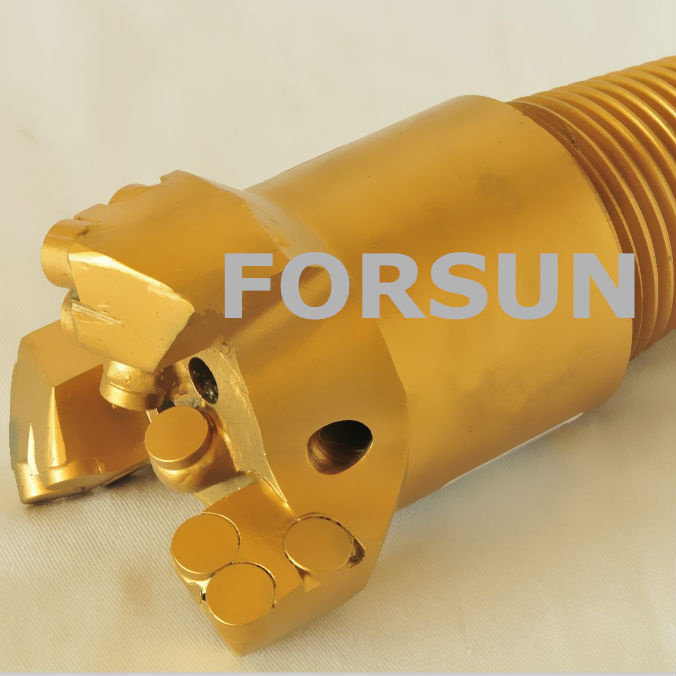

Product profile: Tungsten Carbide Core Bit
Tungsten Carbide Core Bits are designed especially for soil investigation and geotechnical drilling, but also suitable in some applications for mineral exploration. As the tungsten Carbide is softer than diamond stones, the formations which these bits are able to handle are limited in the range of soft or some medium rocks. Like the overburden drilling, cleaning of drill holes, e. G. For the removal of steel fragments from a drill hole.
Forsun provides two types of T. C. Core Bits:
Standard T. C. Core Bit
Unless otherwise specified, the octagonal inserts is the standard for this type of T. C. Core bits, with various sizes according to different bit kerf widths.
Carbotec T. C. Core Bits
Carbotec bit is another type of tungsten carbide bits, consisting of tungsten carbide fragments fused together to form a crown with multiple cutting edges. They are particularly effective for cutting in formations which are highly fractured or contain loose pebbles. Carbotec T. C. Bit causes less vibration and offer better core recovery than standard T. C. Bits.
Size Available:
1. A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
2. B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
3. N-Gauge Core Bits: NQ, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW
4. H-Gauge Core Bits: NQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
5. P- Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
6. S- Gauge Core Bits: SWF-Long, SWF-Short
7. U- Gauge Core Bits: UWF-Long, UWF-Short
8. Z- Gauge Core Bits: ZWF-Long, ZWF-Short
9. T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
10. T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
11. T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
12. B Series(ISO3552-1) Metric Core Bits: B36, B46, B56, B65, B76, B86, B101, B116, B131, B146
13. Chinese Standard Metric Core Bits for Single Tube Core Barrels: φ 36, φ 46, φ 56, φ 59, φ 75, φ 91, φ 110, φ 130, φ 160, φ 170, φ 219, φ 275
14. Chinese Standard Metric Core Bits for Double Tube Core Barrels: φ 56, φ 59, φ 75, φ 91
15. Chinese Standard Metric Core Bits for Wireline Core Barrels: φ 59, φ 75, φ 91
We can manufacture all kinds of I diamond core drill bits and reaming shells according to customer's special requirement...
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
