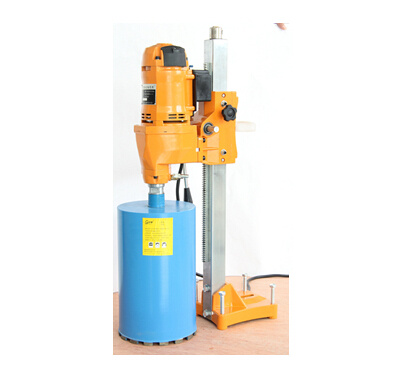

Diamond Core Drilling Machine
| Price: |
US $ 500-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Drilling Diameter: |
250mm |
| Rated Voltage: |
110/220/240V |
| Rated Frequency: |
50-60Hz |
| Rated Input Power: |
3300W |
Product Description
| Name | Type | Parameter | |
| Diamond core drill | 200F
| Max. Drilling Diameter | ¢200mm | |
| Rated Voltage | 110/220/240V~ | |
| Rated frequency | 50-60Hz | |
| Rated input power | 2500W | |
| No-load speed | 700r/min | |
| Net weight | 24KG | |
| Package dimension | 84*34*23CM | |
| Diamond core drill | 250
| Max.Drilling Diameter | ¢250mm |
| Rated Voltage | 110/220/240V~ |
| Rated frequency | 50-60Hz |
| Rated input power | 3300W |
| No-load speed | 700r/min |
| Net weight | 33KG |
Core bit parameter
| Inner diameter*Length | Outer diameter*Length |
| φ50*400 | φ57*400 |
| φ70*400 | φ76*400 |
| φ75*400 | φ83*400 |
| φ100*400 | φ108*400 |
| φ150*400 | φ159*400 |
| φ192*400 | φ202*400 |
The tooth numbers will be depended on the drilling material, such as asphalt, concrete and stable layer of cement limestone. There are 8pcs teeth for D75mm, 10pcs teeth for D100mm, and 13pcs teeth for D150mm for drilling the concrete.
| Name | Type | Parameter | |
| Diamond core drill | 200F
| Max. Drilling Diameter | ¢200mm | |
| Rated Voltage | 110/220/240V~ | |
| Rated frequency | 50-60Hz | |
| Rated input power | 2500W | |
| No-load speed | 700r/min | |
| Net weight | 24KG | |
| Package dimension | 84*34*23CM | |
| Diamond core drill | 250
| Max.Drilling Diameter | ¢250mm |
| Rated Voltage | 110/220/240V~ |
| Rated frequency | 50-60Hz |
| Rated input power | 3300W |
| No-load speed | 700r/min |
| Net weight | 33KG |
Core bit parameter
| Inner diameter*Length | Outer diameter*Length |
| φ50*400 | φ57*400 |
| φ70*400 | φ76*400 |
| φ75*400 | φ83*400 |
| φ100*400 | φ108*400 |
| φ150*400 | φ159*400 |
| φ192*400 | φ202*400 |
The tooth numbers will be depended on the drilling material, such as asphalt, concrete and stable layer of cement limestone. There are 8pcs teeth for D75mm, 10pcs teeth for D100mm, and 13pcs teeth for D150mm for drilling the concrete.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
Our service and equipment include:
1. Geophysical exploration Consultation and relative instruments such as: IP& Resistivity systems, Fluxgate Magnetometer, Optical pump Magnetometer, Proton Magnetometer, TEM, EM system, Seismograph, Logging system, etc.
2. Construction lab and NDT instruments: High strain dynamic pile tester(PDA), Ultrasonic Cross-Hole Pile Tester, Low strain dynamic pile tester(Integrity Pile tester), WiFi automatic Static Loading pile tester, Rebar Locator, Concrete Chloride Migration Tester( RCM), Concrete penetration tester(DTL), ect.
3. We are also distributor of Petroleum equipment and accessories, to supply our clients inquiry.
With our engineer and professional technology team, we hope we can cooperate with you in future. Relative consultation service, mainly refers to Building, Bridge, Highway and lab. Relative consultation service, mainly refers to Building, Bridge, Highway and lab.
