| Prod Model: |
AWR2840PC |
| Product Name: |
Wheel Repair Machine |
| Controller: |
PC Control or CNC |
| Color: |
Black or Blue |
| Machine Type: |
Flat Bed Lathe |
| Voltage: |
3 Phase 380V or Your Request Voltage |
| Cutting Effect: |
Rainbow Line Effect or Mirror Effect |
| Detection Way: |

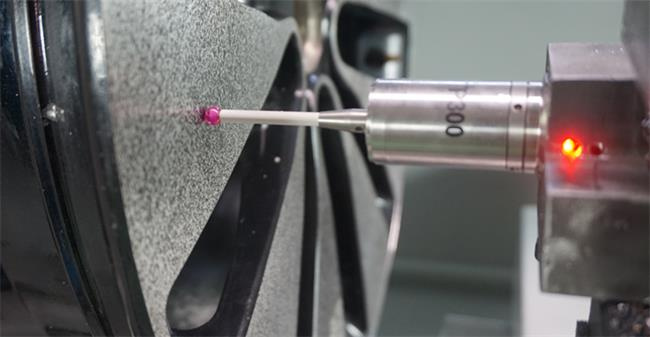

Touch Ruby Probe System |
| Cutter: |
Special Design Diamond Cutter |
| Oversea Service: |
Offer Oversea Service |
| Clamping Type: |
3 Jaws Chuck |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
Diamond Cut Alloy Wheel Repair Machinery CNC Lathe for Sale AWR2840PC
A. Standard configuration:
1. Wireless key&mouse 1 set 2. Diamond cutter 1 set inner
3. Diamond cutter 1 set outer 4. Special ordered soft jaws 1 set
5. High precision prob system 1 set 6. 4 station tool which can adjust X stroke
7. light system 8. Automatic lubrication system
9. Cooling system(standard) 10. Full cover safety door
11. Tool case 12. Training videos
B.Specifications
| ITEMS | AWR2840PC |
| Max. swig over bed (mm) | Φ720(28 inch) |
| Max. swig over cross slide (mm) | Φ540 |
| Max. Size of alloy wheel | 27' |
| Cross slide travel (mm) | 350 |
| Width of the rail | 330 |
| Length of the rail | 1320 |
| Size of the three-jaw chuck | 12' |
| Range of spindle speed (RPM) | 50~2000 |
| Spindle speed control | Automatic |
| Spindle bore (mm) | Φ60 |
| Taper of spindle bore | MT6 |
| Taper of spindle nose | A2-6 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 station |
| Min. setting unit of motor | (Z) long 0.001mm,
(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,
(X) cross 4m/min |
| Motor power | 7.5KW |
| Mchine base | Whole cast iron base |
| Machine size(L×W×H) (mm³) | 2300×1750×1950 |
| Net weight | 2200kgs |

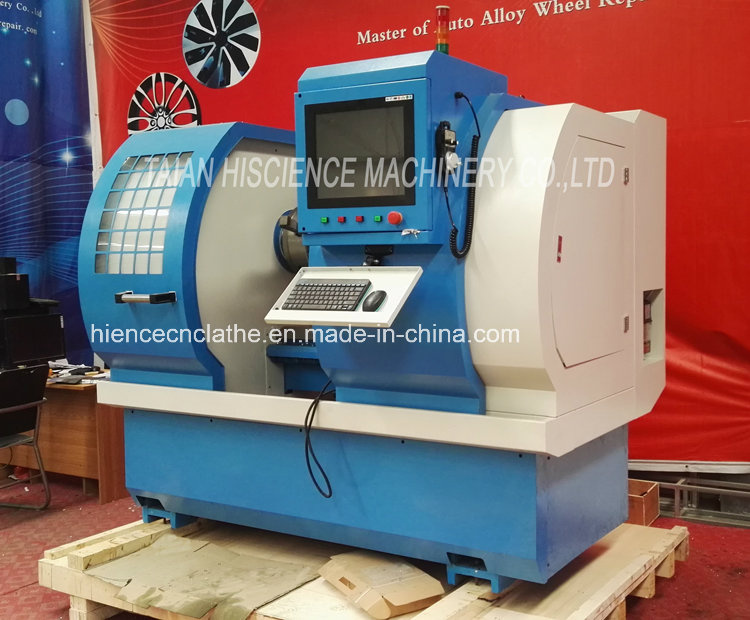

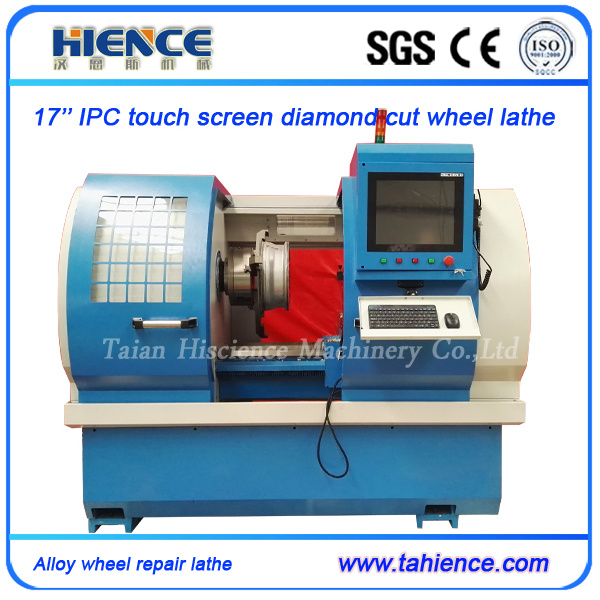

C. Pictures of AWR2840PC
Tested wheel
Company information
FAQ for PC wheel repair machine 1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair
or refurbishment. PC machine adopt 17'' muti-function touch screen industrial PC, can opereate easier
and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer's request. It is no problem for most of
wheel size 22'', and can up to 32''.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self
developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training
can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse
are set up and the mouse can be used together with the touch screen. The customer can establish
their own database of different models of wheels and the saved data can be used in the cutting of
same model.
7)Q:What is your service for the machine.A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can
contact with our company to start the after sale service.The software support remote upgrade, enjoy
life free upgrade to the latest version.
Please contact Betty Liu
Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.
We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.
Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.
CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.
The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.
The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.
Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
