| Price: | US $ 13000-15000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

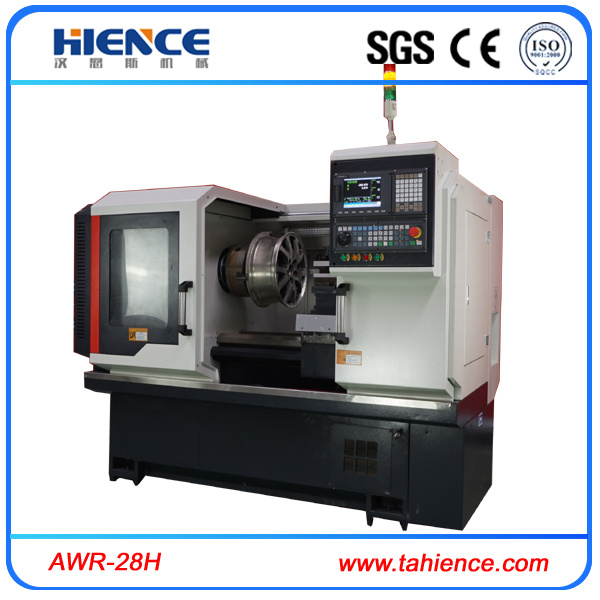

| Prod Model: | AWR28H |
|---|---|
| Machine Type: | Flat Bed Lathe |
| Color: | Black or Blue |
| Controller: | CNC or PC |

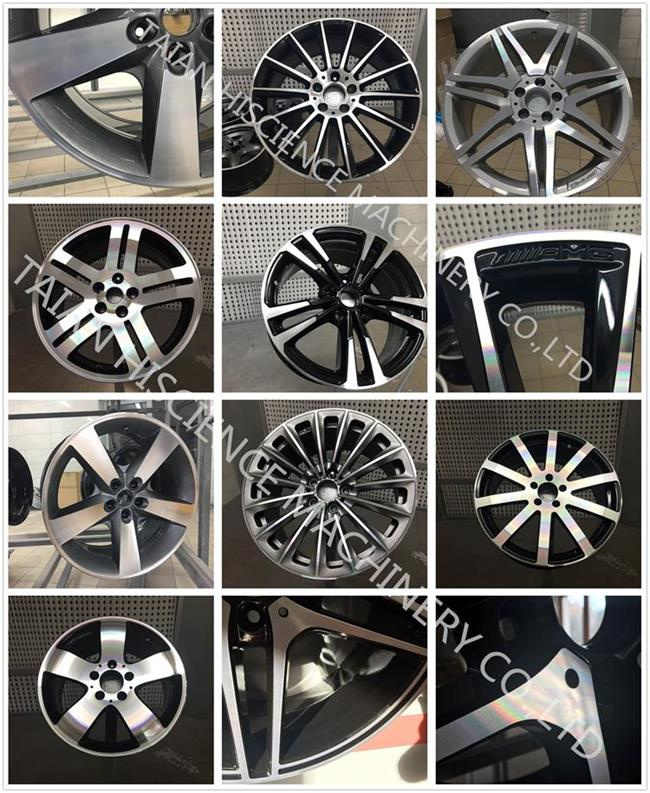

| Cutting Effect: | Rainbow Line Effect or Cutting Line |
| Detection Way: | Touch Ruby Probe System |
| Cutter: | Special Diamond Cutter |
| Clamping Form: | 3 Jaws Chuck |
| Max Wheel Size: | up to 27inch, 30inch or 32inch |
| Optimized Software: | Designed for Optimize Program |
| Oversea Service: | Offer Oversea Service |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
A.Standard configuration
1. Diamond Cutter 1 set; 2. 3-Jaws Chuck(With Special Soft Jaws)
3. TP300 Pioneer Sensing Probe TP300 4. SYNTEC system from Taiwan
5. Manual Quick Change Toolpost,Four-station; 6. Work Lighting System;
7. Automatic Lubrication System; 8. Cooling System;
9. Full Enclose(Security Guard Door) 10. Tools&Tool Box
11. Specific Digital Optimization Software; 12. Training Video CD;
B.Specifications list
| ITEMS | AWR28H | AWR32H | ||
| Max. swig over bed (mm)(inch) | Φ770 (30') | Φ880(34') | ||
| Max. Size of alloy wheel (inch) | Φ720 (28') | Φ820(32') | ||
| Adjustable stroke of carrier in X direction | 100mm | 100mm | ||
| Cross slide travel (mm) | 390 | 450 | ||
| Width of the rail (mm) | 300 | 400 | ||
| Length of the rail (mm) | 1300 | 1650 | ||
| Size of the three-jaw chuck (inch) | 12' | 16' | ||
| Range of spindle speed (RPM) | 50~2000 | 50~1800 | ||
| Spindle speed control | Automatic | Automatic | ||
| Spindle bore (mm) | Φ82 | Φ82 | ||
| Taper of spindle bore | 1:20(Φ90) | 1:20(Φ90) | ||
| Max. size of tool post | 25×25mm | 25×25mm | ||
| Stations of tool carrier | 4 position | 4 position | ||
| Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |||
| Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |||
| Motor power | 7.5KW | 7.5KW | ||
| Mchine base(cast iron base) | Whole | Separate | ||
| Machine size | (L×W×H) (mm³) | 2140 ×1600×1860 | 2970×1660×2080 | |
| Package size | 2300×1750×2100 | 3120×1810×2350 | ||
| Net weight | 2600kgs | 3200kgs | ||
