Diamond Cutting Disc for Diamond Chamfering Disc
| Price: |
US $ 10-50/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL1406 |
| Working Conditions: |
Water Cooling |
Product Description

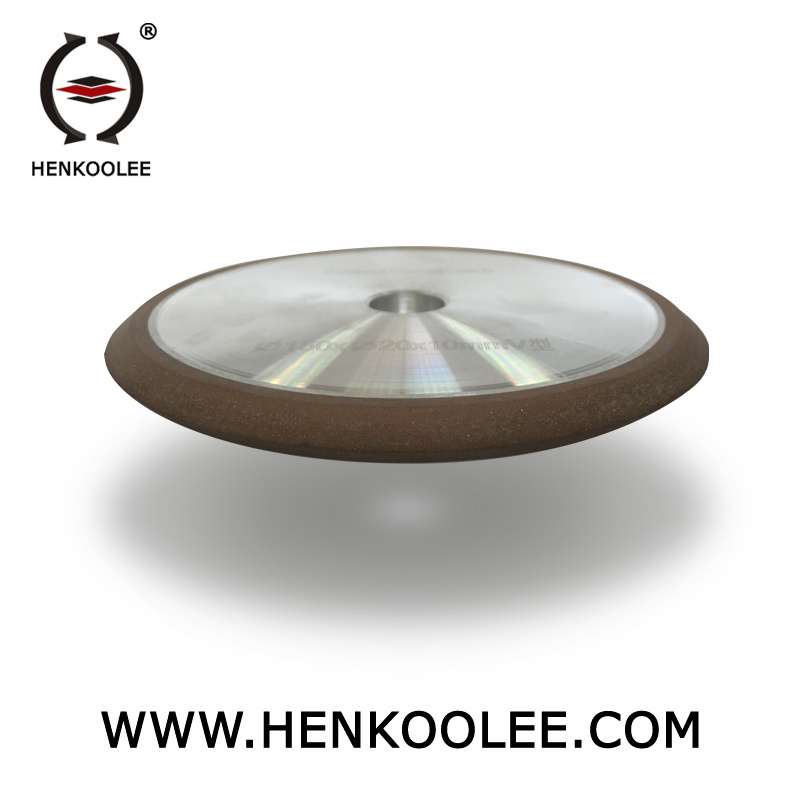

DIAMOND CUTTING DISCThis product is used to make cutting and grooving on ceramic tiles on automatic and manual cutting machines. There are four normal working modes; manual single-blade full cutting, automatic single- blade full cutting, automatic two-blade full cutting and pre-cutting, chamfering and full cutting Our diamond cutting disc are approved for their high working speed, fine and precise cutting effect, low tiles edge-breaking ratio and long working lifetime.DIAMOND CHAMFERING DISCThis product is used to make chamfering on polished porcelain tiles, wearable ceramic tiles, rustic tiles, glaze floor and wall tiles. It can be used by single blade and multi blades. Our diamond chamfering discs are approved for their good sharpness, smooth chamfering effect, no chipping and long working lifetime. It is used on theree-head continuous cutting machines or manual cutting machines: the first head is for pre-cutting, the second head is for chamfering and the third head is for full cutting. Application
SPEC AND PARAMETER| DESCRIPTION | OUTER DIAMETER | THICKNESS
(MM) | HEIGHT
(MM) | ARBOR | GRIT |
| INCHES | METRIC(MM) |
| DIAMOND GROOVING DISC | 6 | ∅150 | 4.0/5.0/6.0 | 7 | 30/32 | D91
D107
D126 D151 D181 |
| 8 | ∅200 | 4.0/5.0/6.0 | 7 | 30/32 |
| 10 | ∅250 | 4.0/5.0/6.0 | 7 | 50/60 |
| 12 | ∅300 | 4.0/5.0/6.0/1.0 | 7 | 50/60 |
OTHER SPESC ARE AVAILABLE UPON REQUEST.

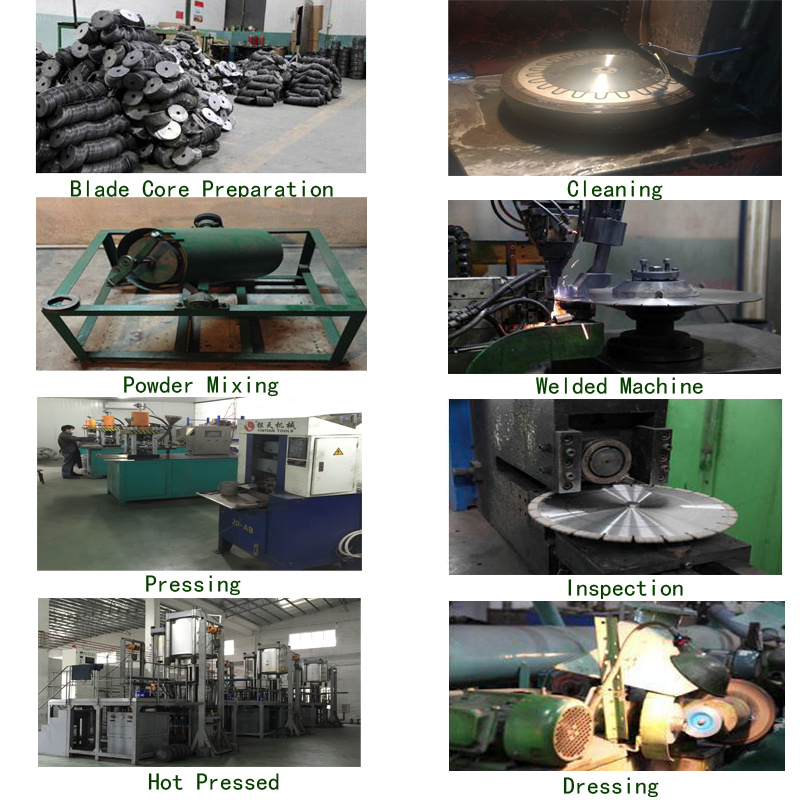

PROCEDURE
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
