| Prod Model: |
WRM28H |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

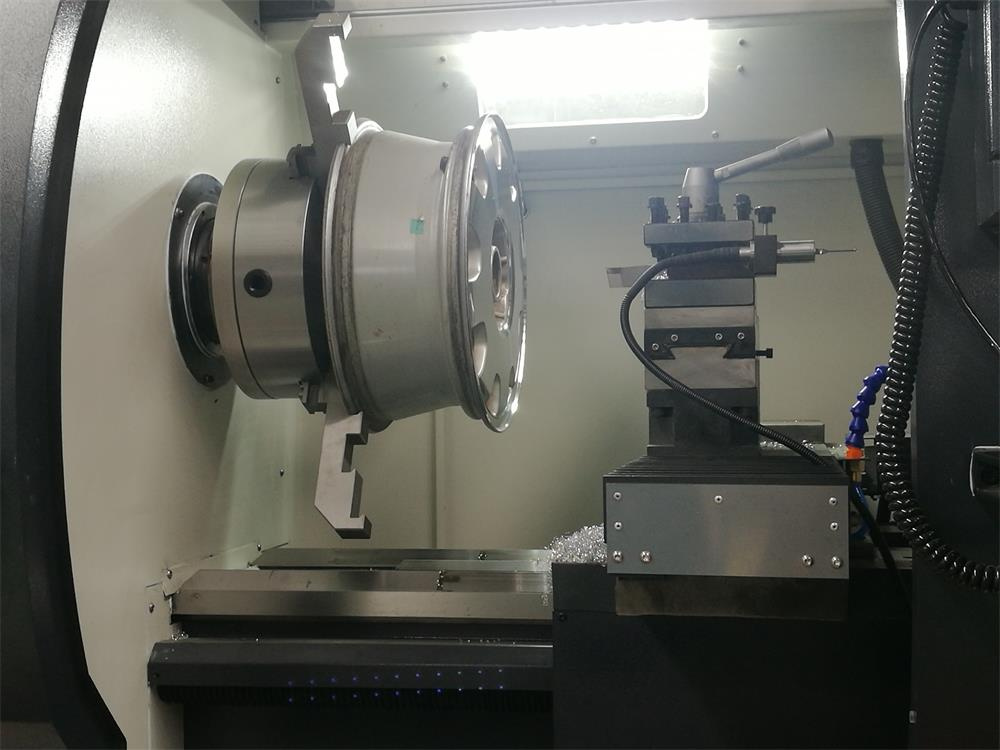

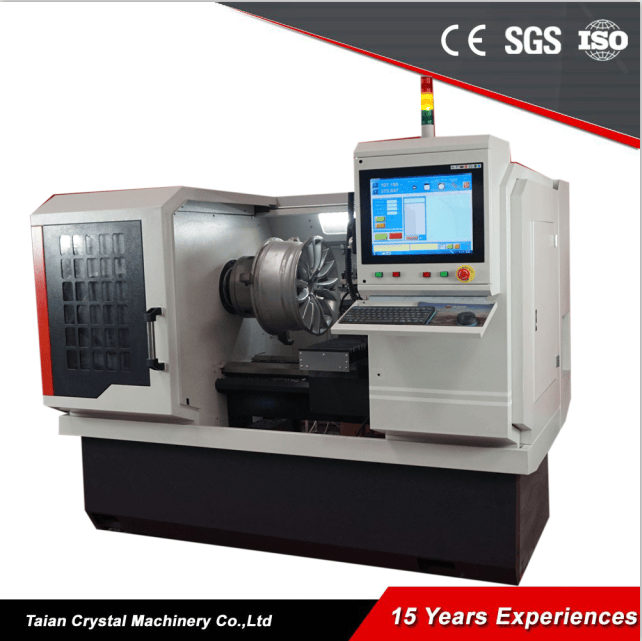

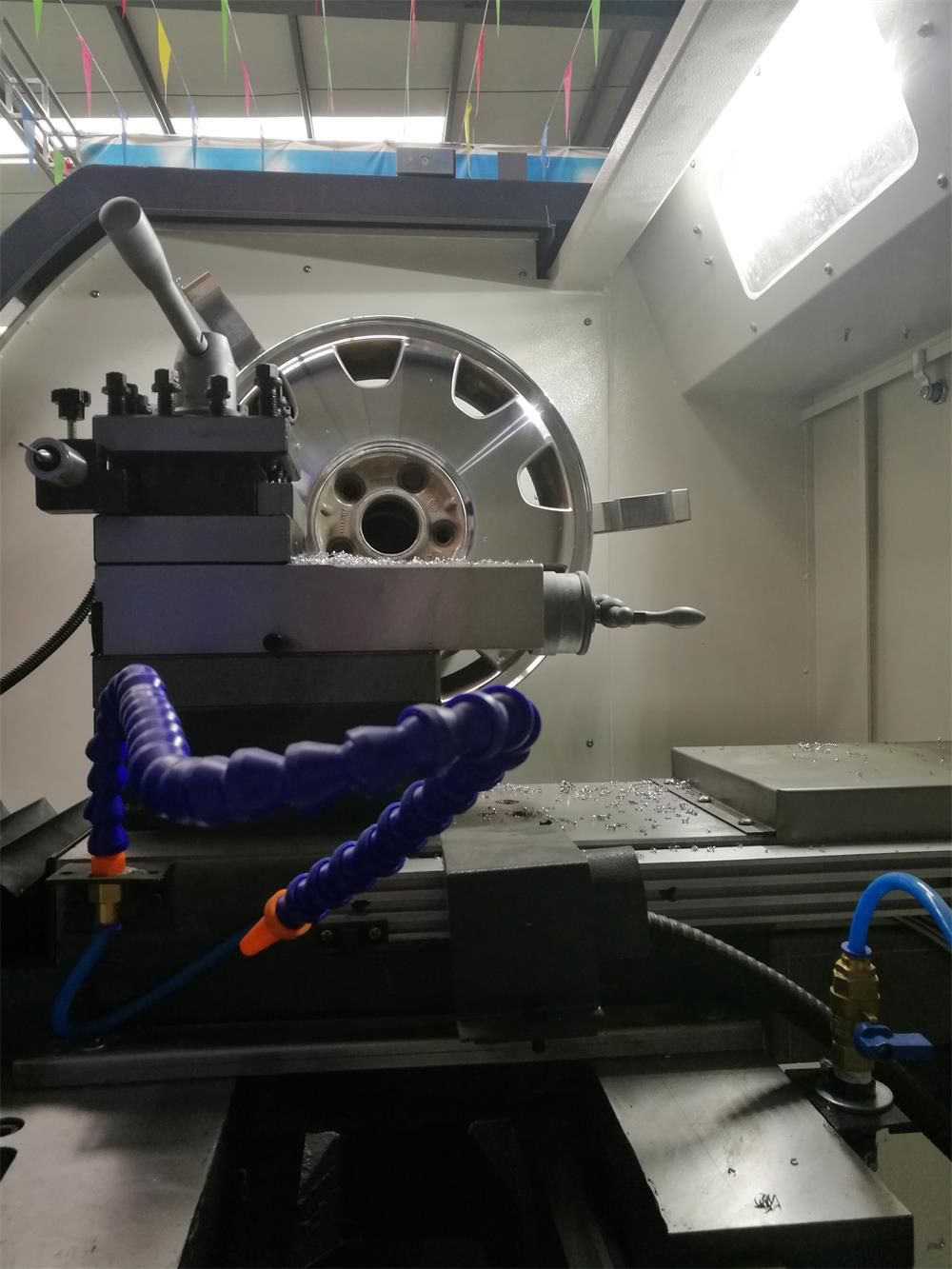

Wheel Polishing Lathe Car Alloy Wheel Rim Repair CNC Machine WRM28H
Product Description
Standard Configurations
1. Wireless mouse&key 1 set
2. Diamond inner cutter 1 set
3. Diamond outer cutter 1 set
4. Special ordered 3 soft jaws 1 set
5. High precision prob system 1 set
6. Ddjustable X stroke 4 station carrier
7. Light system
8. Automatic lubrication system
9. Cooling system:water cooling system;
10. Full covered safety door
11.Training videos
12. Tool case
Specifications
| ITEMS | Specifications |
| Max. swing over bed | Φ770(30') |
| Max. Size of alloy wheel | Φ710(28') |
| Max. Stroke of the X-axis | 390mm |
| Max. Stroke of the Z-axis | 880mm |
| Width of the rail | 300mm |
| Length of the rail | 1320mm |
| Size of three-jaw chuck | 13' |
| Range of spindle speed | 50-2000rpm |
| Spindle speed control | Automatic |
| Spindle bore | Φ82mm |
| Taper of spindle bore | 1:20(Φ90) |
| Taper of spindle nose | A2-10 |
| Stations of tool carrier | 4 Station |
| Max. size of tool post | 25×25mm |
| Min. setting unit of motor | (Z) long 0.001mm,
(X) cross 0.001mm |
| Moving speed of post | (Z) long 8 m/min,
(X) cross 6m/min |
| Machine base | Whole cast iron base |
| Motor power | 7.5KW |
| Machine size(length ×width ×height) | 2200/1620/1870mm |
| Package size(length ×width ×height) | 2300/1720/2170mm |
| Net weight | 2400kg |
Packaging & Shipping
According the weight of our machine,we desgin defferent package to insure the transportation safety.
We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
Our Services
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
c. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are exhaustively tested before shipment. You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
Why Choose US
Make you satisfied is our business!
The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
