| Prod Model: |
AQ, BQ, NQ, HQ, PQ, |
| Name: |
Diamond Products Core Drill Bits |
| Type No: |
Core Drill Bit |
| Bits: |
Diamond Drill Bits |
| Drill: |
Diamond Core Drill |
| Item: |
Diamond Core Drill Bit |
| Supplieers: |
Core Bore Drills Supplieers |
| Series: |
Wireline Diamond Core Bits |
| Model: |
Impregnated Diamond Core Bits |
| Drilling: |
Exploration Core Drilling |
| Mining: |
Australia Mining |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description

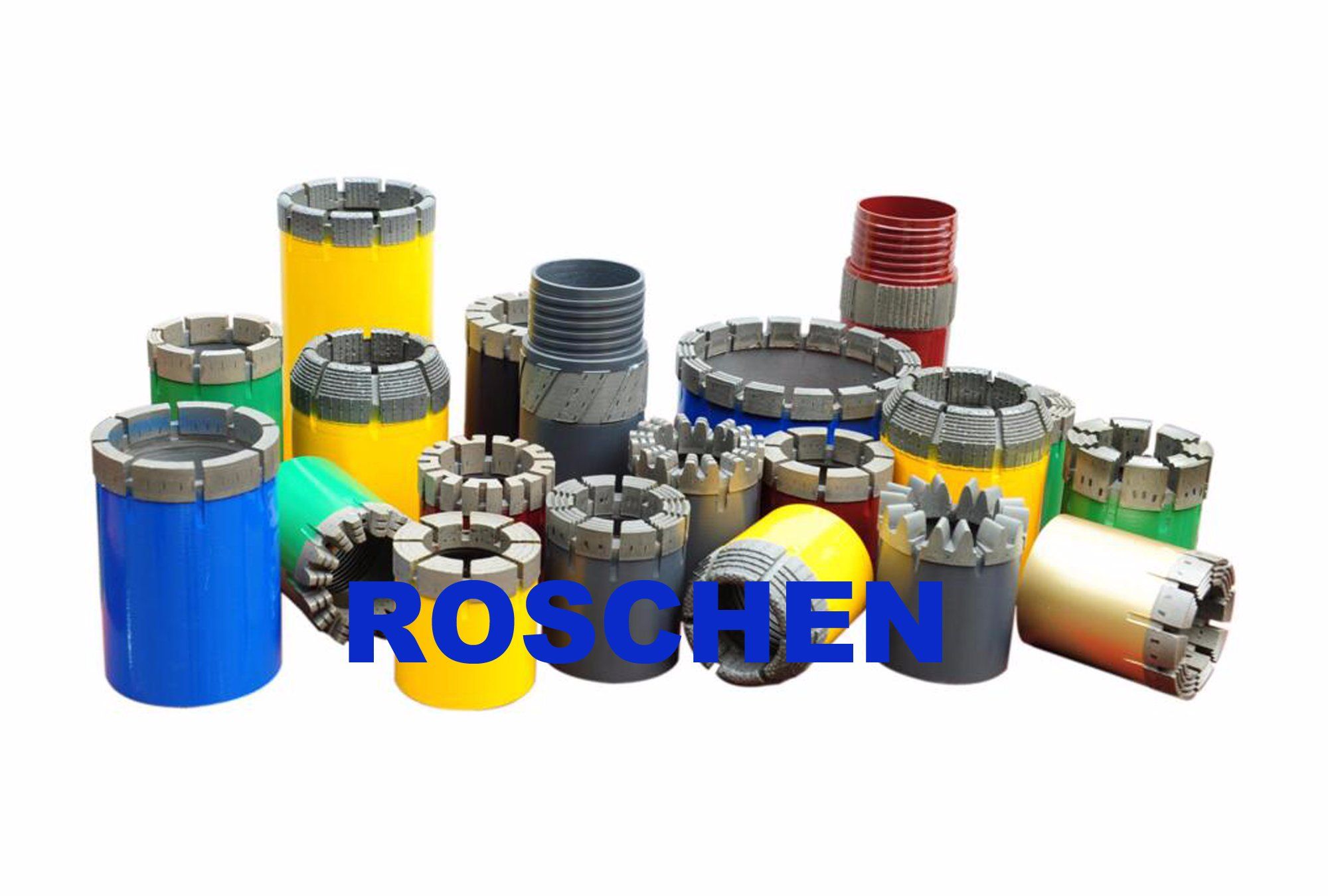

Forsun manufacture and supply Surface set diamond core bit, impregnated diamond core bit, PDC core bit, TSP core bit, electroplated diamond core bit, TC core bit.
Some sizes are list as follows (warmly welcome you contact us for more information):
T2-76, T2-86, T2-101, B101, B116, B131, T6-101, T6-131, TNW, NMLC, HMLC, AQ, BQ, NQ, HQ, PQ, RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW, HWF, PWF, SWF, UWF, ZWF, EWG, AWG, BWG, NWG, HWG, RWT, EWT, AWT, EWK, AWK, WL/AX, WL/BX, WL/NX, WL/HX
| Wireline diamond core bits specifications |
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ3 | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Wireline diamond core bits, metricl diamond impregnated drill bits specifications |
| "Q" series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Short |
| Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T Series: | T36, T46, T56, T66, T76, T86, T101 |
| TT Series: | TT46, TT56, TT66, TT76, TT86, TT101 |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TB Series Metric Core Bits: | TB36, TB46, TB56, TB66, TB76, TB86, TB101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| B Series(IS03552-1)Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| All other standard: | CDDA, DCDMA, Crealius, and ISO sizes. |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
