Diamond Gang Saw Marble Block Cutter
| Price: |
US $ 125000-135000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Main Motor Power: |
110kw |
| Blade Quantity: |
110-130 PCS |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
220V |
| Automation: |
Automatic |
| Certification: |
SGS |
Product Description

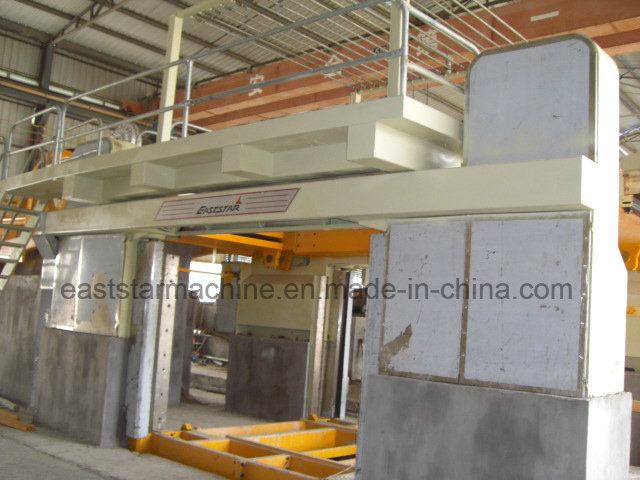

Eaststar marble gang saw with the best quality and good structures, The structure of eaststar gang saw with a middle connecting beam is connected with four vertical columns to ensure the maximum stability and the sustained mechanical pressure in the intensity-resisting operation process. Only one accurate and precision optimal solution for acceleration is to make connecting rods move horizontally together with saw blades along one axis. This means that mechanical thrust is centralized in the same direction, and is not dispersed to other directions. Marble blocks are fixed on a lifting platform. The lifting platform operates on two flat and two rhombus vertical guide rails. The flat and rhombus rails prevent the vertical surface from being deviated or inclined. An encoder controls the horizontal surface of the lifting platform.
Our gang saw with high capacity, the cutting speed can be 50-1000 mm/ hour.(Depend on stone type). Our after sale service team provide service 24 hours, with after sale office in Shengyang, Anhui, Guangxi, and oversea countries like,Vietnam, India , Turkey.As a professional stone machine manufacturing enterprise with SGS certificate, eaststar gang saw manufacture in one completed steel piece instead welding two part, make sure the good function and safety,The beam casting by completed mould,The big wheel of gang saw we use stable structure,and compose two semicircle together. widely running in global stone enterprise, such as Turkey, Iran, vietnan, Oman, Brazil, etc.You are wamly welcome to inspect our factory loacated in China biggest stone industry zone-Shuitou town, only 40 km from Xiamen airport. Parameters of gang Saw| NO. | major parameters of the equipment | Unit | G-2000 |
| | max dimensions of blocks can be processed | mm | 3200(L)*2000(W)*2020(H) |
| | Main motor power | KW | 110 |
| | equipment dimensions | mm | 12425(L)*4700(W)*3800(H) |
| | sawing speed | mm/h | 50-1000 |
| | range of the saw | mm | 800 |
| | specification of the saw | mm | 4400(or4350)*(≥1.5) |
| | water consumption | L/Min/Pcs | 10 |
| | saw installation quantity | piece | 90-100 |
| | weight | Ton | 55 |

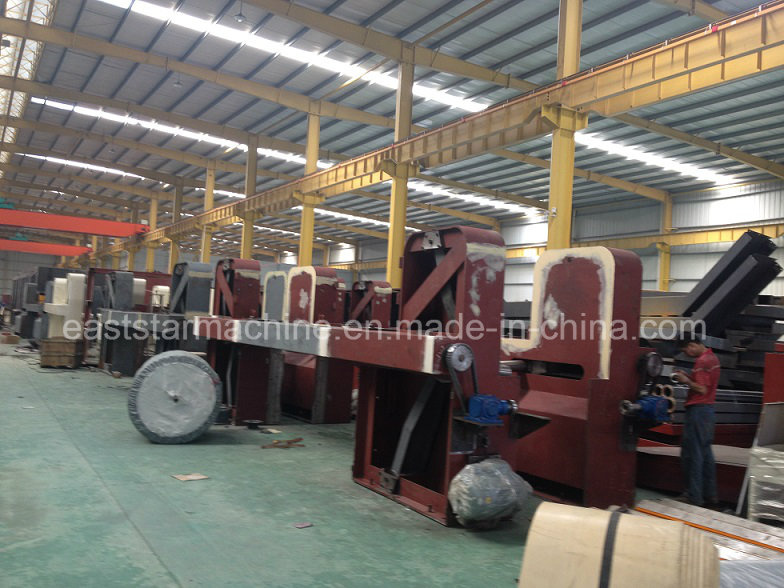

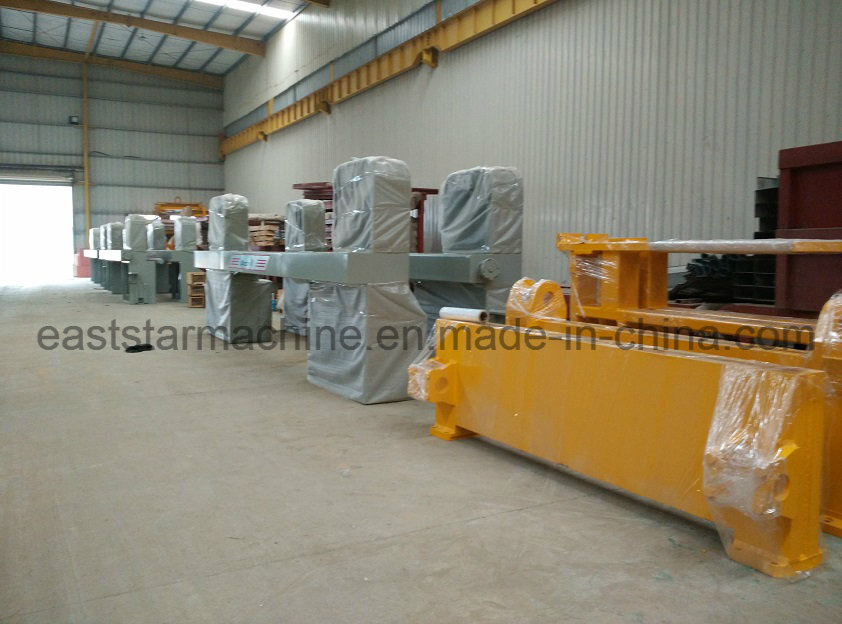

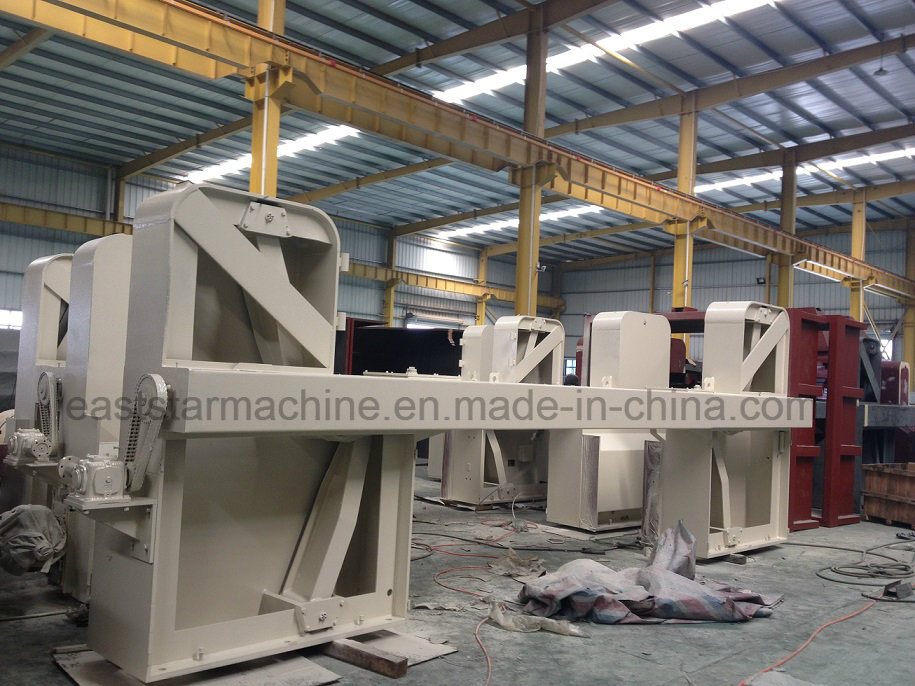

Manufacturing Factory photo :
EastStar Machinery Co., Ltd. As one of the most professional and largest machinery manufacturing enterprises in China. EastStar mainly develops artificial stone production and related stone processing equipments, such as Artificial Marble & Quartz Production Line, Marble Gang Saw, etc. With most experienced professional team on R&D, manufacturing and quality control, we supply customers with the most mature and most completed equipment solutions for artificial marble and quartz, etc. Adhering to customers' requirement-oriented business philosophy, the company has supplied technical services to as much as several hundred of stone enterprises. Our quality and dedicated service has not only earned the vast trust and praise from numerous enterprises in this industry, but also helped us build good brand in both domestic and overseas markets.
With the rapid development of the global economy and construction projects, there're increasing demands on indoor and outdoor decoration, and hence increasing requirement on artificial marble and quartz. Answering to this situation, EastStar Machinery brings up, for world-wide customers, the stone production Turn-Key Project service, from which the output will be the completed lines for artificial marble or quartz. What we EastStar machinery supplies is not just a single machine, but the entire completed line for more rational production. We provide all-integrated standardized support in software, process technology, workshop optimization, and production training, etc.
Production process control for each entire line produced by our company can be operated by the advanced PC. One main operator is enough to master the entire plant and production process, which is manpower-saving, but also much more efficient.
The automatic material feeding, distribution, mixing, shaping, solidifying system ensures continuous and efficient production, and then the stone blocks quality are stable with less comprehensive cost.
Eaststar Automatic Artificial Marble production line profile
The line is mainly composed of hopper, conveyor, mixer, trolley, press machine, test machine, etc. The test machine is the prototype of the core parts of the whole plant, with which the formula can be tested by forming artificial marble block samples, volume production will only be made after successful tests. The process of the entire line is, weigh the raw materials by the hopper→ Send them to the mixer by the conveyor→ Add to auxiliary material (e. g. Resin) → Vacuum mixing→ Put the mixed material into the mould→ Vibration in the vacuum tank for shaping.
Eaststar Artificial Quartz Stone Production Line profile
The artificial quartz stone production line is mainly composed of hopper, conveyor, mixing system, crusher machine, material distribution machine, press machine, solidifying oven, test machine, etc. The test machine is the prototype of the core parts of the whole plant, with which the recipe can be tested by forming artificial quartz stone slab samples, volume production will only be made after successful tests. The process of the entire line is, weight the raw materials (quartz powder) by the hopper→ Send them to the mixer by the conveyor→ Add to auxiliary material (e. g. Resin), mix individually and mix all-together→ Distribute material in the distribution machine→ Put the mixed material into press→ Vacuum vibration pressing and shaping→ Vacuum vibration pressing and shaping→ Solidify in solidifying oven.
