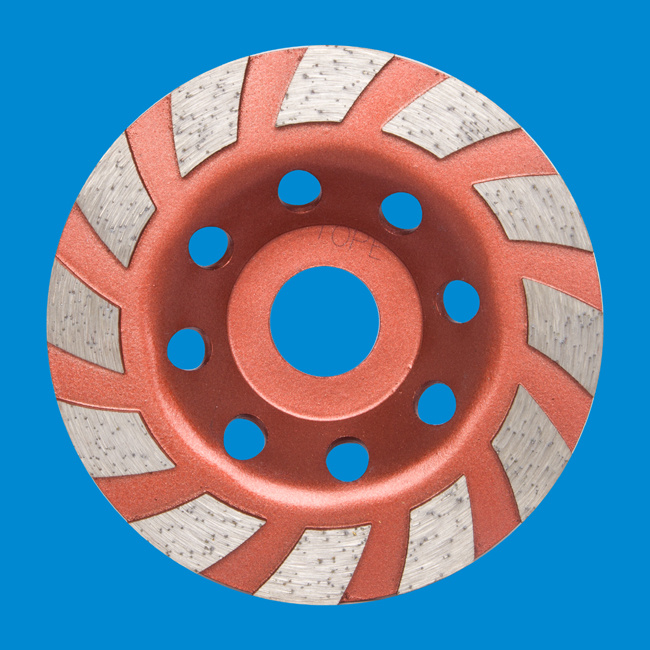

Diamond Grinding Cup Wheel for Refractory Material
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cup Wheel: |
Sintered Cup Wheel |
| Used For: |
Surface Grinding |
| Grinding Material: |
Refractory Material |
| Outer Diameter: |
90-180 |
| Segment Height: |
11, 16 |
| Segment Thickness: |
4 |
| Bore: |
16-22.23 |
| Material: |
Diamond |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
Product Description
Diamond Grinding Sintered Cup Wheel
This product are make of high grade diamond,quality metal powder and steel core ,adopted advanced hotpressing and sintering technology,this product is used for the surface grinding of various refaractory materials, It is installed on all types of machines or portable grinding facilities.
Offer a piece free sample for texting
Contact :Carrin +0086 18902423091
|
Segment |
Outer Diameter |
Segment height |
Segment thickness |
Bore |
|
Continuous |
3.5"(90) |
16 |
4 |
16
20 |
|
4 "(100) |
11
16 |
|
segmented |
3 7/8"(100) |
11 |
|
Turbo |
4 1/2"(115) |
Ø22.23
Screwed hole:5;8 |
|
5"(125) |
Ø22.32
Screwed hole:5;8 |
|
7"(180) |
AOTAI Co., Ltd (Foshan Tetai Co., Ltd)specialized in the ceramic machinery industry. We focus on the Ceramic dies and moulds (XinPeng Brand) for more than 25 years, we are not only the largest ceramic mould manufacturers in China but also a worldwide high-tech enterprise all over the world. Our Mission is "Providing clients with high efficiency, low cost, environment friendly, and labor safety Products".
We can design and produce ceramic dies & moulds from 20X20mm to 1200X2400 mm series. Our dies and moulds can fix all the presses included: SACMI, SITI(B&T), WELKO, NASSETTI, LAEIS, HLT, KEDA, RNH.
Contact Cell: +0086 18902423091 +008613516576586 (Ms Carrin) Company Email: Tetai@188. COM
2. Dies and moulds design
We can design the Ceramic dies and moulds for polished tile, glazed tile, rustic tile, polished glazed tile. We can design according to different powder material, different compression rate.
3. Corperation with other machinery partners
Now we cooperate with the famous Ceramic Machinery Group such as HLT, MODENA, KEDA to research and develop our products. Now, HLT develope for the biggest Press for 16800Ton in China, we cooperate to offer the dies and moulds for this Press, mould size will be 1200*2400 mm. The famous Ceramic brand Monalisa factory are very satisfied for this cooperation for them to develop the big size tile area.
4. Factory sale and employees.
We covers the areas of 20000 square meters, we have 8000 squaremeters of Modern R&D center and 10000 square meters modern workshop. We have more than 500 employees, which include 200 senior engineers and technicians.
5. Head office and branches
AOTAI ( XinPeng Brand) dies and moulds head office are located in FOSHAN Ceramic City, and we have another 7 branches, 5 branches are in SiChuan, HuBei, JiangXi, Shanghai, HeYuan, and 2 branches are Thailand and India. The branch company across China and Asia, providing prompt after-service for ceramic factories.
6. Customer in China and all over the world
We are the biggest ceramic die and mould supplier in China, we offer our moulds to a lot of famous ceramic brand in China, such as: Nobel, DongPeng, Cimic, Monalisa, Champion, Eagle, Wrigley, Oceano, Bode, New Pearl, New ZhongYuan, Marshal ceramics, Grifine ceramics, Qutone, LongJu, Mikado, Eracon, Ruishin, Sunpower, RAK.
Now we export a lot to different countries all over the world: USA, Italy, Spain, Korea, UAE, Vietnam, India, Russia, Turkey, Iran, Indonesia, Kenya, Ethiopia, Malaysia, Bangladesh, Srilanka, Egypt, Philippines, Pakistan ect more than 20 countries.
7. High tech modern large scale equipment.
We have owned a set of high tech modern large scale equipment which are include: Large NC grantry milling machine, planogrinder, machining center, laser scanning, CNC engraving machine and other advance equipment and detecting instrument which can design and produce the ceramic dies and moulds from 20*20mm to 1200*2400mm.
