| Prod Model: |
SY-MBS-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Element Six Diamond |
| Diamond Quality: |
Premium Diamond |
| Saw Features: |
High Tension & Efficiency |
| Painting Color: |
as Customer's Request |
| Technic: |
Sintered or Electroplated |
| Quality Grade: |
a/B/C |
| Advantage: |
High Efficiency and Long Life |
| Company Website: |
HTTP://Www.Sunnytools.Biz |
| Support: |
OEM & ODM |
| Manufacturing Experience: |
23years |
Product Description

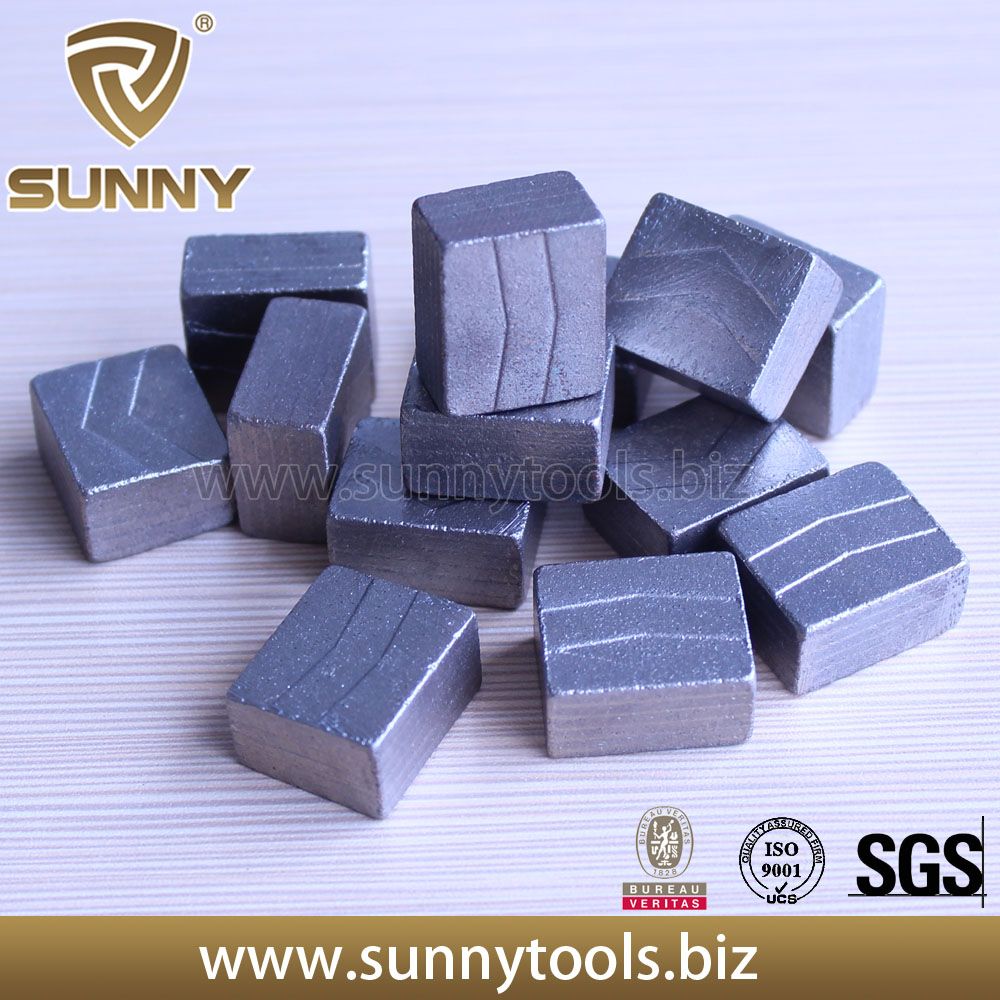

Diamond Multi Blade Segment for Granite Block in Multi-CuttingDesign the segment bond according to your different stone hardness, abrasiveness, machine, parameter to bring premium cutting and maximum output.
| BASIC INFO |
| Brand | SUNNY |
| Product Name | Diamond Multi Blade Segment for Granite Block in Multi-Cutting |
| Item No. | SY-DS-312 |
Diameter
| 300mm-3500mm |
| Material | Diamond |
| Origin | Quanzhou, Fujian, China |
| Features | - Long life & smooth cutting
- Fast & stable cutting
- High efficiency & low energy consumption
|
| Application | Used for Granite, Sandstone cutting |
Single/Multi Saw Blade- Used for all kinds of stone, such as Granite, Basalt, sandstone etc.
- With good sharpness, high cutting efficiency, low energy consumption, long cutting life, slab thickness is uniform, improving stone output(especial for expensive stones)
- Suitable for Single(Multi) Arm Machine and Bridge Cutting Machine.
Diameter
(mm) | Core Thickness
(mm) | Segment Size
(mm) | Segment Number
(pcs) | Application |
| 36″(φ900) | 5.5/5.0 | 24×7.0/6.7/6.4×15(20) | 64 | Granite Sandstone etc |
| 40″(φ1000) | 5.5/5.0 | 24×7.0/6.7/6.4×15(20) | 70 |
| 48″(φ1200) | 6.0/5.5 | 24×8.0/7.7/7.4×15(20) | 80 |
| 54″(φ1350) | 6.5 | 24×8.4/8.1/7.8×15(20) | 88 |
| 64″(φ1600) | 7.0 | 24×9.0/8.7/8.4×15(20) | 104/108 |
| 72″(φ1800) | 8.0 | 24×9.8/9.5/9.2×15(20) | 120 |
| 78″(φ2000) | 8/8.5 | 24×10.5/10/9.5×15(20) | 128/132 |
| 88″(φ2200) | 8.5/9 | 24×11.5/11/10.5×15(20) | 132/136 |
| 100″(φ2500) | 8.5/9 | 24×12.5/12/11.5×15(20) | 140 |
| 120″(φ3000) | 9/9.5 | 24×14/13.5/13×15(20) | 160 |
| 140″(φ3500) | 9/9.5 | 24×15/14.5/14×15(20) | 180 |
Multi Saw Blade- Sharp and high cutting efficiency, low energy consumption, improving the blank lifespan.
- Smooth cutting reduce the cost for polishing the surface.
| Diameter (mm) | Core Thickness(mm) | Segment Size(L*W*H)(mm) | Segment Number | Application |
| 40″(φ1000) | 5.5/5.0 | 23×7.5/7.0/6.5×12(15) | 70 | Granite |
| 48″(φ1200) | 5.5/5.0 | 23×7.5/7.0/6.5×12(15) | 80 |
| 64″(φ1600) | 6.5 | 23×8.0/7.7/7.4×12(15) | 108 |
FAQ:a. Diamond fall off from segment- Happen to sudden shock during cutting;
- Extra cutting speed;
- Blade vibration;
- Cutting material, flange or blade not fix;
- Bond too soft to hold diamond;
- Powder has too much air hole or gap;
b. Big noise- Water supply not sufficient;
- RPM not suitable;
- Segment width small, cause steel blank scrath;
- Cutting material not fix
| c. Segment off- Happen to sudden shock during cutting;
- Cutting material flange or blade not fix;
- Cutting material too hard;
- Water supply insufficient;
d. Short cutting life- Water supply insufficient;
- Electricity not stable;
- Belt loose;
- Bond not suitable;
e. Blade don't work- Bond too hard;
- Insufficient electricity;
- Segment not sharpen;
|
Advantage:WHY CHOOSE US?
1. More than 22 years experience in diamnd tools;
2. Get knowledge of market demand;
3. 12 experienced professors and engineers;
4. High efficiency production flow;
5. Strict quality control system;
6. Exported to more than 60 countries;
7. Professional sales team with prompt reply;
Contact us:Quanzhou Sunny Superhard Tools Co., Ltd.
Add: Tangxi Industrial Zone, Luojiang, Quanzhou, Fujian, China
Postcode:362010
TEL: 86 - 595 - 22003682
FAX: 86 - 595 - 22003987
Web: http://www.sunnytools.biz
http://www.concretetoolsunny.com

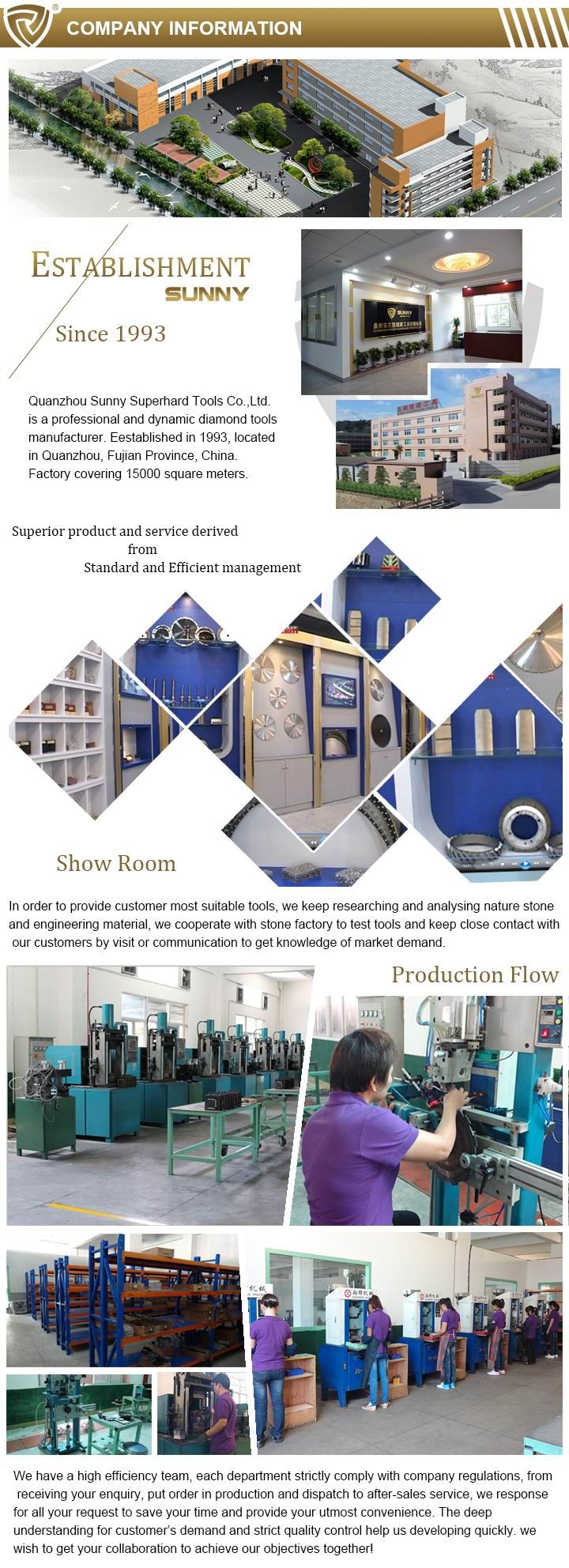

QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.

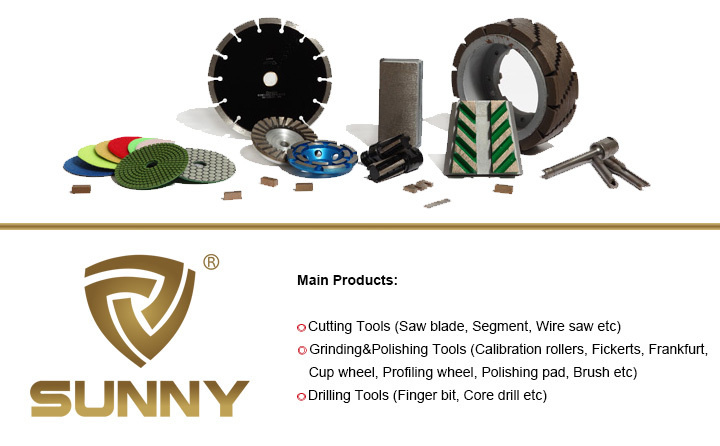

Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
