| Prod Model: |
SY-DWS-77(Wire Saw) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Advantage: |
Manufacture Directly |
| Formula: |
According to Your Stone Properties |
| Material Of Diamond: |
Synthetic Element Six |
| Coating: |
Plastic or Rubber |
| Features: |
Fast & Stable Cutting |
| Certificate: |
BV, SGS, ISO9001:2008 |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Customized: |
Customized |
| Kind: |
Diamond Wire Saw |
Product Description
DESCRIPTION

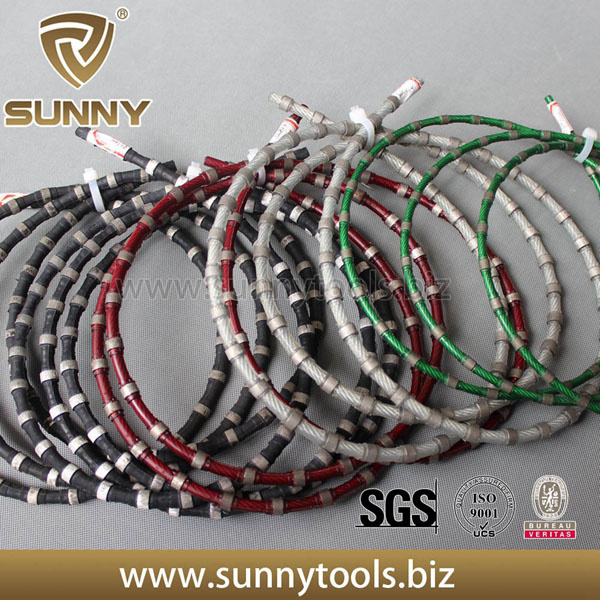

Sunny diamond wire saw is with high flexibility, therefore increase working lifetime. Provide different hardness of beads hrb according to different stone type. There are four major applications: Quarrying, blocks saw, profilling, muiti wire machine, etc.
Advantage:
1. Use for marble/limestone cutting.
2. High quality cable insures less breakage and good tension.
3. Keep sharp and long life
4. Spring and good quality of plastic connection reduce the break or chipping of the fragile marble
The joining of diamond wires
The diamond wires must be joining as a closed circular before using it. The methods and steps of the operation are as follows:
1. Peel off the plastic in the two ends of the diamond wire, bare a small part of the steel wire, the baring part should be l/2(l is the length of the tie-in part)
2. Two man hold the ends of diamond wire separately, enlace the steel wire (enlace 1.52 laps per meter)
3. Insert the two ends of the diamond wire that is enlaced into the steel tie-in and make sure that there is no distance between the tie -in and plastic-infusion lay.
4. Se the burking clamp for diamond wires only to burke the tie-in. When burking, firstly, lay the middle part of the tie-in in the burking clamp and burke when turn every 90`. Then lay the two end of the tie-in in the burking clamp and burke by turn. Next, lay the middle part of the tie-in in the burking clamp and burke.
5. Check the tie-in after burking, clear the burk by emery cloth.
Wire Specifications
Bead Diameter (mm) |
Bead/meter |
Application |
Coating |
11.5 |
40 |
Granite quarry
Granite raw block |
Rubber |
37 |
11.0 |
40 |
37 |
Parameters
Application |
Wire Speed (m/s) |
Cutting Speed (m2/h) |
Life (m2/m) |
Soft granite |
30-35 |
15-30 |
20-35 |
Medium hard granite |
25-30 |
10-25 |
20-30 |
Hard granite |
20-25 |
3-10 |
7-15 |
Sandstone |
25-30 |
4-8 |
8-10 |
Bead Specification
Bead Diameter (mm) |
Working Layer Height (mm) |
Support length (mm) |
Bead Type |
11.5 |
H6.4 |
11.0 |
Sintered |
11.0 |
H6.4 |
11.0 |
Sintered |
Other specifications are available according to customer's request
Sunny is an ISO, BV and SGS certified company, have 21 years manufacturing experience in diamond tools.
Our Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration rollers, Fickerts, Frankfurt, Cup wheel, Profiling wheel, Polishing pad, Brush etc)
Drilling Tools (Finger bit, Core drill etc)
Welcome to visit our company website: http://www.sunnytools.biz
Looking forward to hearing from you.

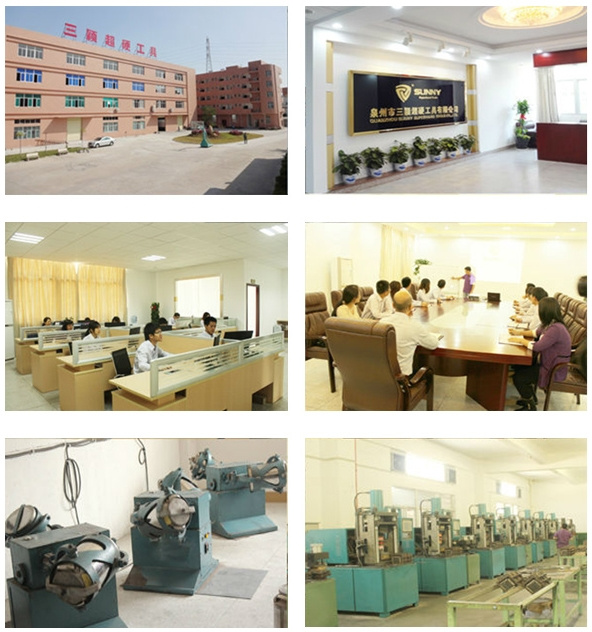

QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material

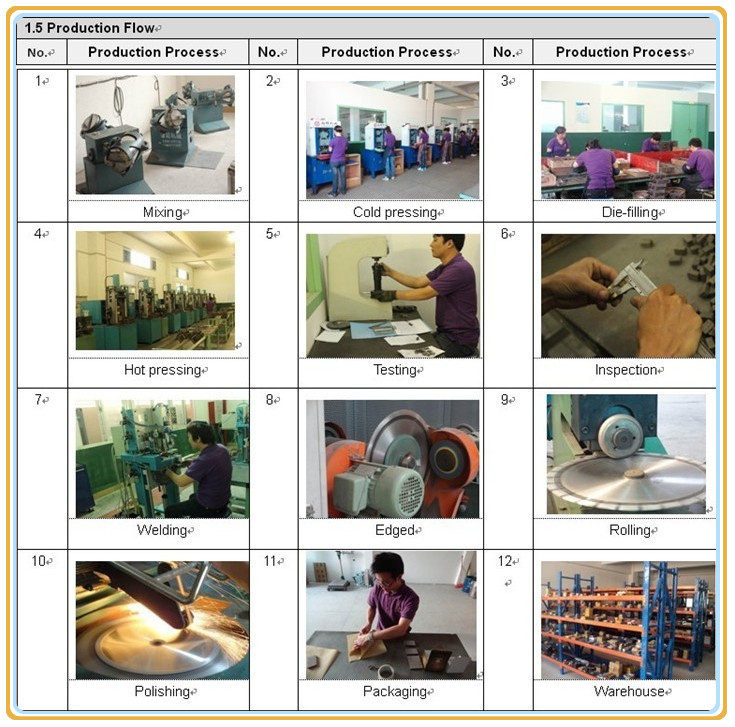

3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
