| Prod Model: |
JL-DRFC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grit Size: |
120mesh |
| Bond: |
Resin |
| Angle: |
60degree |
| Outer Size: |
80mm,100mm,125mm,150mm |
| Shape: |
Flaring Cup Wheel |
| Material: |
Diamond |
| Abrasive: |
Normal Abrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Tool Grinding |
Product Description

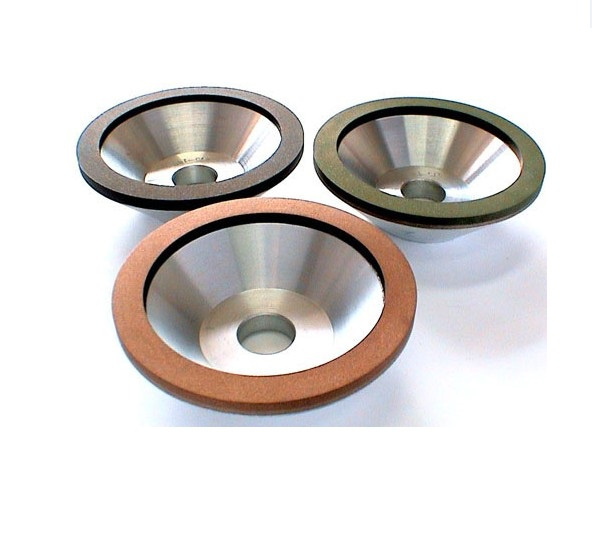

Product Name: Diamond Resin Flaring Cup Wheel(JL-DRFC)
1.Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, easy to plug, the specific features are as follows: Resin Resin diamond grinding wheel diamond grinding wheel.
2.high grinding efficiency while consuming relatively slow grinding wheel;
3. self-sharpening, grinding, heat a small, easy to plug, reducing the grinding burn occurs when the phenomenon of work;
4. wheel has a certain degree of flexibility will help to improve the surface roughness, mainly used for grinding, semi-fine grinding, knife grinding, polishing and other processes;
5.diamond resin grinding is low temperature curing, short production cycle, equipment and supply process is relatively simple; due resin liquid, easy to shape complex plane of the wheel.
6.Application:
Diamond resin grinding wheel mainly uses in grinding the alloy, the nonmetallic material, to cut hard and the crisp hard alloy, the non-metallic mineral and so on. Like hard alloy, ceramics, agate, optical glass, semiconducting material and wear-resisting cast iron, stone material and so on.
7.Grit size incl. Mesh 80/100#, 100/120#, 120/140#, 140/170#, 170/200#, 200/230#, 230/270#, 270/325#, 325/400#

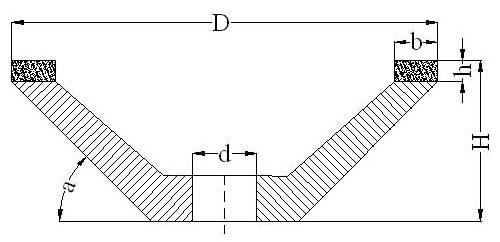

| Description | outer diameter(mm) | thickness | workingpart wideness(mm) | working part thickness | angle(ºC) |
| Single side parallel wheel | 70,100,125,150,180,200 | 4,5,6,8,10 | | 3.5 | |
| cup wheel1 | 80 | 27 | 5,10,15,20 | 3 | |
| | 100 | 40 | 60 |
| | 125 | 40,45 | |
| | 150 | 5,10,15,20,25 | |
| parallel angle wheel | 80 | 30 | 3-10 | 3,5,8,10 | 10,15,20 |
| | 100 |
| | 125 |
| | 150 |
| cup wheel2 | 50 | 38 | 5 | 2.5 | 60 |
| | 75 | 10 |
| | 100 |
| | 125 |
| | 150 |
