| Prod Model: |
HX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Glass Wheel |
| Glass Machine: |
Straight Line/Bevelling Edge Machine |
| Width: |
8mm, 10mm, 15mm |
| Height: |
8mm, 10mm, 12mm |
| Usage: |
Glass Drilling |
| Drilling Holes: |
2000--3000holes |
| Diameter: |
130mm, 150mm, 175mm |
| Factory: |
Yes |
| Enduser: |
Glass Factory |
| Material: |
Diamond |
| Abrasive: |
Normal Abrasive |
| Types: |
Surface Grinding Wheel |
| Grain Size: |
as Required |
| Technics: |
Sinter |
| Working Style: |
Surface Grinding |
Product Description
diamond grinding wheel for glass processing
Features
1 very high grinding power
2 low wear rate
3 assure the consistency of the shape and size
4 Grinding efficiently
Usuage
Diamomd grinding wheels used for hard alloy, ceramic, HSS, cast iron, and other materials.
Shape: Bowl, cup, flat, dish
Diameter: Range: ID 20-50mm, OD 100-200mm
Grit: 80#--400#
Our advantage
1. Widespread distribution network
2. Timely delivery of the products
3. Customized solutions
4. Easy payment modes
About Us
Established in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd is a specialized enterprise that engages in the research, production and sales of various kinds of synthetic diamond and diamond tool, glass tools, which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.
Welcome to Visit our factory! ! ! ^_^
| Glass Grinding wheel |
| Diamete(mm) | Width(mm) | High(mm) | hole(mm) | grit# |
| Metal Full segment |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 175 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal Internal segment |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 175 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal continuous |
| 130 | 8 | 8 | 12/22/50 | 80/100/150/200/240/300/400 |
| 130 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 8 | 8 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Metal outer segment |
| 150 | 8 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| Resin bond |
| 130 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 130 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 10 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
| 150 | 15 | 10 | 12/22/50 | 80/100/150/200/240/300/400 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order

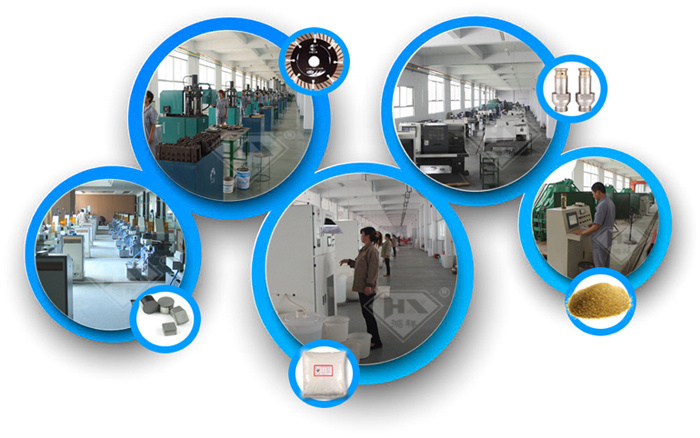

3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates

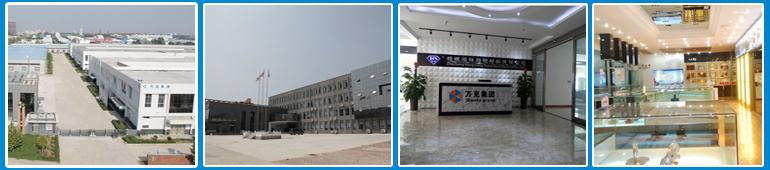

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
