| Prod Model: |
carbide drawing dies |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Tungsten Carbide Wire Drawing Dies |
| Place Of Origin: |
Zhuzhou China (Mainland) |
| Model No: |
Rb Series |
| Diameter: |
Customized |
| Usage: |
Industrial Processing |
| Perfomance: |
Excellent Wear Resistance |
| State: |
100% Raw Materials |
| Cer: |
ISO9001 SGS |
| Business Type: |
Manufacturer |
| Advantage: |
Over 20 Years Experience in This Line |
| Application: |
Car |
| Type: |
Tungsten Carbide Wire Drawing Dies |
| Material: |
Tungten Carbide |
Product Description

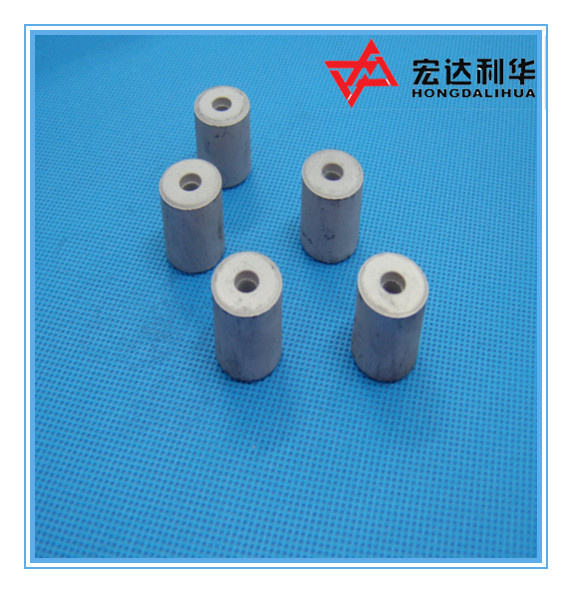

Tungsten Carbide Wire Drawing Dies
Applications:
Wire drawing dies/Cemented carbide wire drawing dies
1. Dies for drawing metal wires
2. Dies for rods.
3. Dies for tubes.
4. Dies for plugs.
5. Non-standard drawing dies
YG6 YG8 YG6X YG15
The tungsten carbide drawing die adopts high-quality hard alloy as its core, with high hardness, good thermal conductivity, and low friction coefficient. In the process of using, it shows good corrosion resistance and impact resistance, and applicable to the drawing of black metal, large size wire, and which the drawing condition is worse. YG6 tungsten carbide wire rod drawing die.
A wide selection of types. Various of grades such as
| Tungsten carbide mark | Density g/cm³ | Intension
MPa | Hardness HRA | Application |
| YG6X | 14.95 | 1800 | 91.5 | Suitable for wire drawing die which diameter of inner bore is less than 6.00 mm. |
| YG6 | 14.95 | 1900 | 90.5 | To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm |
| YG8 | 14.8 | 2200 | 89.5 | Used in the drawing die for non-ferrous metal bar and tube stock. |
| YG10 | 14.5 | 2400 | 88.5 |
| YG15 | 14 | 2800 | 87 | For steel bar and pipe with high shrinkage. |
| Carbide grade for drawing dies |
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(MPa) | Applications recommended | | YM6X | 14.95 | 91.5 | 1800 | For drawing steel and nonferrous wires or bars of less than6.00mm under not so much stress. | | YM6 | 14.95 | 90.5 | 1900 | For drawing steel, nonferrous alloy bars of less than20.00mm under more stress and also for drawing tubes of less than 10.00mm. | | YM8 | 14.8 | 89.5 | 2200 | For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. | | YM10 | 14.5 | 88.5 | 2400 | | YM15 | 14.0 | 87.0 | 2800 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
|
In order to the use of tungsten carbide drawing dies more efficient, there are five points for attention:
1. the choice of equipment
2. pretreatment of wire material
3. choosing appropriate lubricant
4. exception handing
5. change fossilized dies in time
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Cemented Carbide Industry for more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Other Tungsten Carbide Products in Lihua:
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Wood Working Cutting
Tungsten Carbide Sleeves
Tungsten Carbide Nozzles/Spraying
Tungsten Carbide Balls
Tungsten Carbide Wire Drawing Dies
Tungsten Carbide Rods/Bars/Tubes
Tungsten Carbide End Mill Tool Holders
Tungsten Carbide CNC Tool Rods
Tungsten Carbide Rings
Tungsten Carbide Sealing Rings/Rollers
Tungsten Carbide CNC Cutting Inserts
Tungsten Carbide Special Cutting Tools
Tungsten Carbide Mining Tools
Tungsten Carbide End Mill/Milling Tools/Drill Bits
Tungsten Carbide Customized Parts
Etc.
Main Products:
Tungsten Carbide, Hardmetal Products, Carbide Cutting Tools, Titanium Alloy, Pure Tungsten, Cemented Carbide Products, Carbide Inserts, Carbide Rods, Carbide Plate and Bars, Carbide Tips, carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and
Different other various type of the tungsten carbide products and so on.
Company Brief Introduction
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
