| Prod Model: |
D30-D60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
35mm |
| Total Length: |
95 |
| Work Length: |
42 |
| Diamond Grit: |
50/60 |
| Type Of Technical: |
Welding |
| Graininess: |
50/60 |
| Thickness: |
5mm |
| Shape: |
Round |
| Kind: |
Diamond Wheel |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting, Semiconductor Cutting, Lab Use Super-thin Saw Blade, Optical Glass Cutting, Abrasive and Carving, Fire-Retardant, Porcelain, Drilling, Arts Cutting |
| Brand: |
Xin Ya |
| Saw Blade External Diameter: |
35 |
| Specification: |
35 |
| Customized: |
Customized |
Product Description
Diameter X Segment
(mm) x Segment number | Work length
(mm) | Total length
(mm) | Diamond grit
| Type of technical |
| 30 x 6 | 42/60 | 80/95 | 50/60 | welding |
| 35 x 6 | 42/60 | 80/95 | 50/60 | welding |
| 40 x 8 | 42/60 | 80/95 | 50/60 | welding |
| 45 x 8 | 42/60 | 80/95 | 50/60 | welding |
| 50 x 10 | 42/60 | 80/95 | 50/60 | welding |
| 55 x 12 | 42/60 | 80/95 | 50/60 | welding |
| 60 x 12 | 42/60 | 80/95 | 50/60 | welding |

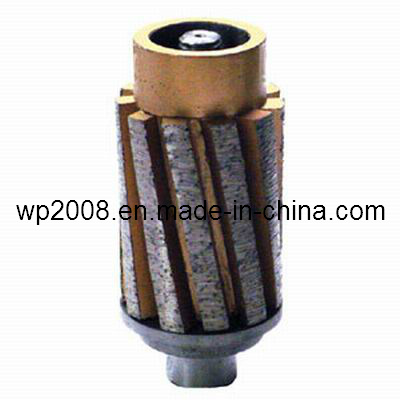

This kind of diamond router is a kind of aggressive segment profile tool,it's used for grinding the glass,stone and ceramics edges completely flat to a single plane,just run the bottom bearing on them against a straight eddge and it makes grinding straight edges easily.
The diamond router is metal bond,Mounted on CNC or any tool machinery, It features a clean aggressive cut on natural or engineered stone.
Suitable for milling cut the stone plate,glass plate or the ceramic plate,the thickness of the ptate from 1.0mm to 30mm can be processed by our diamond router.
The diamond router have water cooling hole at the center,Enough water cooling can increase the life time.
Size: 30mm~60mm.
Diamond segment of the router: 6 segment, 8 segment, 10 segment, 12 segment.
Type of techinical:Metal bond segment on welding.
Type of water supply:Water from the inner hole.
The diamond segment which welding on the diamond router are produced by the newest Vacuum-Hot pressing sintering machine,as the temperature of the hot pressing sintering is 800ºC~1000ºC, The high vacuum can protect the diamond grit without injury,the diamond grit will be no oxidation in the hot pressing sintering.
Customized size available on request.
Try it,and you will love it!
Our company had been established in 1998, We have more than ten years production and development diamond product experience, Our factory specialized production each kind of specification diamond grinding wheel, diamond router, diamond wire and diamond band saw.Very good quality, cheap price and we take the good faith as the principle, Welcome to cooperate.
