Application:
Cutting Asphalt, Green Concrete
Weld Method:
Laser Welded
Steel Core:
Normal or Silent
Diameter:
300mm-600mm
Usage:
Stone Cutting, Concrete and Asphalt Cutting
Manufacturing Arts:
Welding
Product Description
Our Diamond Blades are mainly including laser welded diamond blade,silver brazed diamond cutting blade,sintered diamond dry cutter,electroplated diamond cutting disc with advantages of good performance and very reasonable price.They are widely used for cutting concrete,asphalt,granite,marble,brick,ceramics,etc.Diameter is ranged from 105mm to 800mm.

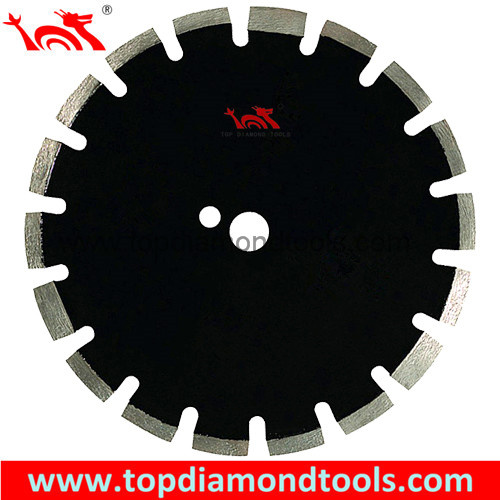

Laser welded Diamond Saw Blade with protection teeth used for Asphalt, Green Concrete and Abrasives material cutting with high efficiency. Drop segments prevent wear and tear of the steel core by abrasive materials. Suitable for Flat saw machines with power more than 35HP.
Key Features 1. Size: 12" - 24" 2. Craft: Laser welded 3. For cutting concrete, granite, specially for asphalt and green concrete. 4. With u-slot gullets with heavy duty core and undercut protection. 5. Different segment heights and arbor hole sizes available.

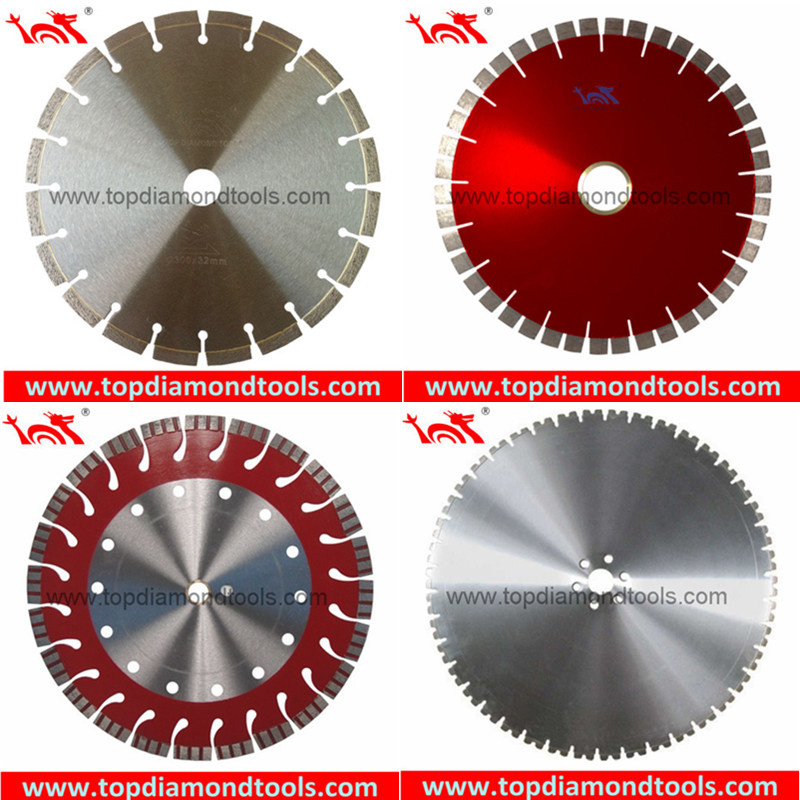

Other Designs:

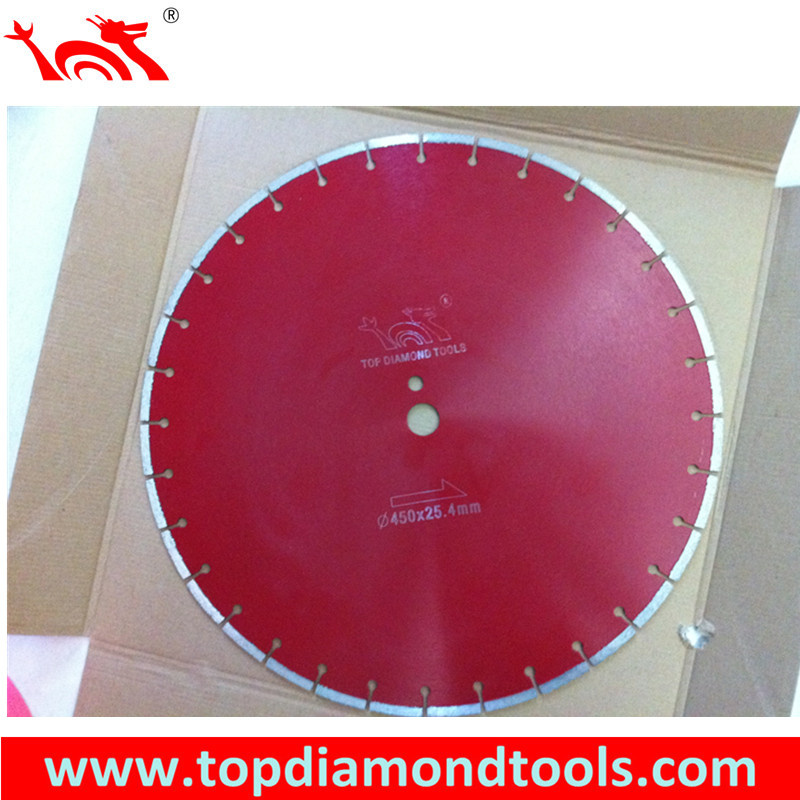

Packing:
Outer Diameter
Segment Width
Arbor
Segment Height
Segment No.
Inches
mm
Inches
mm
12"
305
0.12"
3
1"
10mm
16
14"
355
0.125"
3.2
1"
10mm
21
16"
406
0.140"
3.6
1"
10mm
24
18"
457
0.155"
4
1"
10mm
28
20"
508
0.165"
4.2
1"
10mm
32
24"
610
0.187"
4.8
1"
10mm
36
Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc.
They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc.
With over 15 years of production and problem solving experience, we have been developing diamond tools in different applications featured with reliable quality and reasonable price as follows:
1. Diamond Tools for Concrete Flooring (from surface preparation up to final polishing)
2. Diamond Tools for Stone (from its extraction in the quarry, through slabbing, sawing, drilling, milling and surfacing, up to final polishing)
3. Diamond Tools for Construction.
Our goal is to guarantee our tools work efficiently for every customers always and increase the competition for theirs.
We would like to thank all of our existing customers for their loyalty and support over the years. We would also like to welcome new customers and look forward to a long and prosperous future together.
