| Prod Model: |
CH-D98 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding: |
Laser Welded |
| Segment Height: |
8/10/12mm |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Wheel |
| Saw Blade External Diameter: |
80-3000mm |
Product Description

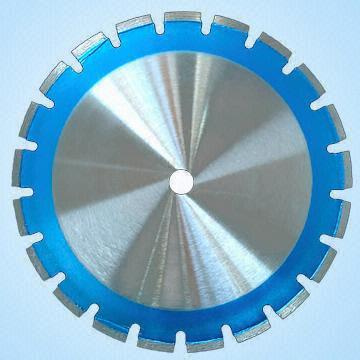

Diamond Saw Blade for Granite Silent TypeSpecifications
1. Laser welded
2. Carved steel disc to lower noise in cutting
3. Reasonable price
Designed for a wide range of materials including concrete, brick, block, green concrete, stone, etc.
These product is widely used for cutting granite, marble and concrete. Moreover, the blade has good sharpness and high efficiency at the process of cutting. Besides. With high working performance, the blade would not chip or break slates while cutting.
These Diamond Saw Blades are highest Ratio of Performance to Price!
(Other specifications are available upon client's requests. )
Features:Features:
A. Special sandwich steel disc make sure excellent noise reduction...
B. High quality diamond and materials ensure high sharpness and long cutting life.
C. 100% laser welding strength of segment tested one by one via torque wrench.
D. Smooth and fast cutting, no chipping.
E. Suit to dry cutting.
F. Good balance assures safety and excellent cutting effect.
G. Different quality grades for selection.
H. Any specification as your request.
| Diameter (mm) | Blank Core(mm) | Teeth Number | Segment(mm) |
| (ThinknessxHeightxLength) |
| 80 | 20 | 6 | 1.8*8*35 |
| 114 | 20 | 8 | 1.8*12*38 |
| 125 | 25.4/22.23 | 9 | 2.0*8*38 |
| 150 | 25.4/22.23 | 12 | 2*12*33/35 |
| 150 | 50(with slot) | 10 | 3*8*40 |
| 180 | 25.4/22.23 | 14 | 2.4*8/12*35 |
| 230 | 25.4/22.23 | 18 | 2.6*8/12*35 |
| 250 | 50 | 18 | 2.8*8*40--42 |
| 250 | 25.4/22.23 | 18 | 2.8*10*38 |
| 300 | 50 | 21 | 3*10*40 |
| 300 | 50 | 22/23 | 3.0*8/10*40--42 |
| 350 | 50 | 34 | 3.2*13*27 |
| 350 | 50 | 25/26 | 3.0*8/10*40--42 |
| 350 | 50 | 24 | 3.2/3.4*8--15*40 |
| 400 | 50 | 28 | 3.6/3.8*8--15*40 |
| 400 | 50 | 38 | 3.8*13*27 |
| 450 | 50 | 32 | 3.8*8--15*40 |
| 500 | 50 | 36 | 3.8/4.2*8--15*40 |
| 500 | 50 | 48 | 4.2*13*27 |
| 600 | 50 | 42 | 4.8*8--15*40 |
| 700 | 50 | 50/40 | 5/5.2 *8--15*40 |
| 800 | 50 | 56/46 | 5.5/5.8*8--15*40*57 |
| 900 | 50 | 64 | 6.0--7*10--15*40 |
| 1000 | 100 | 72 | 7.4/6.6*12/15*24 |
| 1200 | 100 | 80 | 8.2/7.6*12/14*23 |
| 1300 | 100 | 92 | 8.2/7.6*12/14*23 |
| 1400 | 100 | 96 | 9/7.2*12/14*23 |
| 1600 | 100 | 108 | 9/8.4*12/14*23 |
| 1800 | 100 | 120 | 10/9.4*12/14*23 |
| 2000 | 100 | 128 | 11/10.4*12/14*23 |
| 2200 | 100 | 132 | 12/10.4*12/14*23 |
| 3000 | 100 | 156 | 12/11.4*12/14*23 |
Zhejiang changheng tools co. Ltd is seated in hardware city -yongkang, it' S profession saw blade manufacturer. The product is involved with Tungsten carbide tipper circular saw blades, Diamond saw blade, mower saw blades etc, we can offer hundreds type of specification based on different saw blade. So far, the company covers an area over 30, 000 square meters and an annual production over 20, 000, 000 saw blades. The product will be exported many countries such as MID-east, Asia, Europe, America etc.
To ensure the good quality, the company adopts the most advanced technology and device from Japan and Germany. And make our work shop form one set completely speciialized production line. What' S more we also improve our management strategies on time and our company passed ISO2000 quality system Authentication in 2003, our product passed TUV certification.
The company will do its utmost to cultivate our famous brand and sincerely welcome merchants from home and abroad to cooperate with us!
