| Prod Model: |
Dh1-728 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Arts: |
Sinter |
| Main Diameter Size: |
300-900mm,1200,1600,2000mm |
| Segment Height: |
8/9/10/12mm |
| OEM&ODM: |
Yes |
| Customized: |
Customized |
| Brand: |
Jdk |
| Delivery Time: |
3-5 Days |
| Export Market: |
Global |
| Color: |
Copper Red |
| Contact Person: |
David Huang |
Product Description

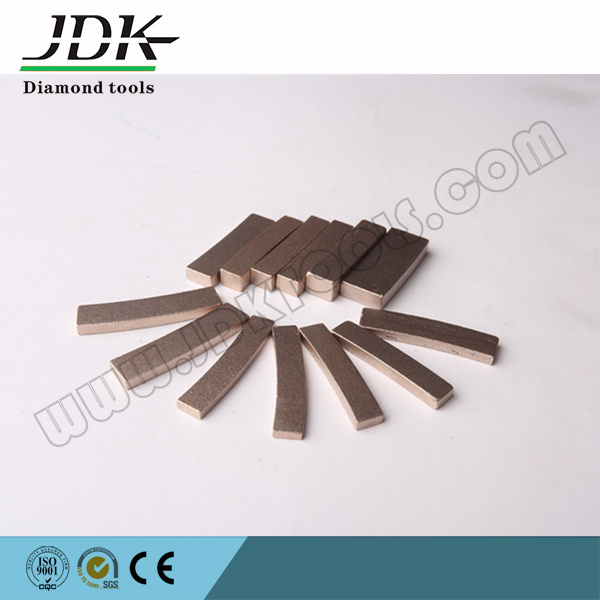

Diamond Segment for Cutting Marble Limestone Travertine
Our advantage:
1. Different formula for all kinds of different stone like granite, marble, limestone, Lava stone, sandstone, bluestone, etc
2. High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
3. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
4. Sandwich, groove type segment with shape straight, trapezium, boat shape, K, V, etc
5. Long lifespan, good sharpness, stable performance and high cutting efficiency
6. Custom-design can be met upon requirement and small trial order available any time
7. Most of all, our price is very competitive, because we are manufactory, we are the source.
| dia(mm) | seg specification(mm) | seg no. |
|
|
| 300 | 43/41*3.2*8 | 22 |
| 350 | 43/41*3.2*8 | 25 |
| 400 | 43/41*3.6*8 | 29 |
| 450 | 40*4*8 | 32 |
| 500 | 40*4*8 | 36 |
| 600 | 40*5.5*8 | 42 |
| 700 | 40*6.2*8 | 50 |
| 900 | 24*8*9 | 64 |
| 24*8*10 | 64 |
| 1200 | 24*8*10 | 80 |
| 24*9*10 | 80 |
| 24*8.2/7.4*12 | 80 |
| 1600 | 24*9.5*9 | 108 |
| 24*9.5*10 | 108 |
| 24*10*10 | 108 |
| 24*10/9.2*12 | 108 |
| 2000 | 24*10.5*9 | 128 |
| 24*11*10 | 128 |
| 24*11*12 | 128 |
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
