| Prod Model: |
SYY-DSS17 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Segments |
| Used For: |
Diamond Segments for Granite & Marble |
| Diameter: |
300m |
| Manufacturing Experience: |
23years |
| Exporting Experience: |
11years |
| Production Volume: |
3000000 PCS/Per Month |
| Packing Method: |
Sunny or Neutral Packing |
| OEM & ODM: |
Available |
| Certificate: |
ISO9001:2008, SGS, BV |
| Country Of Original: |
Quanzhou China |
| Shape: |
Conical |

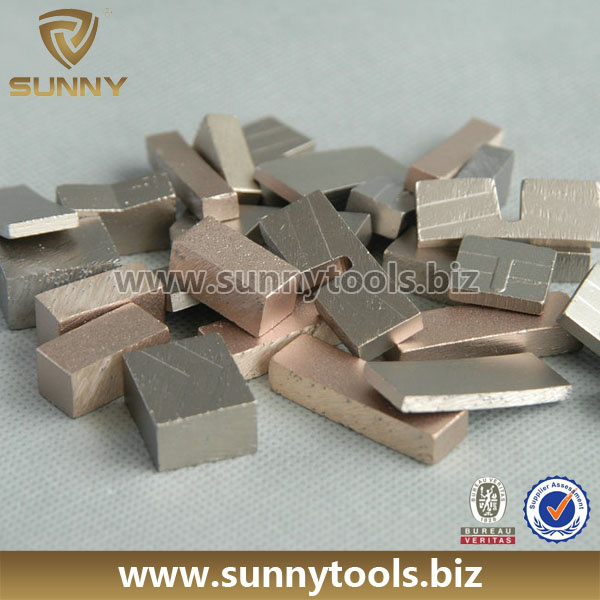

Product Description
Basic information about SUNNY producing diamond segments
1. The diamond segments (straight, sandwich, etc. ) produced by SUNNY are designed for fast and high production Cutting for granite, marble, sandstone, limestone, lava, etc.
2. We aim to bringing you the superior cutting performance and uniform thickness.
Features of SUNNY diamond Stone cutting segments
1. Fast cutting speed with no chipping
2. Stable performance with long service life
3. Strict production and quality inspection process
4. Using high quality cobalt powder and nickel powder and high quality diamond single crystals
Notes for special need
1. Different shapes of segment (Flat Shape T shape W shape U shape and K shape) can be chose.
2. We design bond according to the feature, hardness and abrasiveness of your stone to bring you maximum output.
Our service
Honest negotiation and consultation
Reasonable price at prompt delivery time
Delivery time
5 to 20 working days from production day
Packaging
Paper bag and poly bag for inner packaging.
Carton bag or wooden box with straps for outer packaging.
Ways of transportation
1. As for urgent order or sample order with light weight, SUNNY recommends Express Service.
2. As for normal (regular) order weighting over 45kgs, SUNNY recommends Air Cargo.
3. As for big diameter saw blade or order with heavy weight, SUNNY recommends Sea Cargo.
4. We will inform you the approximate shipping date before order placing.
Terms of payment
TT, western union, Money Gram and PayPal
As for bulk order, L/C is also available
100% payment before delivery
[2013080204]
| diameter mm | inch | core thickness | segment size | segment number |
| 300 | 12 | 2.2/2.0 | 40*3.0/2.8*8(10)(12)(15) | 21 |
| 400 | 16 | 2.6/2.8 | 40*3.4/3.6/3.8*8(10)(12)(15)(20) | 28 |
| 600 | 24 | 3.6 | 40*4.6*8(10)(12)(15)(20) | 42 |
| 800 | 32 | 4.5 | 40*6.0*8(10)(12)(15)(20) | 46/57 |
| 1000 | 40 | 5.5 | 24*7.0/6.4*10(12)(15)(20) | 70 |
| 1600 | 64 | 7.2 | 24*9.0/8.4*10(12)(15)(20) | 108 |
| 1800 | 72 | 8.0 | 24*9.8/9.2*10(12)(15)(20) | 120 |
| 2000 | 80 | 8.0 | 24*10.5/9.5*10(12)(15)(20) | 128 |
| 2500 | 110 | 9.0 | 24*12.5/11.5*15(20) | 140 |
| 3500 | 140 | 10.0 | 24*14.5/13.5*15(20) | 180 |
| Other specifications are available upon your request | |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
