| Prod Model: |
DS-1 |
| Segment Type: |
Grooved Type |
| Shape: |
Rectangular Segment |
| Core Thickness: |
5.0-8.5mm |
| Cutting Material: |
Marble/Limestone and Other Soft Stone |
| Diamond Saw Blade Size: |
900-2000mm |
| Segment Height: |
8/9/10mm |
| OEM&ODM: |
Yes |
| Brand: |
Jdk |
| Customized: |
Customized |
| Delivery Time: |
3-5days |
Product Description
| Rectangular Segment (Product Code: JDK-SFM ) |
| Features: | | | | | |
| 1.The segment has good sharpness and high efficiency at the process of cutting. |
| 2.Smooth cutting ,flat surface and even size. |
| 3.It works in low noise ,little pollution and small cutting slot. |
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
| JDK Blocking Cutting Segment | Φ900 | 5.5/5.0 | 24x7.5x8(10) | 64 | Marble Limestone/ other soft stone |
| Φ1000 | 5.5/5.0 | 24x7.5x8(10) | 70 |
| Φ1200 | 6/5.5 | 24x8.0x8(10) | 80 |
| Φ1400 | 6 | 24x8.5x8(10) | 92 |
| Φ1600 | 7.2 | 24x9.5x9(10) | 108 |
| Φ1800 | 8 | 24x10x9(10) | 120 |
| Φ2000 | 8/8.5 | 24x11x9(10) | 128 |
Other specification are available upon request.
Attention:If you only order diamond segments from us, to get the best performance, we would suggest you use high frequency Silver Welded machine to make the brazing.
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:T/T, Western Union, L/C, Cash
Delivery time:For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs

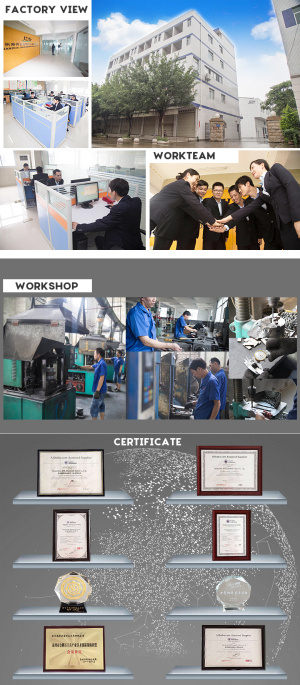

Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
