| Prod Model: |
SY-SB-271 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Steel Core Thickness(mm): |
2.2 -10.0 |
| Cutting For: |
Granite, Marble, Sandstone, Limestone. |
| Material: |
Diamond |
| Support: |
OEM |
| Main Market: |
America, England, Mexico, Brazil, India. |
| Use For: |
Wet |
| Export Area: |
Global |
| Welding Method: |
High-Frequency |
| Color: |
as Requet |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Drilling |
| Saw Blade External Diameter: |
350mm |
| Brand: |
Sunny |
| Specification: |
14 |
Product Description
Product features:
1. Cutting granite in high speed without chipping.
2. Long cutting life and stable performance.
3. Segment is very sharp, high efficiency.
4. Through the validation tested scientific formula.
5. Advanced production process for sintering.
6. Using high quality raw materials, imported cobalt powder and nickel powder, and high-quality diamond single crystals
7. Strict product quality inspection processes.

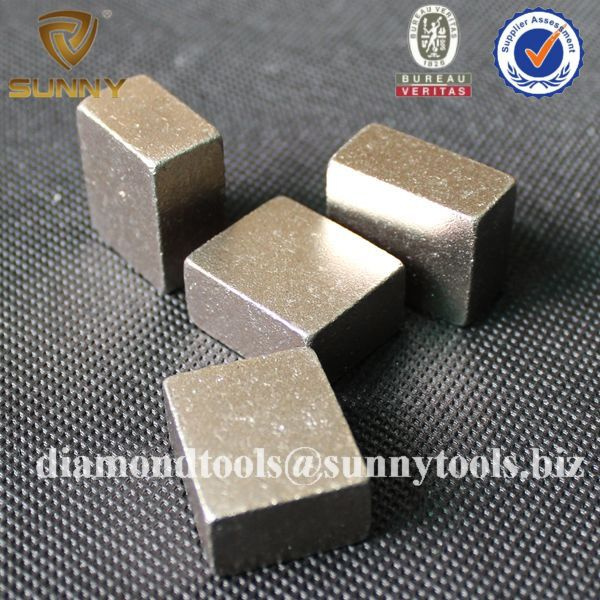

| Small diameter (300 – 800 mm) diamond circular saw blade segments for cutting |
| Diameter | Inch | Core Thickness | Segment Size | Segment
Number | Silent/non silent | Weld Technology |
| mm |
| mm | mm | pcs |
|
|
| φ300 | 12" | 2.2/2.0 | 40x3.0/2.8x8(10)(12)(15) | 21 | Silent/non silent | Laser/High Frequency |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x8(10)(12)(15)(20) | 24 | Silent/non silent | Laser/High Frequency |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x8(10)(12)(15)(20) | 28 | Silent/non silent | Laser/High Frequency |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 32 | Silent/non silent | Laser/High Frequency |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 36 | Silent/non silent | Laser/High Frequency |
| φ600 | 24" | 3.6 | 40x4.6x8(10)(12)(15)(20) | 42 | Silent/non silent | Laser/High Frequency |
| φ700 | 28" | 4 | 40x5.2x8(10)(12)(15)(20) | 42 | Silent/non silent | Laser/High Frequency |
| φ800 | 32" | 4.5 | 40x6.0x8(10)(12)(15)(20) | 46/57 | Silent/non silent | Laser/High Frequency |
| Big diameter (900 – 3500 mm) diamond circular saw blade segments for cutting |
| Diameter | Inch | Core Thickness | Segment Size | Segment
Number | Silent/non silent | Weld Technology |
| mm |
| mm | mm | pcs |
|
|
| φ900 | 36" | 5 | 24x6.6/6.0x10(12) (15)(20) | 64 | Non | High Frequency |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 | Non | High Frequency |
| φ1200 | 48" | 6 | 24x8.0/7.4x10(12) (15)(20) | 80 | Non | High Frequency |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 | Non | High Frequency |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 | Non | High Frequency |
| φ1800 | 72" | 8 | 24x9.8/9.2x10(12) (15)(20) | 120 | Non | High Frequency |
| φ2000 | 80" | 8 | 24x10.5/9.5x10(12)(15)(20) | 128 | Non | High Frequency |
| φ2200 | 88" | 9 | 24x11.5/10.5x(15)(20) | 132 | Non | High Frequency |
| φ2500 | 110" | 9 | 24x12.5/11.5x(15)(20) | 140 | Non | High Frequency |
| φ3000 | 120" | 10 | 24x13.5/12.5x(15)(20) | 160 | Non | High Frequency |
| φ3500 | 140" | 10 | 24x14.5/13.5x15 (20) | 180 | Non | High Frequency |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
