| Prod Model: |
DH1-7091 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
| Usage: |
Multi Blade |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
| Pattern: |
Arrow |
| Sharpness: |
Good |
| For: |
Granite and Hard Stone |
| Welding: |
Silver Welding |
| Advantage: |
Sharp and High Efficiency |
| Contact: |
David Huang |
Product Description

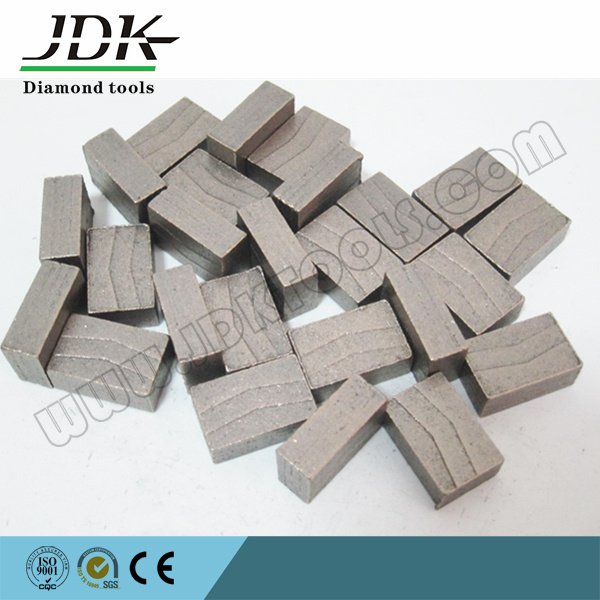

Diamond Segment Multi Blade Segments for Granite Cutting 5.5 6.5mm
Diamond Segment Multi Saw Blades Segments for Granite
Segment is the main part of diamond tools, we provide diamond segments for cutting granite, marble, sandstone, limestone, and other stone cutting applications, also ceramic, concrete, asphalt, etc. Our diamond segments are working very well specially on granite & Marble, the diamond saw segment dimension is available according to customer's requirements. We aim to improve the diamond segments cutting efficiency meanwhile reduce the cost
Usage and Features
1. Used for the saw blade from diameter 900mm to 3500mm.
2. Applicable for granite, marble, limestone, sandstone, concrete, asphalt and non-metal materials cutting.
3. Characterized by high sharpness and long lifespan.
4. We can design the diamond segments according to stone feature, such as hard, medium-hard or soft.

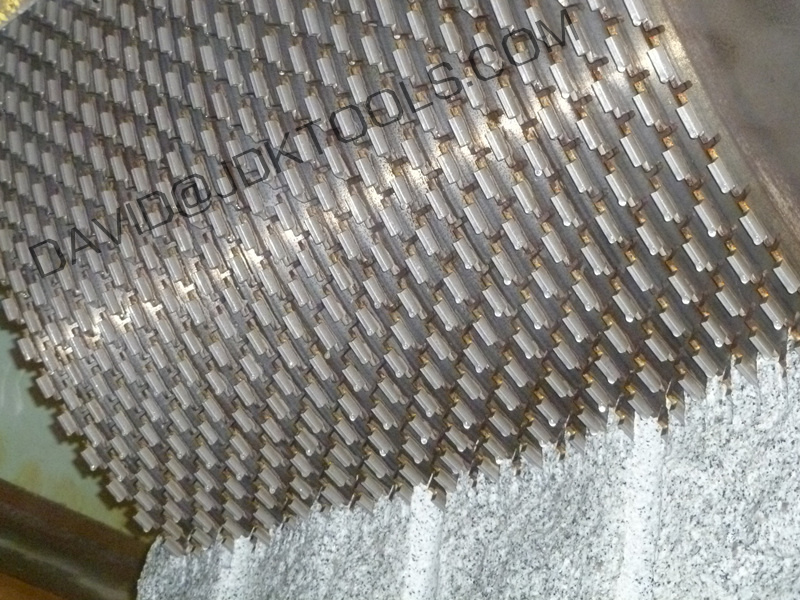

5. Suit for multi-saw blades or gang saw also and other specifications are available according to customers' requirements.
Features:
1) Suitable for cutting blades with a diameter range from 300 to 4, 200mm
2) Customized specifications are acceptable
3) High cutting efficiency and long usage life
4) Can be produced for single blade, and multi-blade
5) Smooth and fast cutting.
| Conical Multi Segment (Product Code : JDK- Multi*>>) |
| Features: | | | | | |
| 1.Conical design multi segment work in low nosie,small cutting slot which ensure max use of stone and uniform thickness. |
| 2.Stable cutting,narrow cutting gap,stone waste reduction. |
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
| JDK Multi Blocking Cutting Segment | Φ1000 | 5.5/5.0 | 24x7.0/6.2x13(15) | 70 | Granite |
| Φ1200 | 6/5.5 | 24x7.5/6.5x13(15) | 80 |
| Φ1400 | 6.5 | 24x8.4/7.6x13(15) | 92 |
| Φ1600 | 7/7.2 | 24x9.2/8.4x13(15) | 108 |
| Other specification are available upon request. |
