| Prod Model: |
stone cutting segment |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

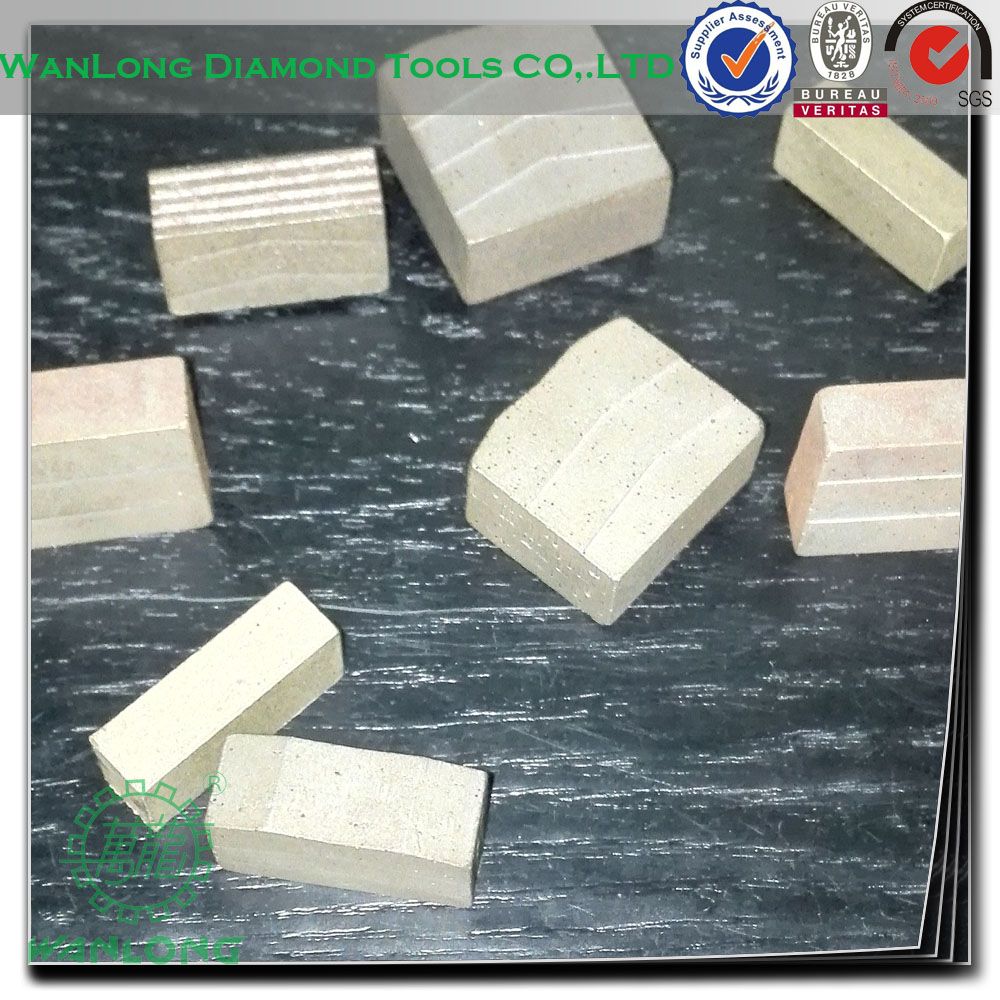

Diamond Segments for Granite |
| Sharp: |
T, R, Fan, Short, Sandwich |
| Application: |
Granite, Basalt, Sandstone, Marble Ect. |
| Use: |
Saw Blade, Grinding Wheel, Drill Bit Ect. |
| Segment Diameter: |
350-3500mm |
| Cutting Life: |
Premium Type |
| Segment Material: |
High Percent of Cobalt |
| Segment Bond: |
Soft, Medium, Hard |
| Advantage: |
High Performance |
| Type: |
Segments |
Product Description
Quality Wanlong tools makes stone processing easier.
WANLONG DIAMOND TOOLS CO., LTD has been manufacturing diamond tools for 20 years and is one of the leading companies in stone cutting industry in China.
Our mission is to "assist all stone factories in the world to cut stone more freely and efficiently", consequently we have focused our energy on improving our product quality and customer service.
With continuous research & development of our products by an excellent "Technology Solutions" team, WANLONG is now able to manufacture and sell a complete range of tools for cutting, granding and polishing natural stones, like granite, marble, sandstone, travitine, slate, quartz, basalt and other related construction materials. These tools are widely accepted in Chinese domestic market and also popular in Europe, the U. S. A, South Asia, and Middle-Eastern countries, with an export turnover of USD 20 million a year.
WANLONG Diamond Tools Co., Ltd looks forward to establishing a mutually beneficial relationship with all of you.
Diameter
(mm) | Width
(mm) | Height (mm) | Length
(mm) | Number of
segment (pcs) | Inner hole of
core (mm) | Thickness of
core (mm) |
| 200 | 3.2 | 10,12,15 | 40 | 14 | 50,60 | 1.8 |
| 250 | 3.2 | 10,12,15 | 40 | 17 | 50,60 | 2.2 |
| 300 | 3.2 | 10,12,15 | 40 | 21 | 50,60 | 2.2 |
| 350 | 3.2 | 10,12,15,20 | 40 | 24 | 50,60 | 2.2 |
| 400 | 3.6 | 10,12,15,20 | 40 | 28 | 50,60 | 2.6 |
| 450 | 4 | 10,12,15,20 | 40 | 32 | 50,60 | 3 |
| 500 | 4 | 10,12,15,20 | 40 | 36 | 50,60 | 3 |
| 550 | 4.6 | 10,12,15,20 | 40 | 40 | 50,60 | 3.6 |
| 600 | 4.6 | 10,12,15,20 | 40 | 42 | 50,60 | 3.6 |
| 700 | 5 | 10,12,15,20 | 40 | 52 | 50,60 | 4 |
| 750 | 5.5 | 10,12,15,20 | 40 | 56 | 50,60 | 4.5 |
| 800 | 5.5 | 10,12,15,20 | 40 | 46 | 50,60 | 4.5 |
| 850 | 5.5 | 10,12,15,20 | 40 | 50 | 50,60 | 4.5 |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 900 | 5.0 | 24×7.0/6.2×13(15,20) | 64 | Z3T/Z3T-M (conical) | Granite |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Granite |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3TZ3T-M (conical) | Granite |
| 1400 | 6.0 | 24×8.0/7.2×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Granite |
| 1800 | 7.5 | 24×10/9.2×13(15,20) | 120 | Z3T/Z3T-M (conical) | Granite |
| 2000 | 8.0 | 24×11/10×15(20) | 128 | Z3T/Z3T-M (conical) | Granite |
| 2200 | 9.0 | 24×11/10×15(20) | 132 | Z3T/Z3T-M (conical) | Granite |
| 2500 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 2700 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 3000 | 9.3 | 24×13/12×20(30) | 160 | Z3T/Z3T-M (conical) | Granite |
| 3500 | 9.5 | 24×13.5/12.5×20(30) | 180 | Z3T/Z3T-M (conical) | Granite |
Other specifications are available upon request.
Fujian Diamond Tool Co., Ltd. Was established in 1998, with imported advanced technology and cutting grinding machines, firstly cuts stone into 3-5mm laminated with Aluminum and Aluminum Honeycomb. This opens a new stage of stone building material industry in our country. With our great efforts and full experiences to improve our technology, we are successfully reduced the cost and promoted this kind of products to international market. Our annul output of Stone Panel reach 50000 square meters, and it has met good demand in USA, Europe, and Korea, etc. Recently, we newly use the Stone panel made into stone table top Panel, Stone countertop panel. We have been in a constant pursuit of enterprise spirit "Creative, Enterprising" redoubling our efforts for further im provements of innovations, we have created a new landmark in stone industry.
In the United States has an excellent and very professional exclusive partner SPI, and SPI just like a big family, they are working together with American people and helping them design wonderful, gentle and graceful homes...Any friends who from USA are interested in our products, please not hesitate to contact with our exclusive partner SPI in the United States, Surely SPI will take care of all your requests and supply you a very wonderful service.
Now is looking for agents in others countries, welcome you to join us and create a very wonderful future together.
