Diamond Segments Suitable High Voltage Sintering Machine

Prod Model:	XG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Diamond and Other Metal Powder
Size Of Segment:	Various as Customer Requirements
Segment Type:	Sandwich, Matrix or as Customer Requirments
Business Type:	Manufacturer, Trading Company
Type:	Power Tool Parts
Use For:	Wet Cutting
Welding Method:	High-Frequency
Cutting For:	Various Natural Stone (Granite, Marble, etc...)
Export Area/ Market:	Global
Main Market:	Brazil, India, Iran, European, South Amerian, etc

Product Description

Product Description:
1) high quality, smooth cutting without chip, easy welding, save electric, reduce the stone waste
2) universal wet cutting for different kinds of stone (granite marble sandstone etc...)
3) soft to hard bonds designed for cutting hard to soft materials
4) sandwich or grooved segment with any shapes for single or multi-blade as required.
5) reasonably priced with excellent service and consistent quality.
6) guarantee fast smooth cutting on each stone.
**Attn: Different market need different quality and sizes. We can make all kinds of sizes and quality or price according your requirement. **


Supplementary Explanation:
The segments are attached to the core by brazing with silver solder and fixed on circular blades, gang saws and circular single/multi-blade cutters;
High-quality diamond segment made from high-grade diamond by special and advanced techniques;
Segment for diameter 100mm to 3500mm blade;
Specifications supplied by customers are available;
High cutting efficiency and long life;

Segment can be produced for cutting granite, marble, sandstone, limestone, andesine, asphalt, tile, concrete and others. Our diamond segments are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.

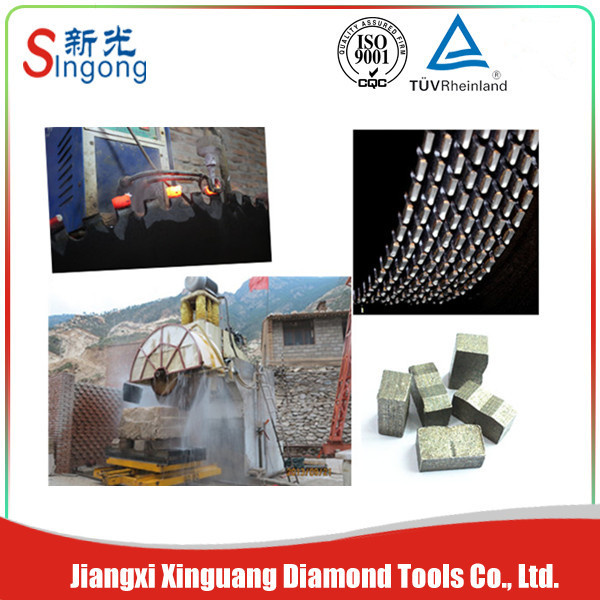

Photo of  Packing /Stone Processing/ Stone Fair




Our service:
√ Factory == √ Own exporting license == √ Quality control == √ Competitive price == √ Own technology == √ Oem

Diameter	Inch	Core Thickness	Segment Size	Segment No.
mm		mm	mm	pcs
φ300	12''	2.2/2.0	40*3.0/2.8*8(10)(12)(15)	21
φ350	14''	2.2/2.4	40*3.0/3.2*8(10)(12)(15)	24
φ400	16''	2.6/2.8	40*3.4/3.6/3.8*8(10)(12)(15)	28
φ450	18''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	32
φ500	20''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	36
φ450	18''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	32
φ500	20''	2.8/3.0	40*4.0/4.2*8(10)(12)(15)	36
φ600	24''	3.6	40*4.6*8(10)(12)(15)	42
φ700	28''	4.0	40*5.2*8(10)(12)(15)	42
φ800	32''	4.5	40*6.0*8(10)(12)(15)	46/57
φ900	36''	5.0	24*6.6/6.0*10(12)(15)(20)	64
φ1000	40''	5.5	24*7.0/6.4*10(12)(15)(20)	70
φ1200	48''	6.0	24*8.0/7.4*10(12)(15)(20)	80
φ1300	50''	6.5	24*8.4/7.8*10(12)(15)(20)	88
φ1600	64''	7.2	24*9.0/8.4*10(12)(15)(20)	108
φ1800	72''	8.0	24*9.8/9.2*10(12)(15)(20)	120
φ2000	80''	8.0	24*10.5/9.5*10(12)(15)(20)	128
φ2200	88''	9.0	24*11.5/10.5*(15)(20)	132
φ2500	110''	9.0	24*12.5/11.5*(15)(20)	140
φ3000	120''	10.0	24*13.5/12.5*(15)(20)	160
φ3500	140''	10.0	24*14.5/13.5*(15)(20)	180
