| Prod Model: |
SUDT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Professional |
| Support: |
OEM |
| Usage: |
Stone Cutting, Drilling, Abrasive and Carving |
| Graininess: |
According Process Material |
| Thickness: |
According Tools Specification |
| Shape: |
as Request |
| Kind: |
Sawing, Drilling, Grinding Tools |
| Manufacturing Arts: |
Diamond with Metal or Resin Bond |
| Saw Blade External Diameter: |
as Request |
Product Description
Product Description:

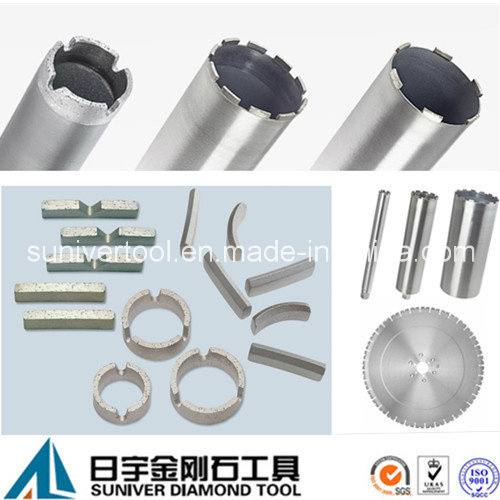

ITEM NAME: Diamond toolsUsage: Stone and construction industry sawing, drilling, grinding.
Specification: As request.
Brand: SUNIVER
Application: Natural stone, construction material, reinforced concrete, concrete,etc.
Machine: Angle grinder, handheld saw, floor saw, stone saw, wall saw, air polisher, grinding machine.
Material:Diamond, alloy powder, resin.
Support: OEM
Use for:Wet/Dry
Export Area:Global
Welding Method:High-Frequency/Hot pressed sintered/laser weldingProduct features:1. Long life & smooth surface.
2. Fast & stable cutting.
3. Smooth cutting.
4. High cutting efficiency to save energy consumption.

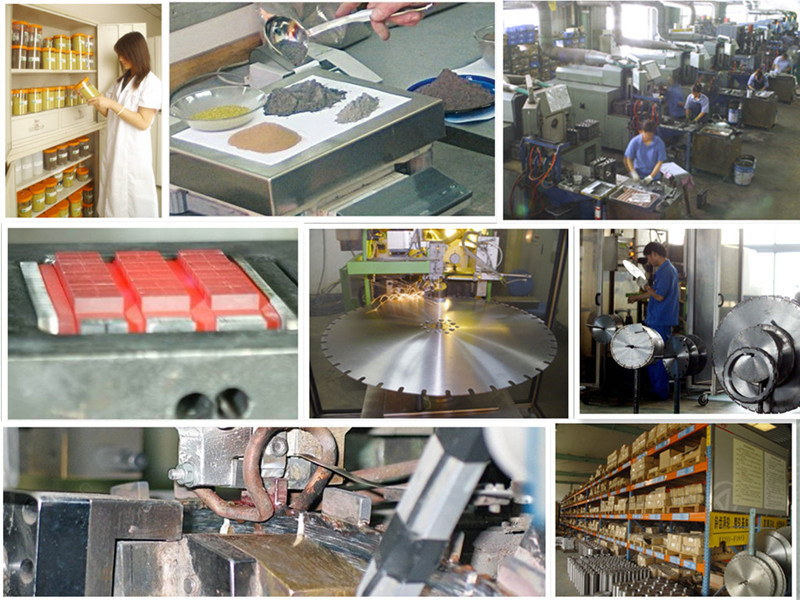

Production:

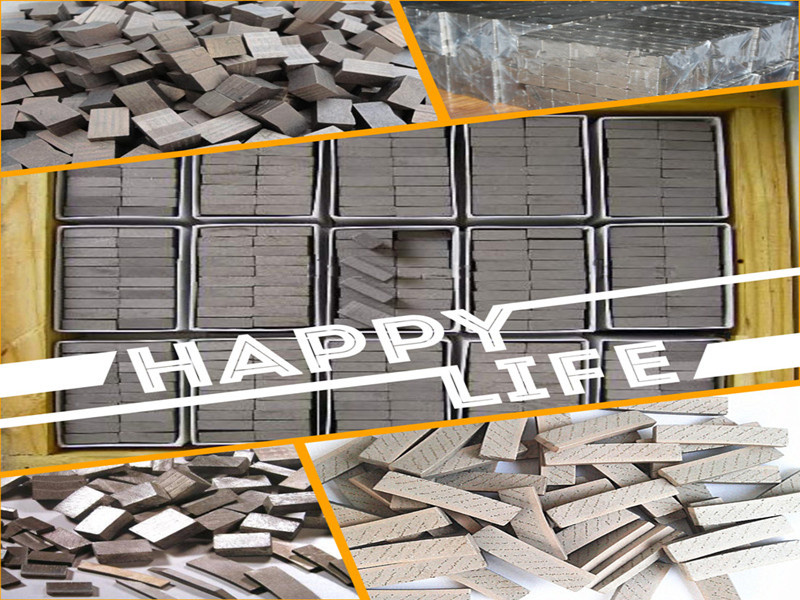

Packing:
Shipping:
| Diamond segments | UNIT: mm |
| Item Numder | Diameter | Segment Dimension
L X W X H | Core Thickness | Segment Number | Application |
| 250 | 40 x 2.5 x 10 | 1.8/2.0 | 18 | For trimming and Slabbing Granite |
| 300 | 40 x 3.0 x 10/15 | 1.8/2.2/2.4 | 21 |
| 350 | 40 x 3.0 x 10/15 | 1.8/2.2/2.4 | 24 |
| 400 | 40 x 3.6 x 10/15 | 2.2/2.6/2.8 | 28 |
| 450 | 40 x 4.0 x 10/15 | 2.5/2.8/3.3 | 32 |
| 500 | 40 x 4.2 x 10/15 | 3.0/3.3 | 36 |
| 550 | 40 x 4.2 x 10/15 | 2.8/3.5 |
|
| 600 | 40 x 4.6 x 10/15 | 2.8/3.5 | 42 |
| 700 | 40 x 5.0 x 10/15 | 3.6/4.0 |
|
| 800 | 40 x 6.0 x 10/15 | 4.5 | 50 |
(HIGH-FREQUENCY WELDED, suitable for cutting granite)
| UNIT: mm |
| Item Numder | Diameter | Segment Dimension
L X W X H | Core Thickness | Segment Number | Application |
| 900 | 24 x 6.6/6.2 x 10/15 | 5.0 | 64 | For Cutting Granite Block |
| 1000 | 24 x 7.4/6.8 x 10/12/15 | 5.0 | 70/72 |
| 1100 | 24 x 7.4/6.8 x 10/12/15 | 5.5 | 74 |
| 1200 | 24 x 7.5/7.0 x 10/12/15 | 5.5 | 80 |
| 1300 | 24 x 7.6/7.0 x 10/12/15 | 6.0 | 88 |
| 1350 | 25 x 8.4/7.7 x 12/15/20 | 6.0 | 88 |
| 1400 | 24 x 9.0/8.4 x 10/12/15 | 6.5 | 96 |
| 1600 | 24 x 9.2/8.6 x 12/15/20 | 6.5 | 104/108 |
| 1800 | 24 x 9.5/9.0 x 12/15/20 | 7.0 | 120 |
| | 2000 | 24 x 10.6/9.6 x 15/20 | 8.0 | 128 |
| 2200 | 24 x 11.5/10.5 x 15/20 | 8.5 | 132/136 |
| 2500 | 24 x 12/11.5/11 x 20 | 9.5 | 140 |
| 2700 | 24 x 12/11.5/11 x 20 | 10 | 140 |
| 3000 | 24 x 12.5/12/11.5 x 20 | 10 | 160 |
| 3500 | 24 x 13/12.3/11.1 x 20 | 10 | 180
|
QUANZHOU WANTZEL DIAMOND TOOL Co., Ltd is a professional diamond tool supplier which produce professional quality diamond tools for the stone industry and construction industry. We have long-standing relationships with a lot of professional users overseas and continually develop and source the best products with reasonable prices according to different requests.
Our Products:
1. Resin polishing pads and Metal grinding shoes for concrete floor.
2. Laser weld saw blades for reinforced concrete, asphalt etc.
1) For hand held saw.
2) For walk behind saw.
3) For wall saw.
3. Laser weld core drills fro reinforced concrete.
4. Diamond saw blades for cutting stones.
5. Diamond core drills fro stones.
6. Diamond wires for stone quarry, stone block, reinforced concrete.
7. Diamond grinding/polishing tools for stone.
8. Diamond segments for re-tip.
Our Philosophy:
1) Customer-Oriented
2) Professionally meeting your needs
3) Competence due to long-time experience
4) Long-term customer relationships
Our Promise:
The best quality is guaranteed for customer satisfaction.
