| Prod Model: |
BTDW |
| Usage: |
for Stone, Concrete and Steel Cutting |
| Size: |
7.2mm -11.5mm |
| Beads Diameter: |
7.2mm - 11.5mm |
| Coating Type: |
Rubber, Plastic, Spring |
| Diamond Beads: |
Sintered |
| Cutting Material: |
Granite, Marble, Concrete, etc |
| Material Hardness: |
Hard, Middle, Soft |
| Color: |
Black, Red, Yellow, Blue |
| Main Market: |
USA, Canada, Europe, South America, Brazil, etc |
| Beads: |
40 |
Product Description

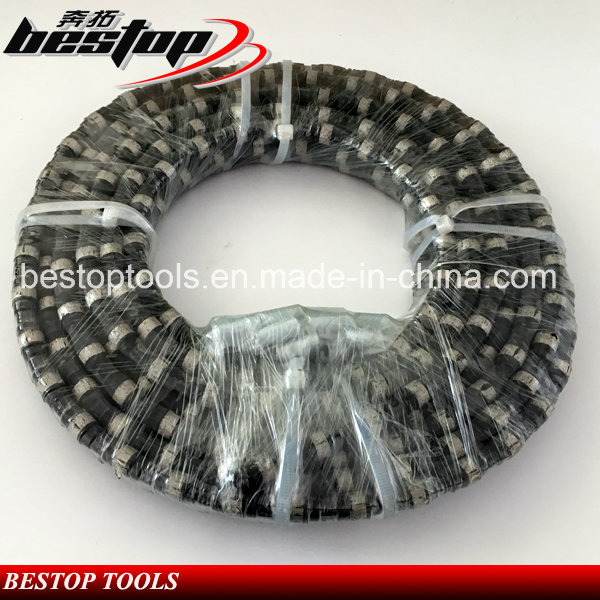

Bestop Diamond Tools diamond wires are advanced, high efficient, and easy-to-use. Diamond wire saw is featuring
steady fixed beads, high cutting efficiency, and long use life. With our full line of diamond tools for cutting, grinding
and polishing, as well as laser welded diamond tools, diamond drill bit and electroplated diamond tools, we
provide our custtomers with best service and top quality.
Specification and performance parameters: | Diamond Wire for Reinforced Concrete |
| Mainly used in cutting concrete, reinforced concrete, steel components and steel. It's used in the demolition of houses, bidgets and other bulidings. Also can be applied to cables, steel objects. According to the different cutting objects, providing compatible matrix formularte with wire, beads, specifications and different structures. |
| Bead dia. | Coating | Beads | Cutting material | Line speed | Efficiency | Wire life |
| (mm) | (pcs/m) | (m/s) | (m²/h) | (m²/m) |
Φ10.5
Φ11
Φ11.5 | Rubber+Spring |
40
| Normally reinforced | 20-30 | 2-5 | 3-8 |
| Strengthening reinforced | 20-25 | 1-2 | 1-3 |
| Steels or metal structure | 20-25 | 0.5-1.5 | 0.5-1.5 |
| Diamond Wire for Granite Quarrying |
| Mainly used in various types of granite mining, can also be applied to the trimming of the granite quarry. According to stone's different, adapted to provide the matrix formulation, wire saw beads specifications and different structures. |
| Bead dia. | Coating | Beads | Cutting material | Line speed | Efficiency | Wire life |
| (mm) | (pcs/m) | (m/s) | (m²/h) | (m²/m) |
Φ11.5
Φ11.0
|
Rubber
Rubber+Spring
|
40
| Hard granite | 18-22 | 2-4 | 7-9 |
| Middle hard granite | 22-25 | 4-8 | 8-15 |
| Soft granite | 25-30 | 8-12 | 16-22 |
Φ11.5
Φ11.0 | Rubber
Rubber+Spring |
40
| Hard sandstone | 32-36 | 5-10 | 10-20 |
| Soft sandstone | 28-32 | 1-5 | 15-30 |
| Diamond Wire for Marble Quarrying |
| Mainly used in various kinds of marble quarry mining and can also be used in the marble block squaring. According to stone's different, adapted to provide the matrix formulation, wire saw beads specifications and different structures. |
| Bead dia. | Coating | Beads | Cutting material | Line speed | Efficiency | Wire life |
| (mm) | (pcs/m) | (m/s) | (m²/h) | (m²/m) |
Φ11.5
Φ11.0
Φ10.5 |
Rubber
|
40
37
33
| Hard marble | 20-30 | 4-9 | 15-25 |
| Middle hard marble | 20-35 | 8-15 | 15-35 |
| Soft marble | 25-35 | 10-20 | 20-50 |
Φ11.0
Φ10.5 | Rubber+Spring |
40
| Hard marble | 20-30 | 4-9 | 15-25 |
| Middle hard marble | 20-35 | 8-15 | 15-35 |
| Soft marble | 25-35 | 10-20 | 20-50 |
Company Information:Quanzhou Bestop Diamond Tools Co., Ltd was established in
2003, with
2 main production lines:
1. Diamond Grinding Tools, main products including Concrete Grinding Plate, Concrete Grinding Disc,
Diamond Grinding Wheel, Diamond Polishing Pads etc.
2. Diamond Cutting Tools: Diamond Cutting Segment, Diamond Saw Blade, Diamond Wire etc, .
Along with our high quality and service, BESTOP is gaining more popularity in international business.
FAQ:1. Why you choose us?
A. Reliable manufacturer with more than 10 years' experience.
B. Best servive, top quality. 100% QC inspection before shipment.
C. Our product hot sale in American, Australian, European market.
2. What kind of payment term you accepet?
We accepet T/T, Wester Union, Paypal, Money Gram etc.
3. How to Ship the products?
A. Urgent order with less weight or samples we suggest express like dhl.
B. Normal orders weight over 45kgs can be sent by Air.
C. Heavy weight or big dimension we recommend it sent by Sea.
Quanzhou Bestop Diamond Tools Co., Ltd established in 2003, is a professional manufacturer that produce and export different types of diamond tools. We have two main production lines: Diamond Grinding Tools and Diamond Cutting Tools. With high quality and best price, BESTOP brand has gradually to be known in the whole world.
Since our established, we have focused on diamond grinding tools for concrete, granite, marble etc. With more than 10 years' hard work, our diamond concrete grinding plates, concrete grinding discs, diamond cup grinding wheels, floor polishing pads, granite diamond fickerts and marble grinding frankfurts are hot sale in Australian, American and European market. We have made many different types of diamond grinding tools to meet our customers' different requirement. With premium quality and reasonable price, to help customers save much energy and cost!
In diamond cutting tools area, we make high quality diamond segments for granite, marble, sandstone, limestone, basalt etc cutting. We have enterprised in researching and producing ARIX Diamond Tools. Which provised 50% to 100% improvement in blade life and cutting speed. And our laser technology product like concrete laser blade, laser diamond core drill bits, also sell well in the market.
The factory cover area 5000 Square Meters. Offer a variety of products in the whole world. Nest works of trust we have developed over many years, offering customers the best service. We sincerely hope to be able to develop together. Bestop also provide purchasing agent service. We have the more reliable factory channel in China. If you want to purchase any product from China, Please send us email or welcome to our office.
