| Prod Model: |
4A6-2-10 |
| Delivery Time: |
Within 3 Days |
| Payment: |
Western Union /Paypal |
| Tool Material: |
Diamond |
| Size: |
Can Be Customize According to The Drawing |
| Type: |
Stone Taper Carving Bit |
| Material: |
Brazing |
| Use: |
for Stone,Marble Carving |
Product Description

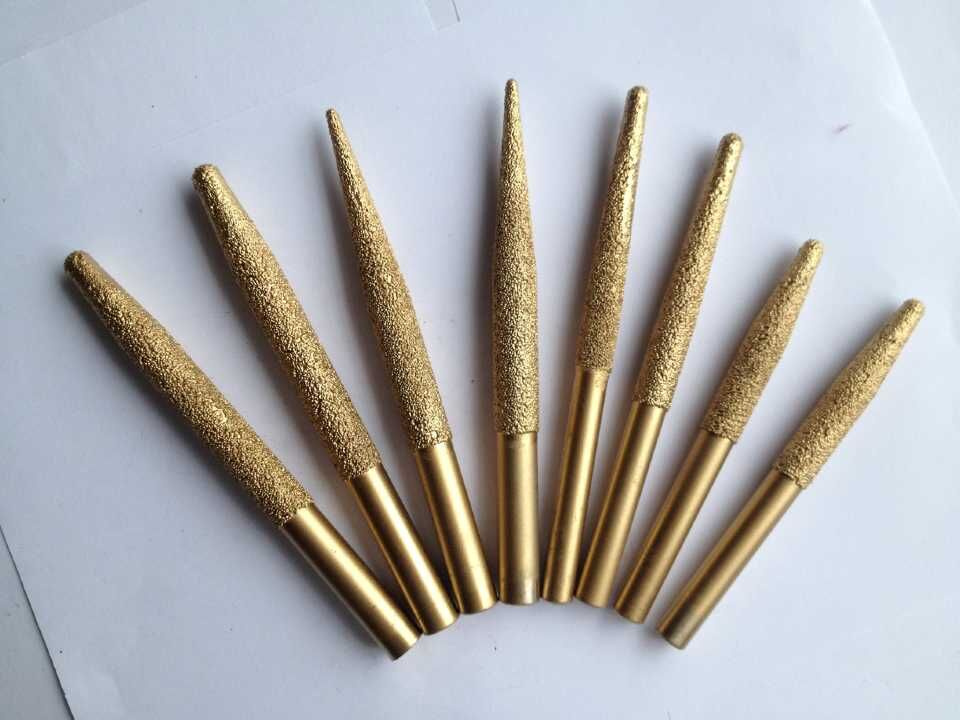

diamond tools for stone,glass engraving cnc router
1.Description:
(1) Type: diamond tools;
(2) Shank Diameter:6mm/ 8mm/10mm;
(4) Cutting edge diameter: 3mm-6mm;
(5) Cutting edge length: 20mm/30mm
2. Suitable for:
End milling, carving, line engraving, polishing, slotting, hollow-cutting, 3d embossment, cutting, flat processing etc;
Hard granite, stone, marble, glass, ceramic tiles, brick, jade peeling, etc;
3. Features:
(1) Using high-tech "Metallurgical melt diamond technology" manufacturing
(2) sharpness, high efficiency engraving, head deformation and high precision
4. Specification:
(1) Stone Tools Type: Metallurgical melt diamond tools
(2) Diameter: 8mm/10mm
(3) OVL: Overall Length;CEL: Cutting Edge Length;CED: Cutting Edge Diameter;
| NO. | MODEL | SHK(mm) | CED(mm) | CEL(mm) |
| 1 | 4A6-2-10 | 6 | 2 | 10 |
| 2 | 4A6-3-10 | 6 | 3 | 10 |
| 3 | 4A6-4-10 | 6 | 4 | 10 |
| 4 | 4A6-2-15-10 | 6 | 2 | 15 |
| 5 | 4A6-2-20-10 | 6 | 2 | 20 |
| 6 | 4A6-2-25-10 | 6 | 2 | 25 |
| 7 | 4A6-2-30-10 | 6 | 2 | 30 |
| 8 | 4A8-2-10-10 | 8 | 2 | 10 |
| 9 | 4A8-2-15-10 | 8 | 2 | 15 |
| 10 | 4A8-2-20-10 | 8 | 2 | 20 |
| 11 | 4A8-2-25-10 | 8 | 2 | 25 |
| 12 | 4A8-2-30-10 | 8 | 2 | 30 |
| 13 | 4A8-3-10-10 | 8 | 3 | 10 |
| 14 | 4A8-3-15-10 | 8 | 3 | 15 |
| 15 | 4A8-3-20-10 | 8 | 3 | 20 |
| 16 | 4A8-3-25-10 | 8 | 3 | 25 |
| 17 | 4A8-3-30-10 | 8 | 3 | 30 |
| 18 | 4A8-4-10-10 | 8 | 4 | 10 |
| 19 | 4A8-4-15-10 | 8 | 4 | 15 |
| 20 | 4A8-4-20-10 | 8 | 4 | 20 |
| 21 | 4A8-4-25-10 | 8 | 4 | 25 |
| 22 | 4A8-4-30-10 | 8 | 4 | 30 |
| 23 | 4A8-5-10-10 | 8 | 5 | 10 |
| 24 | 4A8-5-15-10 | 8 | 5 | 15 |
| 25 | 4A8-5-20-10 | 8 | 5 | 20 |
| 26 | 4A8-5-25-10 | 8 | 5 | 25 |
| 27 | 4A8-5-30-10 | 8 | 5 | 30 |
| 28 | 4A8-6-10-10 | 8 | 6 | 10 |
| 29 | 4A8-6-15-10 | 8 | 6 | 15 |
| 30 | 4A8-6-20-10 | 8 | 6 | 20 |
| 31 | 4A8-6-25-10 | 8 | 6 | 25 |
| 32 | 4A8-6-30-10 | 8 | 6 | 30 |
| 33 | 4A10-2-10-10 | 10 | 2 | 10 |
| 34 | 4A10-2-15-10 | 10 | 2 | 15 |
| 35 | 4A10-2-20-10 | 10 | 2 | 20 |
| 36 | 4A10-2-25-10 | 10 | 2 | 25 |
| 37 | 4A10-2-30-10 | 10 | 2 | 30 |
| 38 | 4A10-3-10-10 | 10 | 3 | 10 |
| 39 | 4A10-3-15-10 | 10 | 3 | 15 |
| 40 | 4A10-3-20-10 | 10 | 3 | 20 |
| 41 | 4A10-3-25-10 | 10 | 3 | 25 |
| 42 | 4A10-3-30-10 | 10 | 3 | 30 |
| 43 | 4A10-4-10-10 | 10 | 4 | 10 |
| 44 | 4A10-4-15-10 | 10 | 4 | 15 |
| 45 | 4A10-4-20-10 | 10 | 4 | 20 |
| 46 | 4A10-4-25-10 | 10 | 4 | 25 |
| 47 | 4A10-4-30-10 | 10 | 4 | 30 |
| 48 | 4A10-5-10-10 | 10 | 5 | 10 |
| 49 | 4A10-5-15-10 | 10 | 5 | 15 |
| 50 | 4A10-5-20-10 | 10 | 5 | 20 |
| 51 | 4A10-5-25-10 | 10 | 5 | 25 |
| 52 | 4A10-5-30-10 | 10 | 5 | 30 |
| 53 | 4A10-6-10-10 | 10 | 6 | 10 |
| 54 | 4A10-6-15-10 | 10 | 6 | 15 |
| 55 | 4A10-6-20-10 | 10 | 6 | 20 |
| 56 | 4A10-6-25-10 | 10 | 6 | 25 |
| 57 | 4A10-6-30-10 | 10 | 6 | 30 |
| 58 | 4A10-8-10-10 | 10 | 8 | 10 |
| 59 | 4A10-8-15-10 | 10 | 8 | 15 |
| 60 | 4A10-8-20-10 | 10 | 8 | 20 |
| 61 | 4A10-8-25-10 | 10 | 8 | 25 |
| 62 | 4A10-8-30-10 | 10 | 8 | 30 |
| 63 | 4A12-2-10-10 | 12 | 2 | 10 |
| 64 | 4A12-2-15-10 | 12 | 2 | 15 |
| 65 | 4A12-2-20-10 | 12 | 2 | 20 |
| 66 | 4A12-2-25-10 | 12 | 2 | 25 |
| 67 | 4A12-2-30-10 | 12 | 2 | 30 |
| 68 | 4A12-3-10-10 | 12 | 3 | 10 |
| 69 | 4A12-3-15-10 | 12 | 3 | 15 |
| 70 | 4A12-3-20-10 | 12 | 3 | 20 |
| 71 | 4A12-3-25-10 | 12 | 3 | 25 |
| 72 | 4A12-3-30-10 | 12 | 3 | 30 |
| 73 | 4A12-4-10-10 | 12 | 4 | 10 |
| 74 | 4A12-4-15-10 | 12 | 4 | 15 |
| 75 | 4A12-4-20-10 | 12 | 4 | 20 |
| 76 | 4A12-4-25-10 | 12 | 4 | 25 |
| 77 | 4A12-4-30-10 | 12 | 4 | 30 |
| 78 | 4A12-5-10-10 | 12 | 5 | 10 |
| 79 | 4A12-5-15-10 | 12 | 5 | 15 |
| 80 | 4A12-5-20-10 | 12 | 5 | 20 |
| 81 | 4A12-5-25-10 | 12 | 5 | 25 |
| 82 | 4A12-5-30-10 | 12 | 5 | 30 |
| 83 | 4A12-6-10-10 | 12 | 6 | 10 |
| 84 | 4A12-6-15-10 | 12 | 6 | 15 |
| 85 | 4A12-6-20-10 | 12 | 6 | 20 |
| 86 | 4A12-6-25-10 | 12 | 6 | 25 |
| 87 | 4A12-6-30-10 | 12 | 6 | 30 |
| 88 | 4A12-8-10-10 | 12 | 8 | 10 |
| 89 | 4A12-8-15-10 | 12 | 8 | 15 |
| 90 | 4A12-8-20-10 | 12 | 8 | 20 |
| 91 | 4A12-8-25-10 | 12 | 8 | 25 |
| 92 | 4A12-8-30-10 | 12 | 8 | 30 |
| 93 | 4A12-10-10-10 | 12 | 10 | 10 |
| 94 | 4A12-10-15-10 | 12 | 10 | 15 |
| 95 | 4A12-10-20-10 | 12 | 10 | 20 |
| 96 | 4A12-10-25-10 | 12 | 10 | 25 |
| 97 | 4A12-10-30-10 | 12 | 10 | 30 |
