| Prod Model: |
SY-ZH-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Diameter(mm): |
105 - 180 |
| Bore Size(mm): |
16/22.23 |
| Thickness(mm): |
5 |
| Height(mm): |
7/8 |
| Seg No.(PC): |
8 - 12 |
| Segment Type: |
Sintered Segment |
| Connection: |
M14, M16, 5/8"-11, 20mm, 22.23mm |
| Product Shape: |
Turbo Wave, Single Row, Double Row |
| Delivery Time: |
7 - 15 Days |
| Company Website: |
HTTP://Www.Sunnytools.Biz/ |
Product Description

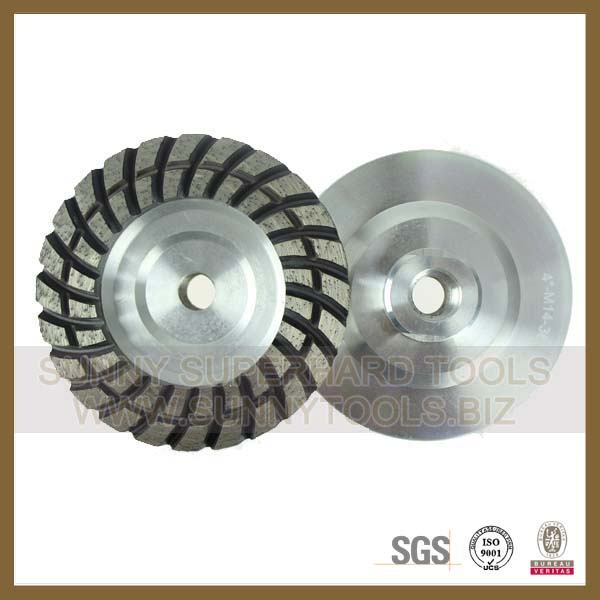

Top Quality Diamond Cup Wheel for Grinding Stone Concrete
SUNNY's cup wheels are designed for profiling edges, smoothing out inside sinkhole cuts, smoothing out rough surfaces and preparation of material for lamination and heavy stock removal.
They are the premium choice for any grinding, shaping or beveling work of concrete, granite and other stones.
They are designed with special swirl turbo segments which act as a turbofan for quick cooling of the working cup wheels. This will help prevent high temperature that will lead to short life and less aggressiveness of cup wheels.
The coarse type (diamond grits 30/40) is used for aggressive grinding. The medium type (diamond grits 70/80) is for slower grinding action.
Product Features:
Extended performance diamond matrix provides aggressive material removal.
Large grinding segments with heat treated steel bodies which provides increases durability and wheel life.
Light weight and high performance at an economical cost.
Ideal for stone edge preparation and shaping,
Smooth and precise grinding,
About us:
We Sunny Super hard Tools Co., Ltd are specialized in diamond tools manufacture with long history.
Our main products including:
1. Cutting Tools (Saw blade, Wire saw, Diamond segment...)
2. Grinding Polishing Tools (Calibration roller, flickers, Frankfurt, Cup wheel, Profiling wheel, polishing pad...)
3. Drilling tools (Finger bit, core drill...)
| Diameter | Bore size(mm/inch) | Segment Specification | Segment No. |
| mm | inch | Thickness(mm) | Height(mm) |
| 105 | 4" | 16/22.23 | 5/8"/7/8" | 5 | 7 | 8/8 |
| 115 | 4.5" | 16/22.23 | 5/8"/7/8" | 5 | 8 | 9/9 |
| 125 | 5" | 16/22.23 | 5/8"/7/8" | 5 | 8 | 9/9 |
|
|
| 150 | 6" | 16/22.23 | 5/8"/7/8" | 5 | 8 | 10/10 |
| 180 | 7" | 16/22.23 | 5/8"/7/8" | 5 | 8 | 12/12 |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
