Diamond Wheel Cutting Machine Alloy Wheel Repair CNC Lathe Awr32h
| Price: |
US $ 14000-17000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
AWR32H |
| Oversea Service: |
Offer Oversea Service |
| Cutter: |
Special Diamond Cutter |
| Probe: |

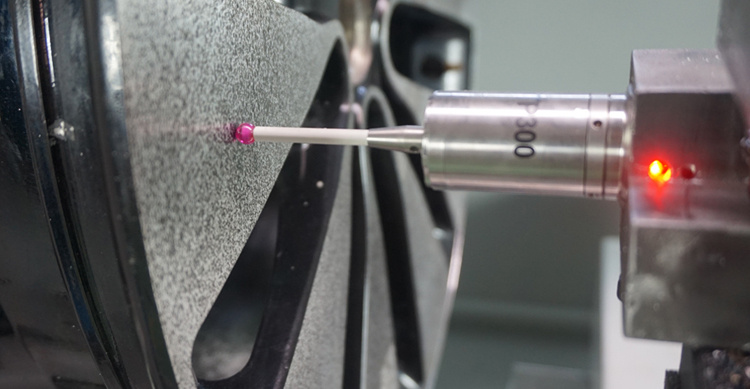

Touch Ruby Probe |
| Cutting Effect: |
Rainbow Line Effect or Cutting Line |
| Optimized Software: |
Designed for Optimize Program |
| Max Wheel Size: |
up to 27 Inch,30 Inch,or 32 Inch |
| Controller: |
CNC or PC |
| Clamping Form: |
3 Jaws Chuck |
| Machine Type: |
Flat Bed Machine |
| Voltage: |
3 Phase 380 or Your Request Voltage |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

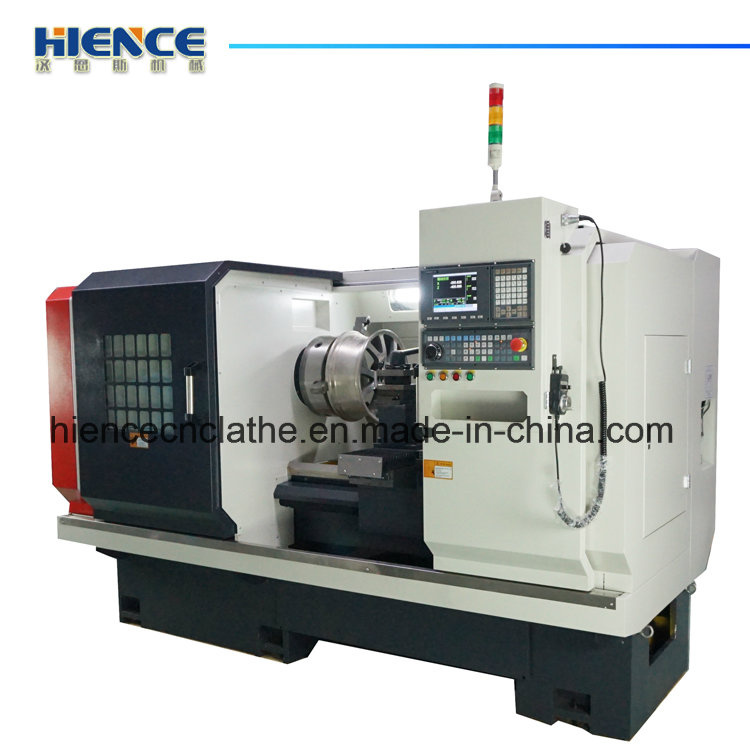

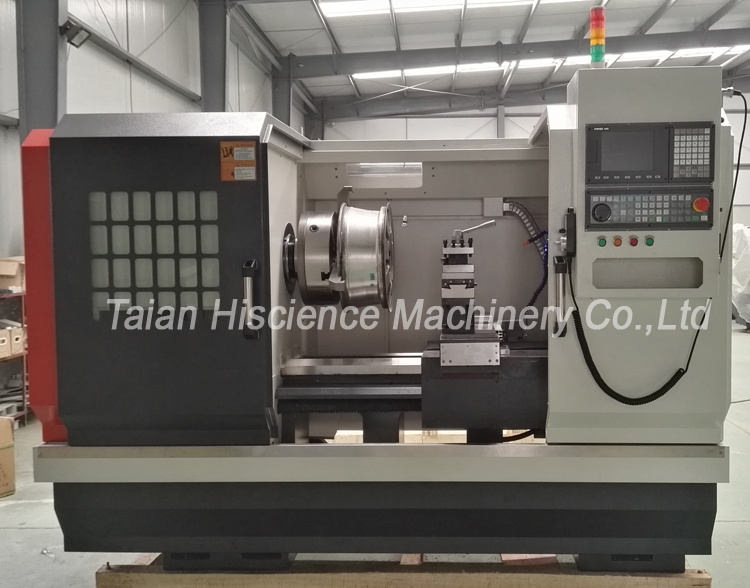

Diamond wheel cutting machine alloy wheel repair cnc lathe AWR32H
A.Specification List
| ITEMS | AWR32H |
Max. swing over bed (mm)(inch) | Φ880(30') |
Max. Diameter of wheel(mm) (inch) | Φ820(28') |
Cross slide travel (mm) | 450 |
Width of the rail (mm) | 400 |
Length of the rail (mm) | 1650 |
Size of the three-jaw chuck (inch) | 16' |
Range of spindle speed (RPM) | 50-1800 |
Spindle speed control | Automatic |
Spindle bore (mm) | Φ82 |
Taper of spindle bore | 1:20(Φ90) |
Taper of spindle nose | A2-10 |
Adjustable stroke of carrier in X direction | 100mm |
Max. size of tool post | 25×25mm |
Stations of tool carrier | 4 position |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min |
Motor power | 7.5KW |
Machine size | (L/W/H) (mm) | 2970×1660×2080 |
Package size | 3120×1810×2350 |
Net weight | 3200KGS |
C.Buyer Show
Company Information
FAQ:
1)Q: What is PC Alloy wheel repair machine?
A: PC alloy wheel repair machine is developed based on CNC wheel repair machine for alloy wheel repair or refurbishment. PC machine adopt 17'' muti-function touch screen industrial PC, can opereate easier and high efficient. We have improve the performance and add more function on the machine.
2)Q: What Max wheel size the wheel machine can cut?
A: We have many model machine can meet different customer's request. It is no problem for most of wheel size 22'', and can up to 32''.
3)Q: Can the machine cut special wheel,such as deep dish wheel?
A: The machine can probe and cut special wheel, it is no problem for deep dish wheel. We have self developed professional wheel repair software, can repair all wheel and can realize rainbow line effect.
4)Q: If your machine all steps are operated on machine, not need go to computer?
A: Detection, optimization and cutting can be finished in one system in a time.
5)Q: Is it easy to learn?
A: Yes, Friendly man- machine interface, easy to learn and the people without professional training can learn the operation easily in one hour. We also offer training video and detailed operation manual with machine.
6)Q: Is it easy to use?
A: Sure. The machine adopts 17 inch touch screen industry integrated machine,wireless key&mouse are set up and the mouse can be used together with the touch screen. The customer can establish their own database of different models of wheels and the saved data can be used in the cutting of same model.
7)Q:What is your service for the machine.A: The machine warranty is 1 year. The machine support the remote assistance, and any problems can contact with our company to start the after sale service.The software support remote upgrade, enjoy life free upgrade to the latest version.
Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.
We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.
Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.
CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.
The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.
The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.
Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
