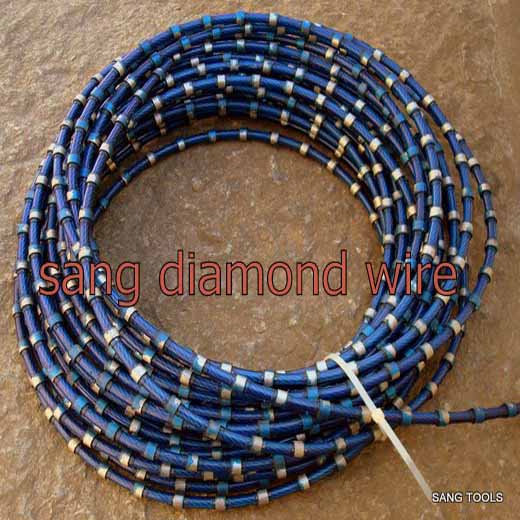

Diamond Wire Cutting Saw, Diamond Rope

Name: Diamond Wire Cutting Saw, Diamond Rope
Brand: tool-buy.com
SKU: 735554995
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 40/Meter
Trade Terms:	FOB,CPT,EXW
Min Order:	20/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Quanzhou Sang Diamond Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	SG-1023
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	40mm --140mm
Length:	2m -- 6m
Hardness:	45HRC ---55HRC
Coating:	According
MOQ:	20m

Product Description

Specifications of Product:
Suitable for working on Quarry, Stationary, Multi- and Profile wire saw machines.
Used for cutting stone and construction materials.

Item No.	Application	Coating	Diameter (D/d mm)	Wire Beads (pcs/m)	Hardness	Wire Speed (m/s)	Cutting Speed, m*m/h	Life
								m*m/m
SGWS-GQ115	Granite Quarry	Rubber	11.5 / 4.9	40	Soft	30-35	15-30	20-35
					Medium	25-30	10-25	20-30
					Hard	20-25	3-10	7-15
SGWS-MSQ11	Marble Quarry	Spring	11 / 4.9	28	Soft	30-35	8-12	30-60
					Medium	28-30	6-8	20-25
					Hard	25-28	3-6	15-20
SGWS-GS105	Granite Squaring	Plastic	10.5 / 4.9	37	Soft	28-30	1.5-3.0	15-25
					Medium	23-26	1.0-2.5	12-15
					Hard	20-25	0.5-1.0	8-12
SGWS-MS105	Marble Squaring	Plastic	10.5 / 4.9	33	Soft	30-35	3-6	30-40
					Medium	25-28	2-4	25-30
					Hard	23-25	1-2	20-25
SGWS-GS88	Granite Profilling	Plastic	9(8.8)(8.5) / 4.7 8.2 / 3.6	37	Soft	25-28	1.0-2.0	15-20
					Medium	22-25	0.8-1.5	10-15
					Hard	20-23	0.5-1.0	8-12
SGWS-MS85	Marble Profilling	Plastic	8.8(8.5) / 4.7	33	Soft	30-35	3-6	35-40
					Medium	25-28	2-4	25-35
					Hard	23-25	1-2	15-25
SGWS-GM63	Granite Multi-cutting	Plastic	8.0(7.5)(7.2) / 3.6 6.3 /	37	Soft	25-28	1.0-2.0 (x Pcs №.)	15-20
					Medium	22-25	0.8-1.5 (x Pcs №.)	10-15
					Hard	20-23	0.5-1.0 (x Pcs №.)	8-12
SGWS-RC105	Reinforced Concrete	Rubber + Spring	10.5 / 4.9	40	Normal Wet Cutting	22-25	2.0-5.0	2.0-6.0
					Dry Cutting	18-22	1.0-2.5	2.0-3.0
					Underwater Cutting	12-15	1.0-2.0	2.0-3.0
					Cutting Steel Structure	12-15	0.5-1.0	0.5-1.0

Above data is used for reference;
Other size on request available.

Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.

Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.

Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.

With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
