| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
Product Description

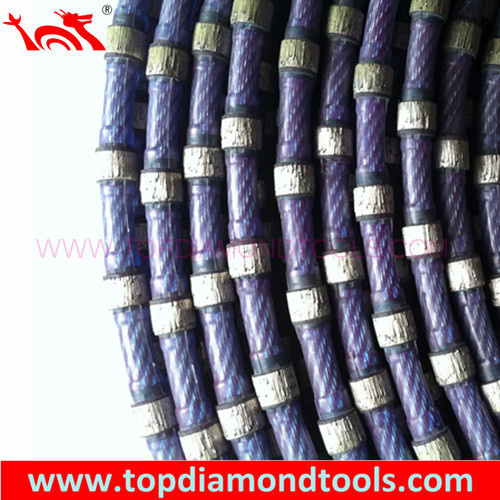

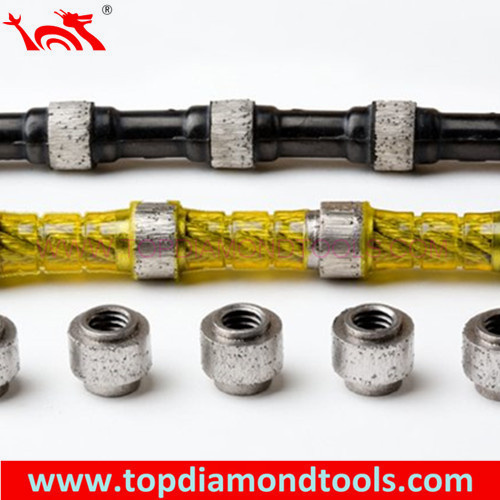

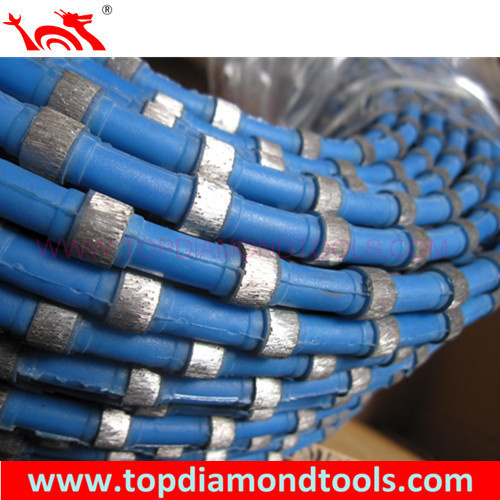

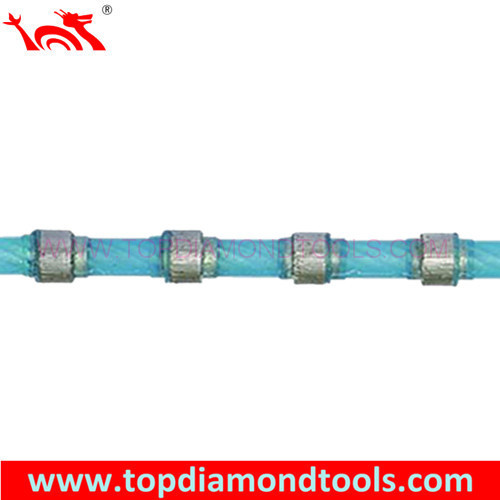

Theses kind Diamond Wire Saw can be used to dissect and get the standard marble block. They have following specialties:
· The wire allows significantly greater sawing heights than large discs. It is possible to cut large block by diamond wire;
· Thinner cutting width, and more precise;
· By virtue of its reliability, adjust the cutting techniques according to different hardness material;
· Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;
· Less pollution
Diameter
(mm) |
Code No. |
Fixing Type |
Beads No.
pcs/M |
Material type |
Linear speed (m/s) |
Sawing speed (mm/min) |
Wire life(m2/m) |
|
11.0 |
TGS11 |
Plastic |
37 |
Class 1-2
Class 3-4
Class 5 |
28-30
26-28
24-28 |
12-20
8-15
6-10 |
13-20
9-14
8-10 |
|
10.5 |
TGS10.5 |
Plastic |
37 |
|
10.0 |
TGS10 |
Plastic |
37 |
Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc.
They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc.
