| Prod Model: |
GPP8.2 |
| Usage: |
Slabs&Blocks Profiling |
| Fixing: |
Plastic |
| Customized: |
Customized |
| Condition: |
New |
| Quality: |
Good |
Product Description

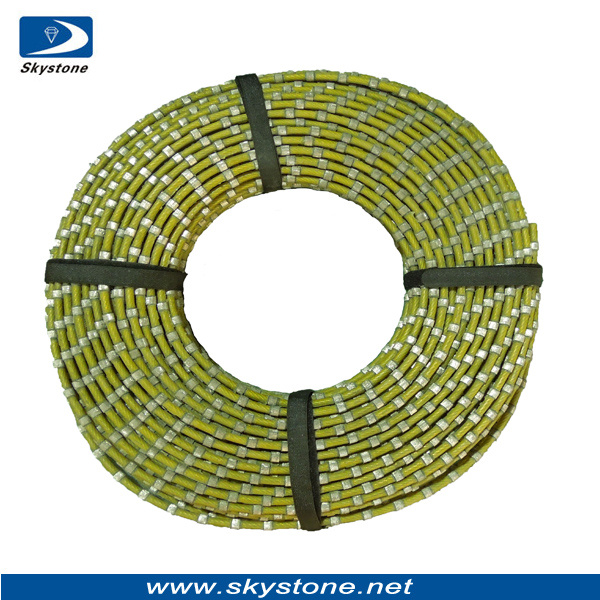

Diamond wire used for profiling is stable and highly effective. It makes smooth surface, and accurate sizes with small inter-space.
Attentions for the diamond wire cutting on stationary machines:
1. Regular inspections of diamond wire self rotation and make adjustment in time.
2. Regular inspections of diamond wire abrasive to avoid cut-in-one-side problem happen. Once it happens, make the solution straight way.
3. Regular inspections the joint, as well as the beads of two sides, if they are abrasive badly, replaces them in time.
4. The cable tension of the stationary machines should be controlled within 250-300kg(φ 4-5mmcables).
5. Linear speed is changed according to the different hardness of stones.
Class 1-2 granite: 28-30m/s
Class 3-4 granite: 26-28m/s
Class 5 granite: 24-28m/s
Marble: 30-40m/s
Abrasive stone: 30-35m/s
6. For the new wire, when start to cut, its linear speed should be slower 2-3/s than the standard mentioned above, it is good for sharpen.
7. Water supply is around 15-25L/min.
| Model No. | Diameter(mm) | Fixing Type | Beads/m | Material type | Sawing speed(m2/min) | Lifetime(m2/m) | Line speed(m/s) |
| GPP8.8 | φ 8.8 | Plastic |
37 | Class1-2
Class3-4
Class4-5 | 12-20
8-15
7-10 | 12-20
10-15
7-10 | 28-30
26-28
24-28 |
| GPP8.2 | φ 8.2 | Plastic |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
