| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
Product Description

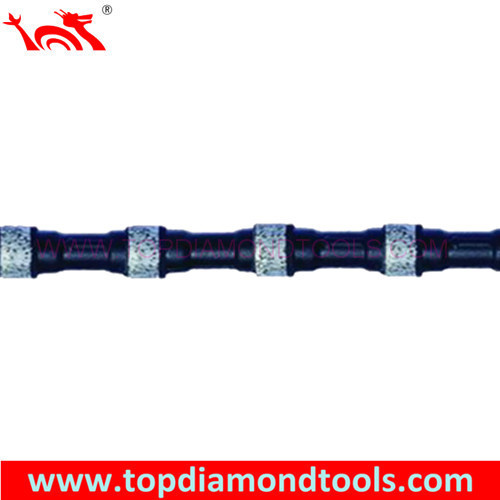

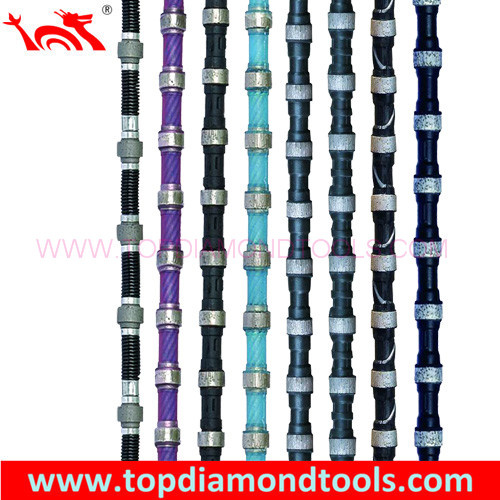

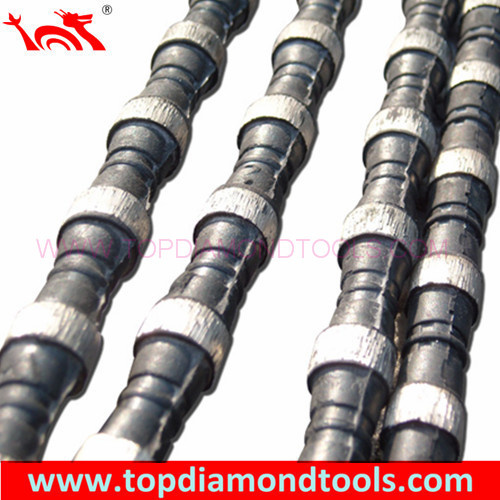

Diamond Wire For Granite Quarry Cutting
Features:
Good choice for granite quarry
Rubber coating ensure the wire in good condition before the diamond beads wear out
Extract large dimension blocks with low cost
Germany cable guarantee for no break during normal work.

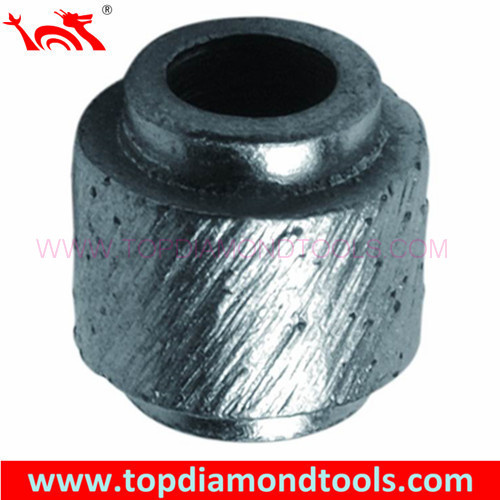

Supply different hardness of beads HRB (95-105)
When place order of diamond wire saw please specify us as follows:
1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
|
Item No. |
Diameter (mm) |
Fixing Type |
Beads/M |
Material type |
Sawing Speed (mm/min) |
Lifetime (m2/m) |
Linear Speed (m/s) |
|
TGQ11.5 |
11.5 |
RUBBER |
40 |
Class1-2
Class 3-4
Class 5 |
12-18
10-15
6-10 |
15-25
12-18
7-12 |
28-33
28-33
28-30 |
