| Prod Model: |
Concrete pulley |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
200mm/250mm/300mm/350mm |
| Material: |
Aluminium |
| Application: |
Diamond Wire |
Product Description
Shaft diameter:
40mm
Our company also provide all the accessories for diamond wire saw cutting, Which can satisfied all the needs of our client.
Advantage:
1.Dust proof
2.Water proof
3.HIgh pressure resistence
4.Stable working performance
Product description:

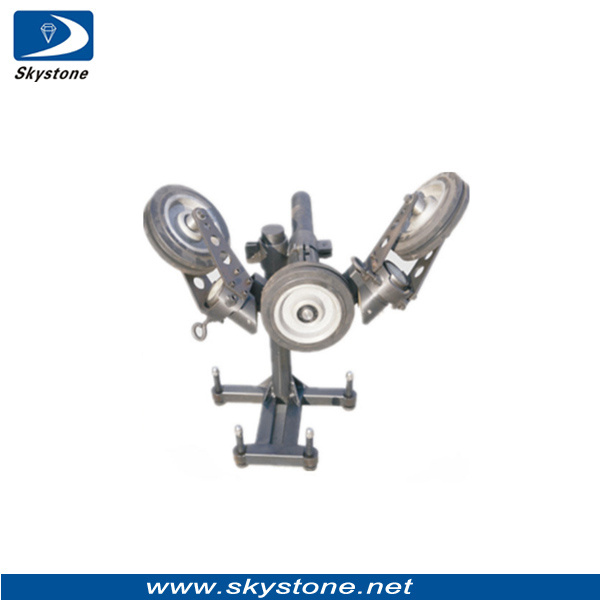

Wire guide pulleys is commonly used component when wire passing is required ,it can be used in concrete cutting wire saw machine like hilti .The bearing could be changed as you want ,the wheel will be rubbered well as we sell it .Thus the sliding friction has been converted to the static friction .But at the start and stop ,in order to overcome the inertia ,there will be a partial sliding friction .The surface polish degree of the porcelain ring reaches Ra0.2;the beating during rotation is under 0.15.We select the 99% AL2O3 as the material with the hardness of HRA88 and the density of 3.85.
| Pulley diameter: | 200mm | 250mm | 300mm | 350mm | 400mm |
| Bearing change | yes | yes | no | no | no |
| Rubbered | yes | yes | yes | yes | yes |
| Material | aluminum | aluminum | aluminum | aluminum | aluminum |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
