| Prod Model: |
MQS110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
8.8-11mm |
| Graininess: |
100# |
| Shape: |
Round |
| Manufacturing Arts: |
Cutting |
| Usage: |
Stone Cutting |
| Brand: |
DIAMOND |
| Customized: |
Customized |
| Thickness: |
2mm |
| Kind: |

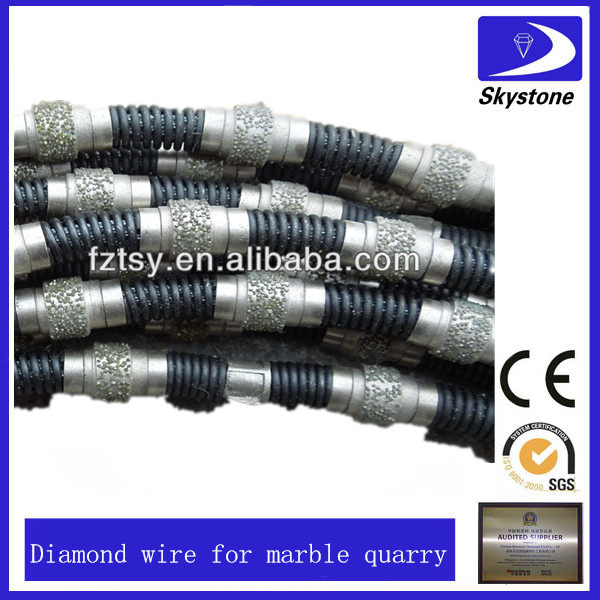

Diamond Wire |
| Saw Blade External Diameter: |
10.5mm-11.0mm |
| Specification: |
8.8mm |
Product Description
Company Instruction:
Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.
Advantage:
The diamond wire quarrying technique can highly improve the quarrying efficiency, and get benefits of reduction in energy and water consumption and operator costs. The large dimension blocks quarry also becomes easily. At the same time, it can be operated safely and environment friendly.
Specification:
Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed (m2/h) | Life time (m2/m) | Line speed (m/s) | Remark |
| MQS11 | 11 | Spring | 28/30/32 |
class A
white crystalline travertine
class B
compact
class C-D
coloured abrasive |
10-20
8-16
5-8 |
30-55
15-35
15-25 |
35-40
35-40
35-40 |
sintered |
| MQR11 | 11 | rubber | 40/36 |
| MQS11E | 11 | spring | 28/30/32 | A-D | 15-25 | 20-30 | 35-40 | electroplated |
| DMQS11 | 11 | spring | 30 | A-D dry cutting | 7-12 | 10-15 | 35-40 | sintered |
| DMQS11E | 11 | spring | 30 | A-D dry cutting | 7-12 | 10-15 | 35-40 | electroplated
|
Kindly Noted, when place order please inform the following:
Diameter of the Wire
Wire Type (rubber or rubber+spring)
Material Type (Hard, Medium, Soft, or Abrasive)
Quantity (How many Meters)
Wire Saw Machine Power (How many KW or HP of the motor)
Expected cutting speed and life(M2)
Expected shipping date
Skystone provide worlwide after sale service.
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
