| Prod Model: |
SY-ZH-001(Diamond Wire for Concrete) |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Product Name: |
Diamond Wire Saw |
| Cutting Style: |
Wire Saw Cutting Style |
| Wire Saw: |
Different Size |
| Diamond Quality: |
Premium Diamond |
| Saw Features: |
High Tension & Efficiency |
| Beads/Meter: |
40 Pieces |
| Fixing Method: |
Rubber & Spring |
| Wire Saw Packaging: |
Poly Bag, Carton, Plywood |
| Saw Blade External Diameter: |
Bead Diameter 11.5mm 10.0mm |
Product Description

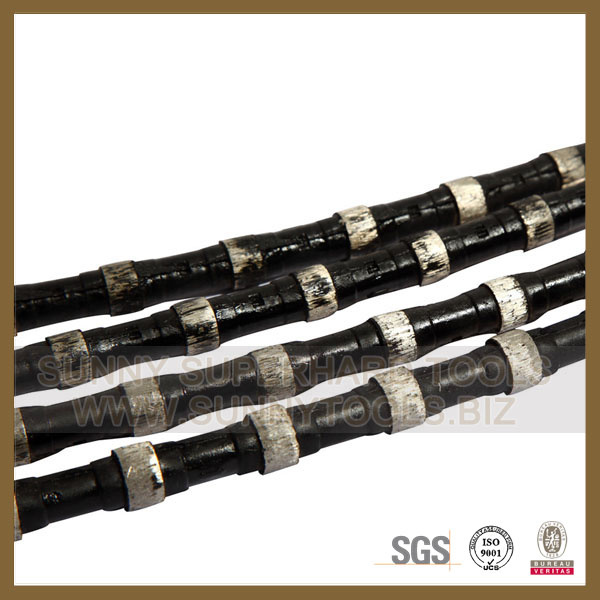

Diamond Wire Saw for Cement Concrete Cutting UseDiamond Wire Saw, Sintered wire saw, diamond wire, multi diamond wire saw fixed by Rubber, Plastic, Spring with Sintered Diamond Wire Saw Bead or Electroplated Diamond Wire Saw Beads, to be widely used for the Stone Quarry, Stone Block, Stone Slab, as the Granite, Marble, Limestone, Travertine, Sandstone, Basalt, Lava Stone etc, and Reinforce Concrete, application for the Quarry cutting, Block and Slab squaring and contouring, as well as special application of cutting reinforced concrete.1:Easy Manipulation and Low Cost 2:Low power consume and less raw material waste3:Flexibility,no limited for the size of work place4:Strict control the quality of raw materials, 5:High temperature resistance, Corrosion resistance,Tensile properties6:Automatic production ensures stable quality and performance.7:Safe,high efficiency and environment protecting.8:According to the usage difference,diamond wire saw mainly used for reinforced concrete cutting,for quarrying,for profiling,for slab cutting,for multi wire saw cutting.
| BASIC INFO |
| Brand | SUNNY |
| Product Name | Diamond Wire Saw for Cement Concrete Cutting Use |
| Item No. | SY-DSB-1009 |
| Diameter | 7.2mm----11.5mm |
| Material | Diamond |
| Origin | Quanzhou, Fujian, China |
| Application | Used for Stone, Concrete etc |
Quarry wire saw
1. safe and eco-friendly.
2. For granite quarry, we recommend rubber wire, it can protect the wire rope and increase the wire's strength.
3. Spring and rubber diamond wire saw is widely used for marble quarry.| Diameter (mm) | Connection | Beads/meter | Wire Speed(m/s) |
| φ11 | rubber | 40 | 20~30 |
| φ11.5 | rubber | 40 | 20~30 |
| φ11 | spring | 28/30/32 | 25~35 |
| rubber | 40 |
| φ11 | spring | 32 | 25~35 |
Squaring,Profile Wire Saw
1.The use of diamond wire for stone profiling, with narrow kerf width and high quality cable insure less breakage and good tension, bring better performance in tough environment.
2.This product works in low noise, safe and eco-friendly.| Diameter (mm) | Connection | Beads/Meter | Wire Speed(m/s) |
| φ10 | Plastic | 37 | 20~30 |
| Rubber | 40 |
| φ10.5 | Plastic | 37 | 20~30 |
| Rubber | 40 |
| φ11 | Plastic | 37 | 20~30 |
| Rubber | 40 |
| φ10 | Plastic | 32 | 25~35 |
| φ10.5 |
| φ11 |
Multi-Wire Saw
Suitable for cutting the different kinds of large granite or sandstone.
Advantage: high cutting efficiency, get the even and smooth slab, low power consumption and less materials waste.| Diameter (mm) | Connection | Beads/Meter | Wire Speed(m/s) |
| φ7.2 | Plastic | 37 | 20~25 |
| φ8.2 |
Concrete Wire Saw
1. Widely used for demolition of house, bridge, big post, cement pipes and under water buildings.
2. Advantage: cutting direction can be controlled, low vibration, low noise, no dust, control cutting at a far distance.| Diameter (mm) | Connection | Beads/meter | Wire Speed(m/s) |
| φ10.2 | Rubber+ Spring | 40 | 20~25 |
| φ10.5 |
| φ11 |
| φ11.5 |
