| Prod Model: |
cnc-3000 |
| Name: |
Stone Cutting Machine (Diamond Wire Saw Machine) |
| Function: |
Cutting Marble, Granite, Slate, Nature Stone, etc |
| Max Processing Size: |
3000*2000*1500mm |
| Main Motor: |
7.5kw |
| Gross Motor: |
11kw |
| Outline Dimension: |
6500*6300*3800mm |
| Gross Weight: |
5000kg |
| Water Consumption: |
4m3/H |
| Control Type: |
CNC |
| Certificates: |
Ce, SGS, ISO9001 |
| Type: |
CNC Cutting Machine |
| Usage: |
Natural Stone, Block |
| Application: |
Stone Machinery |
| Source Voltage: |
380V |
| Automation: |
Automatic |
| Certification: |
SGS |
Product Description

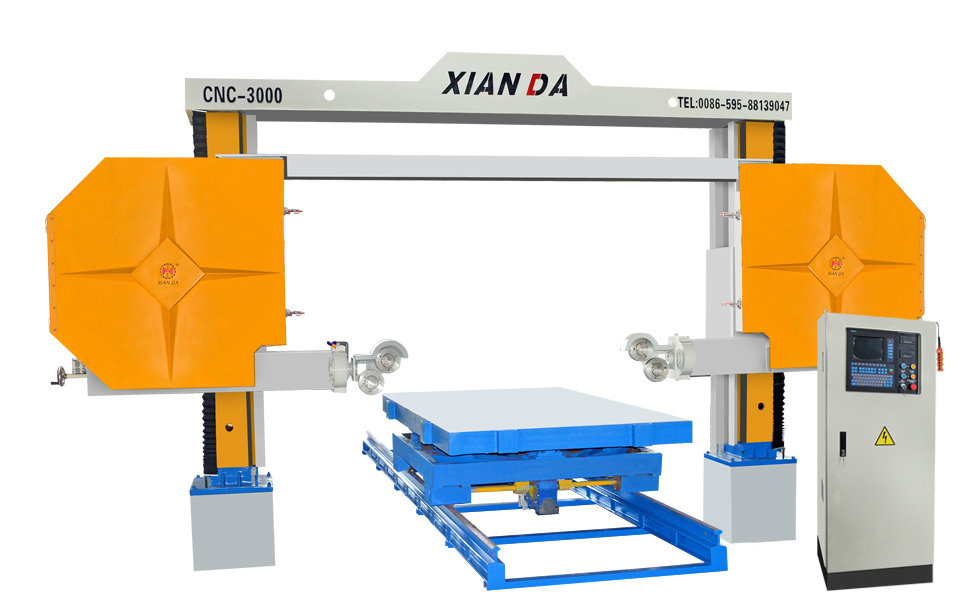

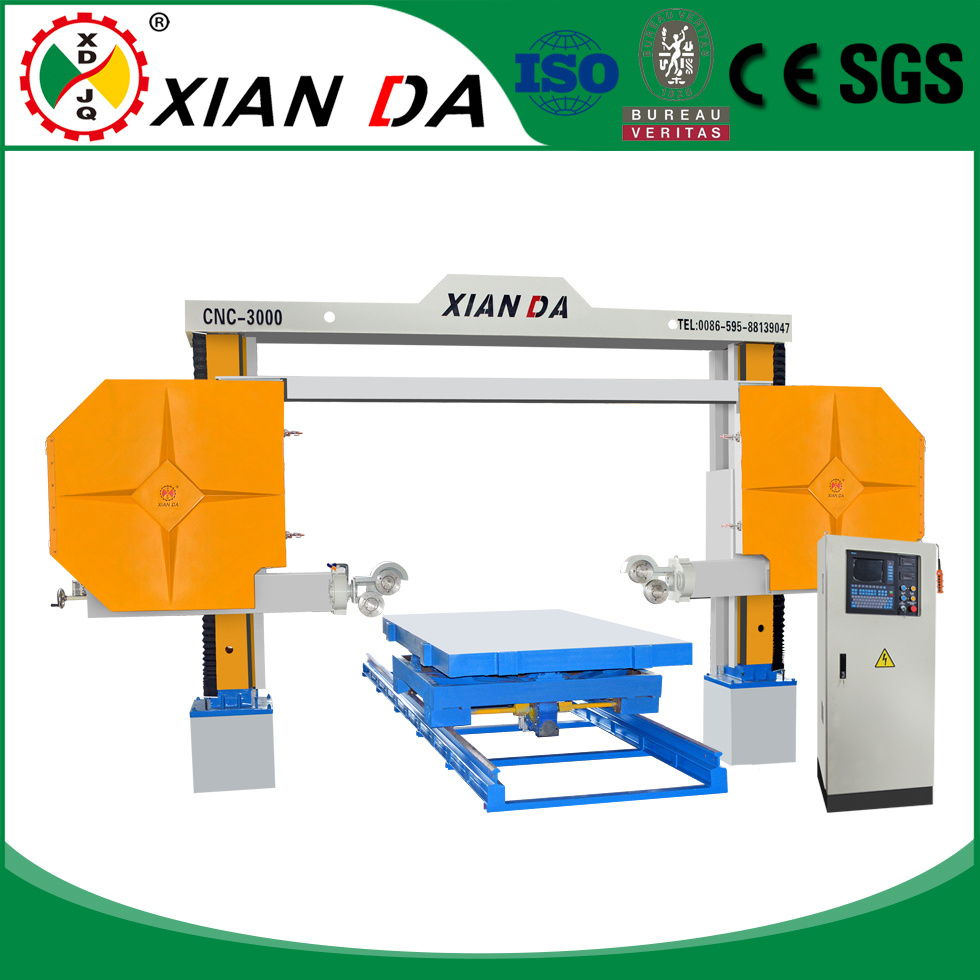

Marble Granite CNC Diamond Wire Stone Cutting Machine

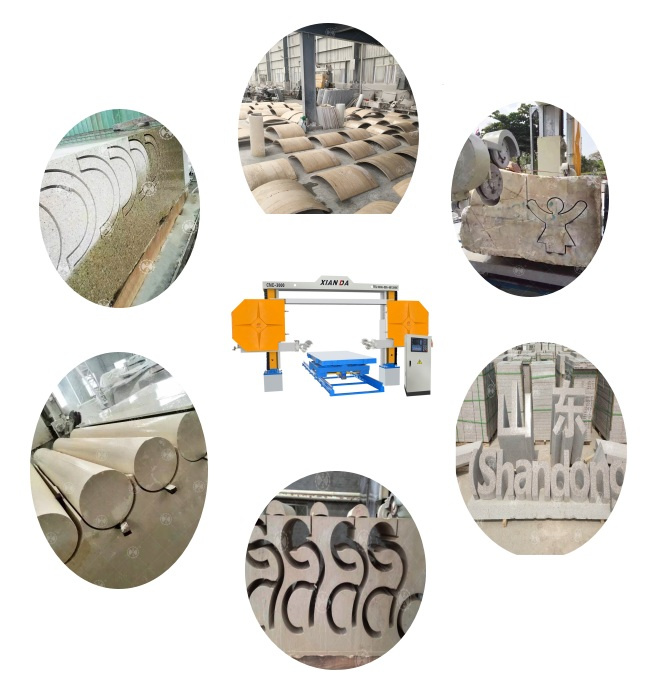

ApplicationCNC-2000/2500/3000 Mono wire cutting machine ( rope saw ) function: Cutting column slabs, semi circular slabs, English letters, and other diversified compllicated special shape. Materials the wire saw machine can cut include marble, granite, natural stone etc.
Wire saw machine (Rope saw), mono wire cutting machine, cutting column / cylinder slabs.
Marble Granite CNC Diamond Wire Saw Stone Cutting Machine CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension.
Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine, mono wire cutting machine
Technical Parameter | Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
| Max processing size (L*W*H) | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
| Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
| Main motor | Kw | 7.5 | 7.5 | 7.5 |
| Gross motor | Kw | 11 | 11 | 11 |
| Outline dimension(L*W*H) | mm | 6500*6300*3800 | 7000*6300*3800 | 7500*6300*3800 |
| Gross weight | Kg | 5000 | 5500 | 6000 |
| Water consumption | M3/h | 4 | 4 | 4 |
Xianda machinery
Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines. Exhibition
Our after-sale service Team
We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you. Other stone cutting machines we produce: Diamond wire saw machine, cutting machine, bridge saw and a series of stone machine for special shape processing.
For more information, you may refer our home page: HTTP: //chinaxianda. En. Made-in-China. com/
FAQ
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
2. Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
3. Delivery time
Based on order quantity, normally three weeks against payment.
4. Warranty
All the machines have one year warranty.
5. After Services
Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
6. Contact
Office Cell: +86-13959953930
Web: HTTP: //chinaxianda. En. Made-in-China. com/
Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.
With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.
Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".
Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
