| Prod Model: |
Diamond Wire Saw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
8.0 - 11.5 |
| Beads/Meter(PCS): |
37-40 |
| Fixing Method: |
High Quality Rubber /Plastic |
| Application: |
for Granite Quarry/Squaring/Profiling |
| Line Speed: |
24 - 28 |
| Cutting Speed: |
3 - 8 |
| Wire Life: |
8 - 20 |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Grade: |
a-Grade Diamond Wire Saw |
| Delivery Detail: |
7 - 15 Days |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Cutting |
| Usage: |
Stone Cutting |
| Graininess: |
Success Formula for Stone Cutting |
| Thickness: |
Different Diameter Have Different Thickness |
| Shape: |
Diamond Wire Saw |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
| Specification: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
Product Description

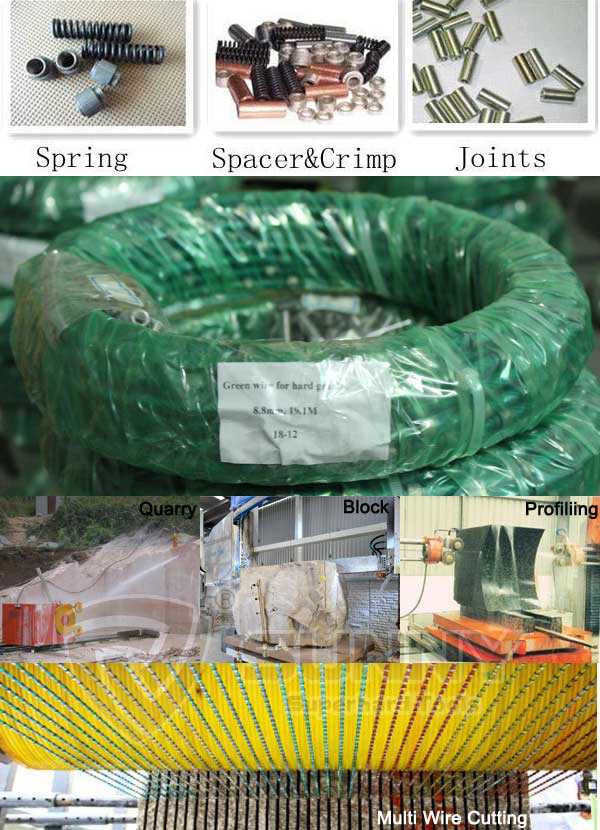

DESCRIPTIONDiamond wire is widely use for different hardness marble granite limestone quarry and block to get various size of slabs and arc board and cylinder cutting. Also widely use for construction for concrete cutting. Diameter from 7.2mm to 11.0mm, use sintered and electroplated technology.
FEATURE1. By virtue of its reliability, adjust the cutting techniques according to different stone material;
2. Less noise, less pollution, noise generated by diamond wire saw is much less than discs cutting
SPECIFICATIONAs below is the specification of diamond wire for granite/marble squaring for more information about other wire saw please inform us the E-mail or chat manager.
| Bead Diameter (mm) | Bead/meter | Application | Coating |
| Ø10.5 | 37 | Granite /marble
squaring | High Strength Plastic/Rubber |
| 40 |
| Ø11.0 | 37 |
| 40 |
Parameters
| Application | Wire Speed (m/s) | Cutting Speed (m²/h) | Life (m²/m) |
| Soft granite | 28-30 | 1.5-3.0 | 15-25 |
| Medium hard granite | 23-26 | 1.0-2.5 | 12-15 |
| Hard granite | 20-25 | 0.5-1.0 | 8-12 |
| Application | Wire Speed (m/s) | Cutting Speed (m²/h) | Life (m²/m) |
| Soft marble | 30-35 | 3-6 | 30-40 |
| Medium hard marble | 25-28 | 2-4 | 25-30 |
| Hard marble | 23-25 | 1-2 | 20-25 |

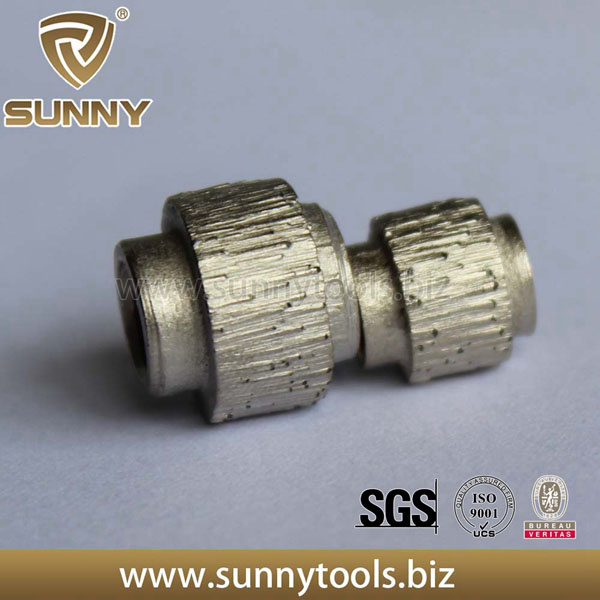

Bead Specification
| Bead Diameter (mm) | Working Layer Height (mm) | Support length (mm) | Bead Type |
| Ø10.5 | H6.0-6.4 | 10.0 | Sintered |
| Ø11.0 | H6.2-6.4 | 10.0 | Sintered |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
